Philips 19HFL3233D/10 - Block Diagrams; Wiring Diagram 19

Block Diagrams
EN 37TPM8.2E LA 9.
2011-Jun-01
9. Block Diagrams

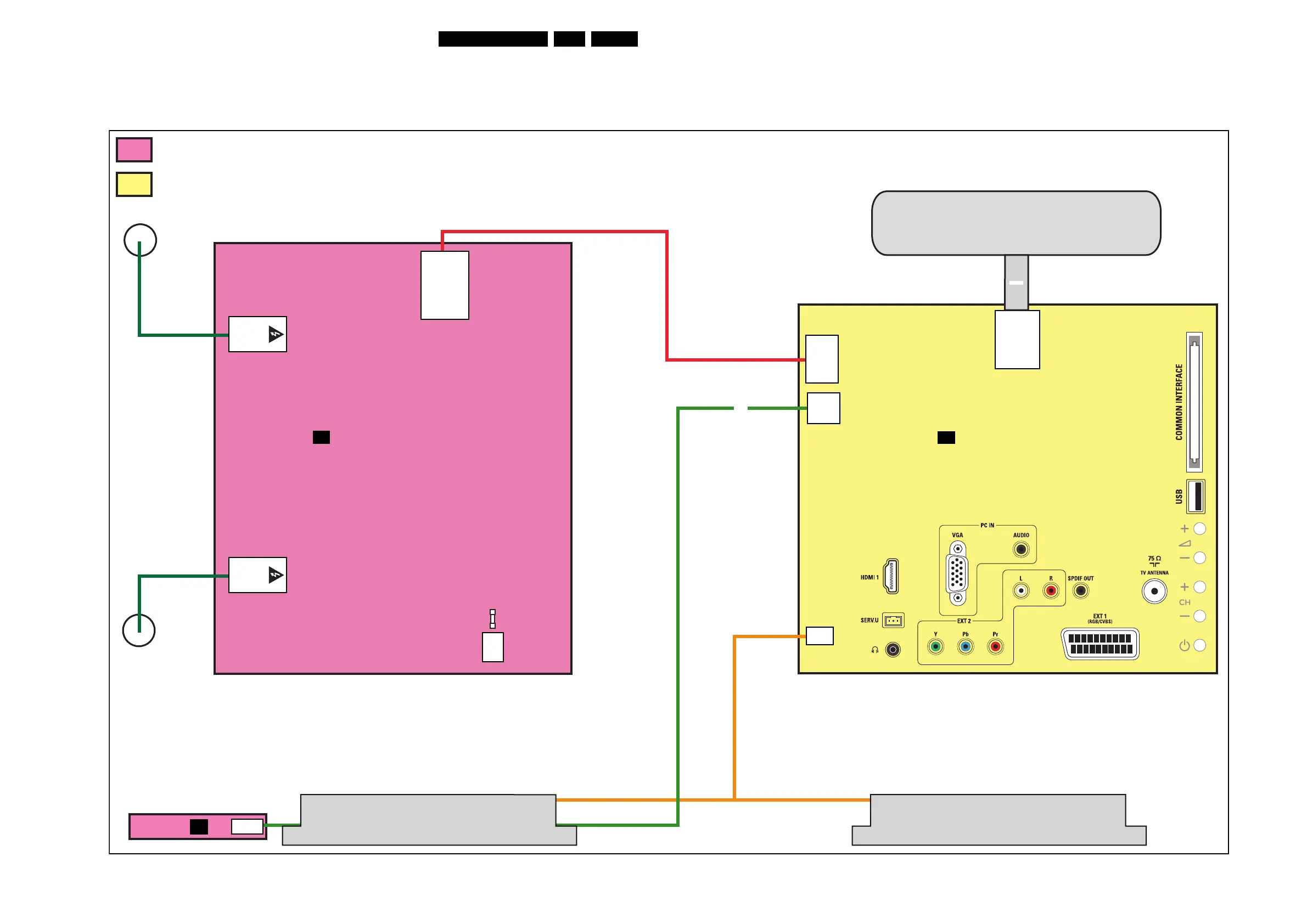

9-1 Wiring diagram 19"
19120_400_110519.eps
110526
Board Level Repair
Component Level Repair
Only For Authorized Workshop
WIRING DIAGRAM 19" (Golden horse)
SSB
(1053 )
B
MAIN POWER SUPPLY
(1054)
LCD DISPLAY
(1050)
CN9102
1. BL-ON/OFF
2. BRIGHTNESS
3. +5V3
4. +5V3
5. GND
6. GND
7. GND
8. +18V
9. +18V
10. -
11. Standby
A
CN409
1. LVDS_VDD
2. LVDS_VDD
3. LVDS_VDD
4. LVDS_VDD
......
25. O0P
26. O0N
27. GND
28. -
29. -
30. GND
CN701
13. -
12. STB_PWR5V
11. STB_PWR5V
10. PWR_ON
9. PWR_18V
8. PWR_18V
7. GND
6. GND
5. GND
4. PWR_12V
3. PWR_12V
2. BRIGHT_ADJ
1. INVERTER_ON_OFF
CN9901 1. N 2. L
IR/LED BOARD
(1056)
CN201
5P
J
TO
BACKLIGHT
CN8103
1. HV2
2. HV2
3. HV2
DANGEROUS
HIGH VOLTAGE
CN8102
1. HV2
2. HV2
3. HV2
DANGEROUS
HIGH VOLTAGE
TO
BACKLIGHT
CN601
1. ROUT-
2. ROUT+
3. LOU T-
4. LOUT+
CN402
7. Key2
6. Key1
5. DV33SB
4. GND
3. RC6
2. LED_G
1. LED_R
8402
8408
RIGHT SPEAKER LEFT SPEAKER
