Precautions, Notes, and Abbreviation List
EN 6 TPM8.2E LA3.
2011-Jun-01
The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit o
f the serial nu
mber, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial n
u
mber contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be
used,
so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.
Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to
the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.
10000_053_110228.eps
110228

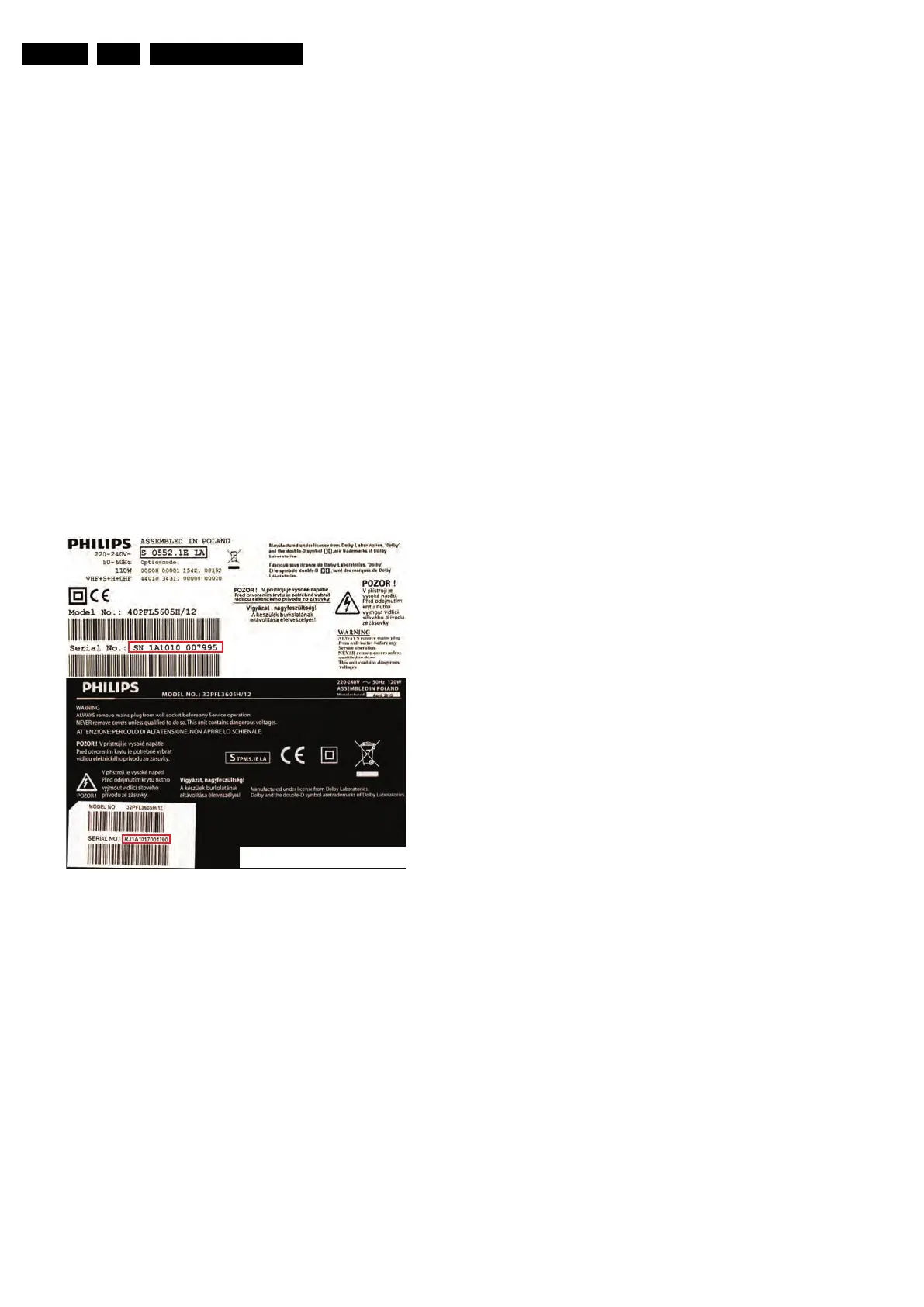

Figure 3-1 Serial number (example)
3.3.7 Board Level Repair (BLR) or Component Level Repair
(CL
R)
If a board is defective, consult your repair procedure
to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board shou
ld be
exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!
3.3.8 Practical Service Precautions
• It makes sense to avoid exposure to electrical shock.
Wh
ile some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
• Always respect vo
ltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.
3.4 Abbreviation List
0/6/12 SCART switch control signal on A/V
board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3
for
m
at
AARA Automatic Aspect Ratio Adaptation:
algorithm that
adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio
ACI Automatic Channel Installation:
algorithm tha
t installs TV channels
directly from a cable network by
mea
ns of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control
signal u
s
ed to tune to the correct
frequency
AGC Automatic Gain Control: algorithm that
controls the vid
eo inp
ut of the feature
box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts
aspect ratio to
remove
horizontal black
bars without discarding video
information
ATSC Advanced Television Systems
C
ommittee
, the digital TV standard in
the USA
ATV See Auto TV
Auto TV A hardware and software control
system that measures pictu
re content,
and adapts image parameters in a
dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound
carrier distance is 5
.
5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard
C
ommittee
. Multiplex FM stereo sound
system, originating from the USA and
used e.g. in LATAM and AP-NTSC
countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:
remote control bus on HD
MI
connections
CL C
onstant Level: audio output to
connect with an external amp
l
ifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:
man
i
pulates steepness of chroma
transients
CVBS Composite Video Blanking and
Synchroniza
tion
DAC D
igital to Analogue Converter
DBE Dynamic Bass Enhancement: extra
low frequency a
m
plification
DCM Data Communication Module. Also
referred to as System Card or
Smartcard (for iTV).
DDC See “E-DD
C”
D/K Monochrome TV system. Sound
carrier distance is 6
.
5 MHz
DFI Dynamic Frame Insertion
