Philips 21PT5027/69 - Technical Specifications; Side and Rear Connections

Technical Specifications, Connections, and Chassis Overview
EN 2 TC8.1A CA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Side and Rear Connections
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : CRT, Real Flat
Screen size : 21” (55 cm), 4:3
Tuning system : PLL
Presets/channels : 100
Tuner bands : Full-Cable
TV colour systems : PAL B/G, D/K, I
(all models)
: SECAM B/G, D/K
(only /56, /63, and /69)
Video playback : NTSC, PAL
(all models)
: SECAM
(only /56, /63, and /69)
Aerial input : 75 ohm, F-type
1.1.2 Sound
Sound systems : Stereo BTSC
Maximum power (W
RMS
) : 1 x 5 or 2 x 5
(depending on model)
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 100 - 240
(/56 and /94)
: 180 - 240
(/63, /69, and /79)
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈ 70
- Stand-by (W) : < 7
1.2 Side and Rear Connections

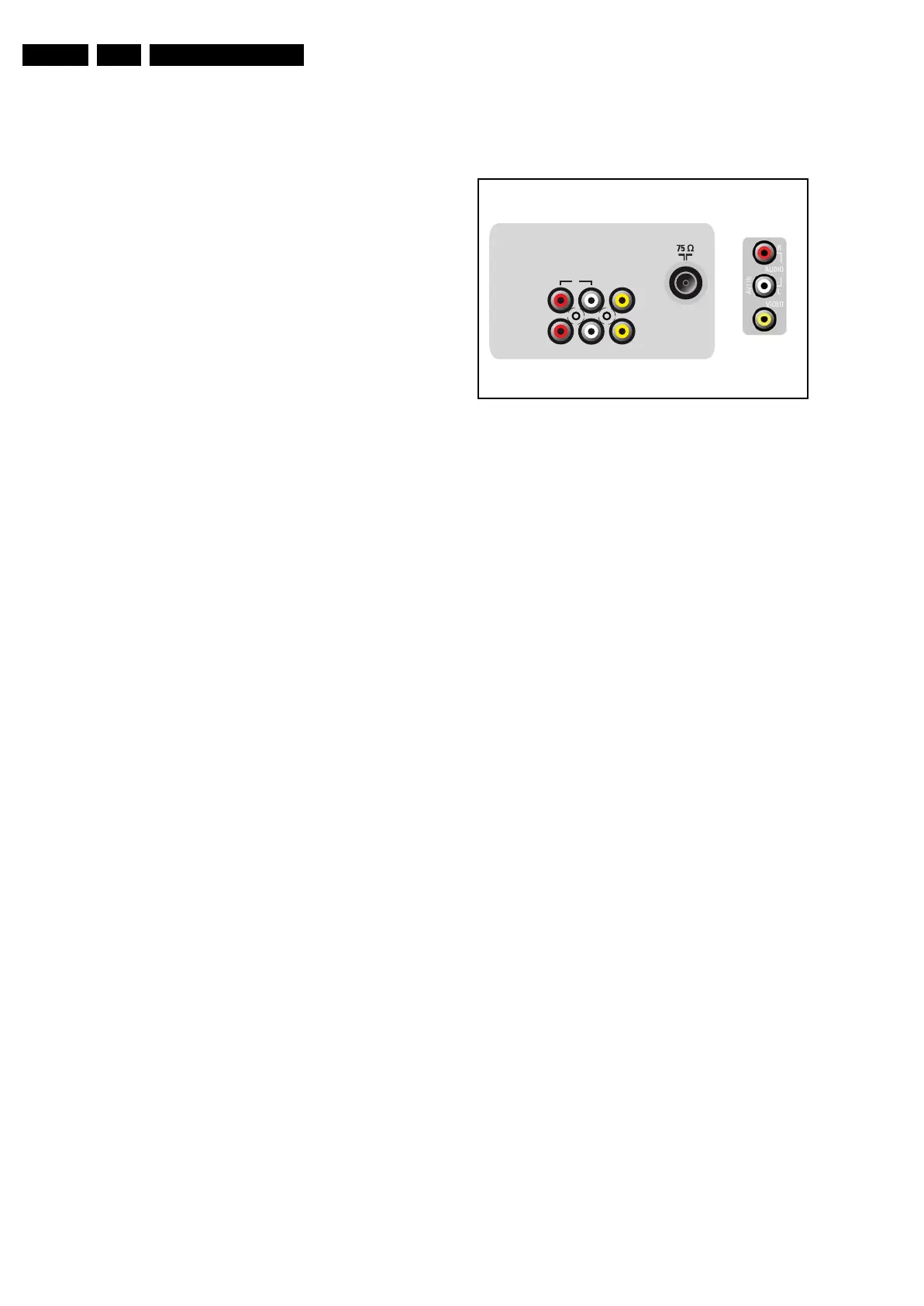

Figure 1-1 Rear and Side I/O connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Rear I/O Connections
AV In
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
AV Out
Ye - Video (CVBS) 1 V_pp / 75 ohm kq
Wh - Audio - L 0.5 V_rms / 10 kohm kq
Rd - Audio - R 0.5 V_rms / 10 kohm kq
Aerial In
- F-type Coax, 75 ohm D
1.2.2 Side I/O Connections
AV In
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
L
R
VIDEO
AUDIO
AV1 in
Monitor out
H_17130_009.eps
240407
