Philips 22PFL3606/77 - Page 3

Technical Specs, Diversity, and Connections
EN 3TPM8.3L LA 2.
2011-Sep-30
2.3 Connections

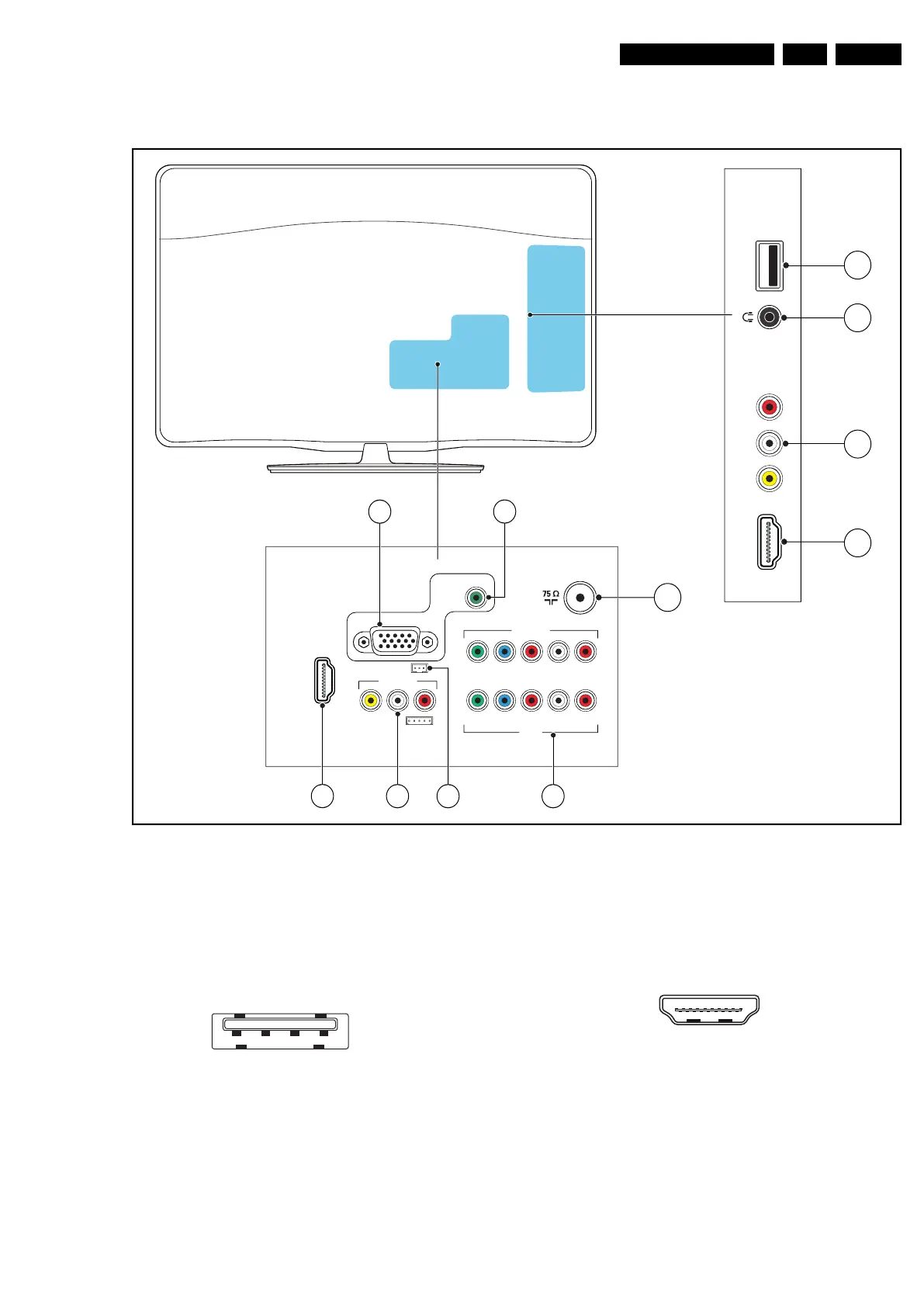

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - USB 2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
2 - Head phone (Output)
Bk - Head phone 80 - 600 Ω / 10 mW ot
3 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 Ω jq
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
4 - HDMI: Digital Video, Digital Audio - In
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
