Philips 22PFL3606/77 - AV1 (Side) & Audio-In Multiplexer

Circuit Diagrams and PWB Layouts
EN 43TPM8.3L LA 10.
2011-Sep-30

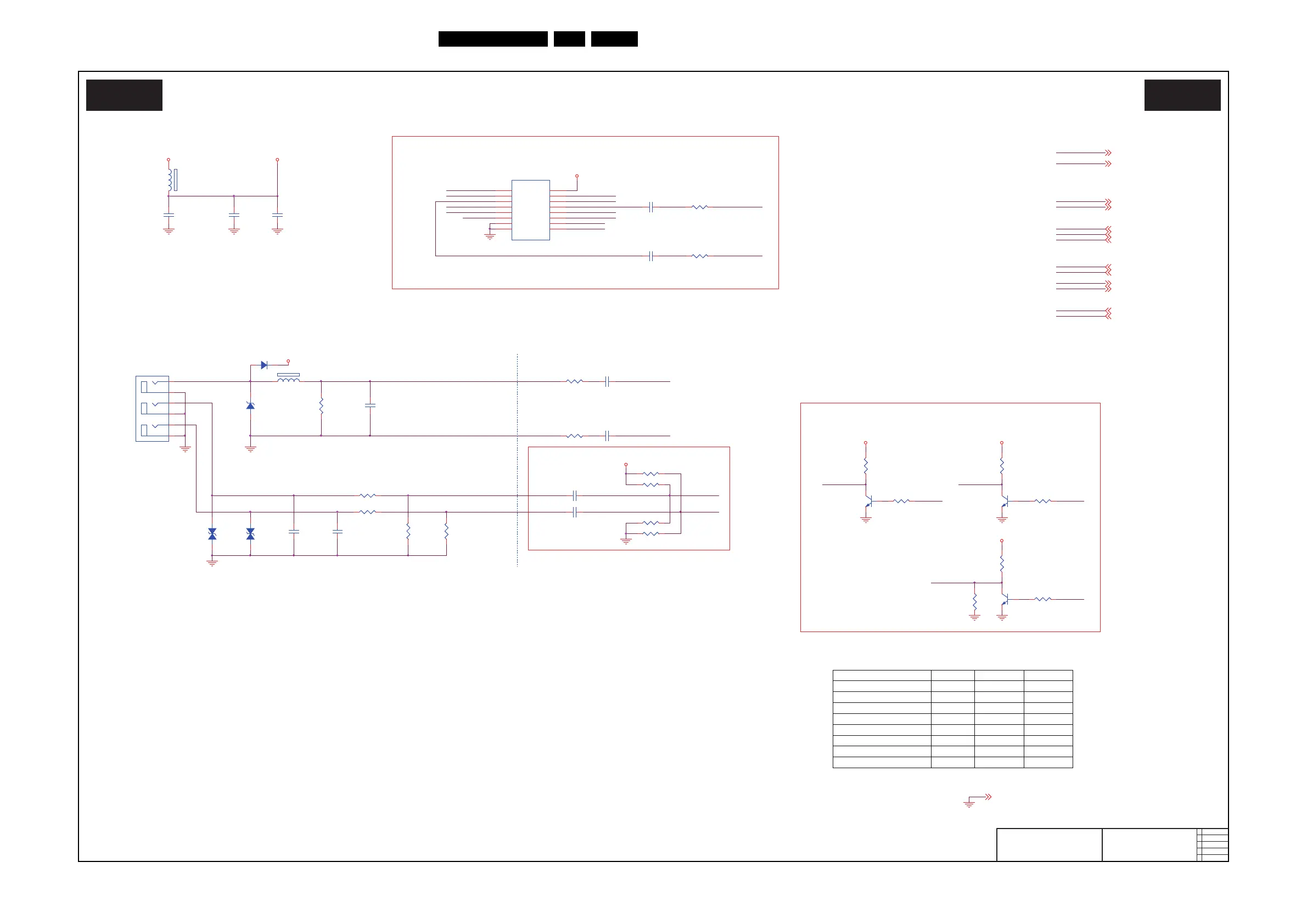

AV1 (side) & Audio-in Multiplexer
19190_508_110908.eps
110926
AV1 (side) & Audio-in Multiplexer
B06 B06
2011-09-01
2
715G5151
AV1 (side) &
Audio-in Multiplexer
AIN0_R_AADC
Close to RCA
0
R101 0R
0
AIN_CTL2
FB114 120R/3000mA
1 2
1
AIN_CTL0 4
(Reserved)
Close to SoC
Audio-in MUX
1
AV1_CVBS 4
R109
5.1K 1%
EXT_L_IN
R102 30K
Q101
PMBS3904
R125
4K7 1/16W 5%
CVI_L_IN1
AMUX_5V
EXT_R_IN 10
CVI_R_IN1
R103
75R 1/16W 1%
AUD_LOUT
AV1_LIN
MUX_CTLA
R106 10K 1/16W 5%
AIN_CTL1
AV1_LIN
C111
10U 16V
1
R127
4K7 1/16W 5%
AV1_CVBS
AIN_CTL1 4
EXT (Rear)
Q102
PMBS3904
C103
100N16V
AIN0_L_AADC
U102
CD4052BPW
2
1
7
6
9
10
3
12
11
8
4 13
14
16
15
5
Y2
Y0
VEE
INH
CTL_B
CTL_A
Yout
X0
X3
VSS
Y3 Xo ut
X1
VDD
X2
Y1
C107
47N16V
0
0
0
MUX_CTLA
AIN_CTL1
AIN0_R_AADC
1
VGA_R_IN
R112 470K 1/16W 5%
C109
10N 50V
C105
10U 16V
Audio-in MUX CTRL
AMUX_5V
CVBS_COM 4
CVI_L_IN1 10
EXT_R_IN
AIN_CTL2
VGA_R_IN
1
R131
NC/4K7 1/16W 5%
VGA_R_IN 11
1
AIN0_R_AADC 4
A
B
C
CN121
RCA JACK
2
1
4
3
5
6
AIN_CTL0
AIN0_L_AADC 4
R113 470K 1/16W 5%
0
C110
10N 50V
ZD103
NC/VPORT
0603100KV05
NC/VPORT
0603100KV05
1 2
0
AUD_ROUT
0
AIN_CTL1
CVI_R_IN1
VGA_L_IN
0
FB101
120R/3000mA
12
EXT_R_IN
C108
47N16V
AMUX_5V
C102
100N16V
CVI1
AIN0_L_AADC
C112
10U 16V
1
Close to IC
AIN_CTL2 4
R132
NC/10K 1/16W 5%
R128
10K 1/16W 5%
Audio-in MUX Select Table
AV1 (Side)
VGA_L_IN
1
(Reserved)
0
5V_SW
MUX_CTLB
R126
10K 1/16W 5%
AIN_CTL0
AIN_CTL2
CVBS_COM
MUX_CTLC
AMUX_5V
EXT_L_IN
CVBS-in
R111 470K 1/16W 5%
Q104
NC/PMBS3904
0
0
GND 4,5,6,7,8,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24
AIN_CTL0
AV1_CVBS
R104
68R 1/16W 5%
C101
10uF 10V
1
AV1_RIN
AMUX_5V
PC Line-in
CVBS_COM
CVI_L_IN1
AMUX_5V
AMUX_5V
AV1 Input (Side)
1
(Reserved)
CVI_R_IN1 10
R110 470K 1/16W 5%
AV1_RIN
ZD102
1 2
R108
5.1K 1%
1
(Reserved)
ZD101
NC/UDZSNP5.6B
1 2
MUX_CTLC
R122
0R05 1/16W
R105
0R05 1/16W
VGA_L_IN 11
C106
NC/220pF 50V
R/L-in
D102NC/BAS316
1 2
AK
MUX_CTLB
C104
10U 16V
R107 10K 1/16W 5%
EXT_L_IN 10
1
