11. Styling Sheets

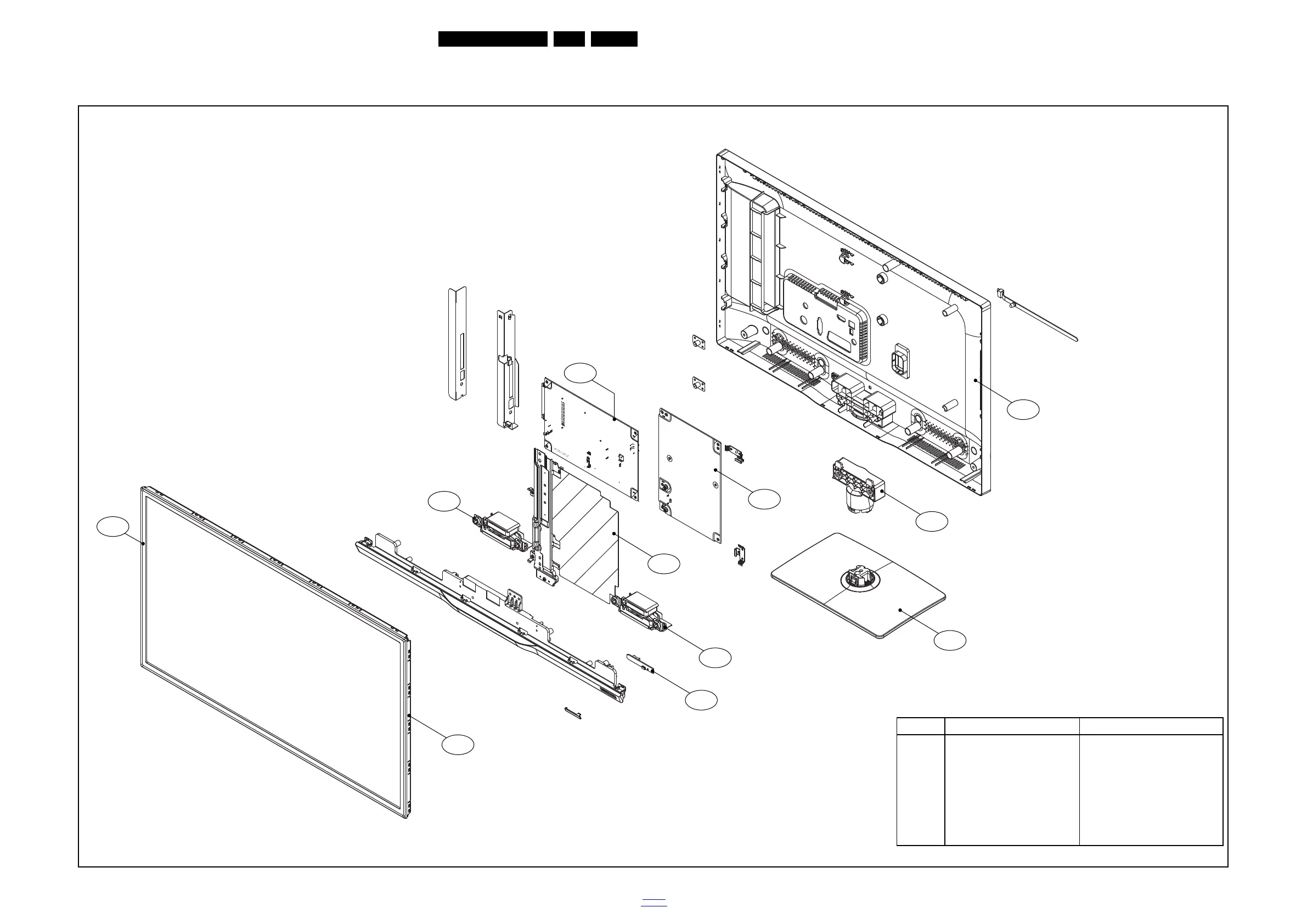

11.1 4x09 series 24"
19660_800.eps
4x09 series 24"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
Pos No. Description Remarks
0030 Bezel
0040 Rear cover
0095 V0 Sheet
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1176 Remote control Not displayed
1184 Speakers
5050 Base Assy
5090 Stand Assy
0030
1184
5050
5090
0095
1184
0040
1054
1056
1050
1053
