Styling Sheets
EN 85TPS14.1A LA 11.
2014-Oct-24
back to
div.table
11.3 4509 series 40"

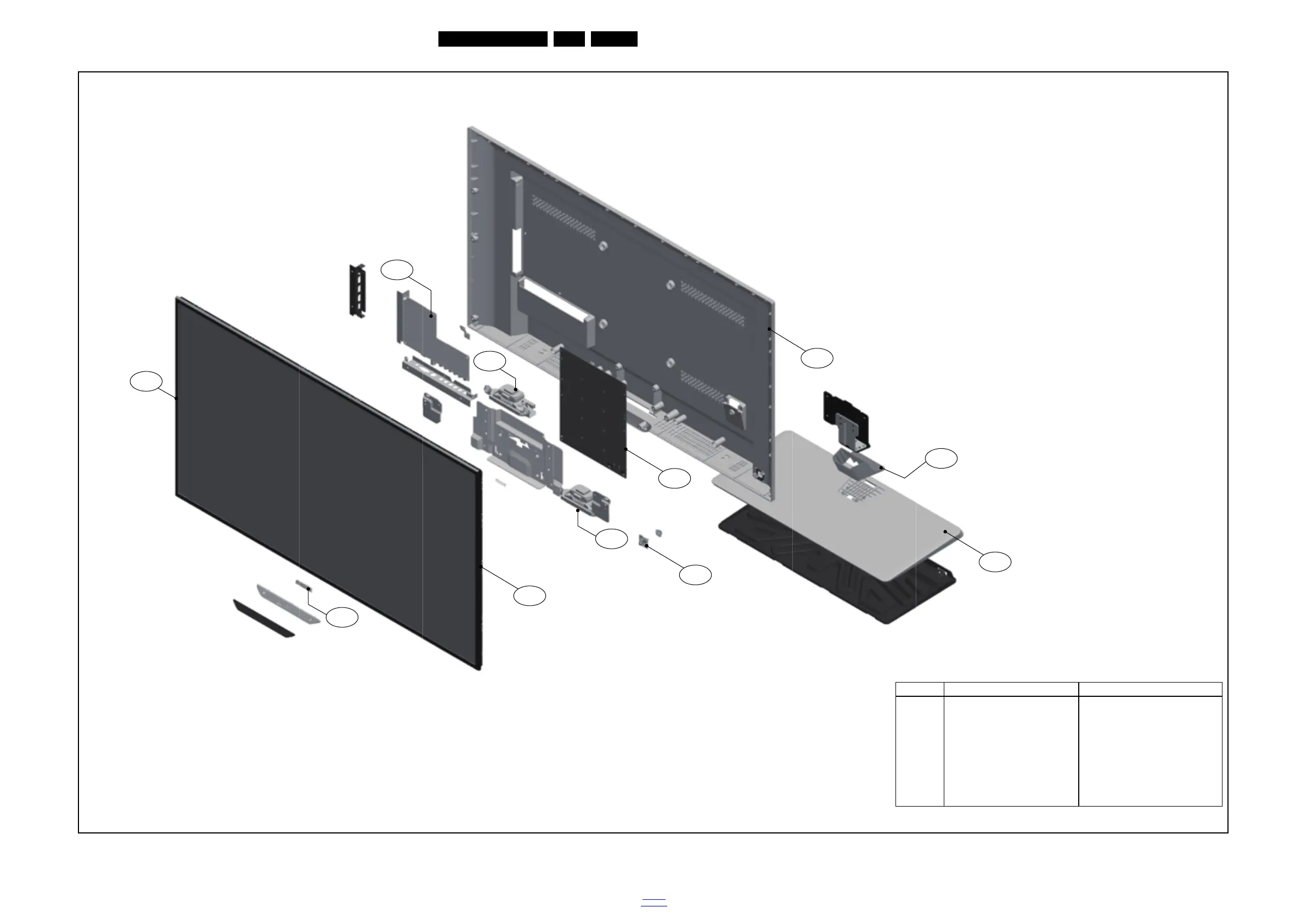

19660_802.eps
4509 series 40"
Pos No. Description Remarks
0030 Bezel
0040 Rear cover
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
5050 Base Assy
5090 Stand Assy
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
5050
0040
1054
1057
1056
1184
1050
1053
1184
0030
5090
