3.3. Connecting Multiple Displays in a Daisy-chain Configuration

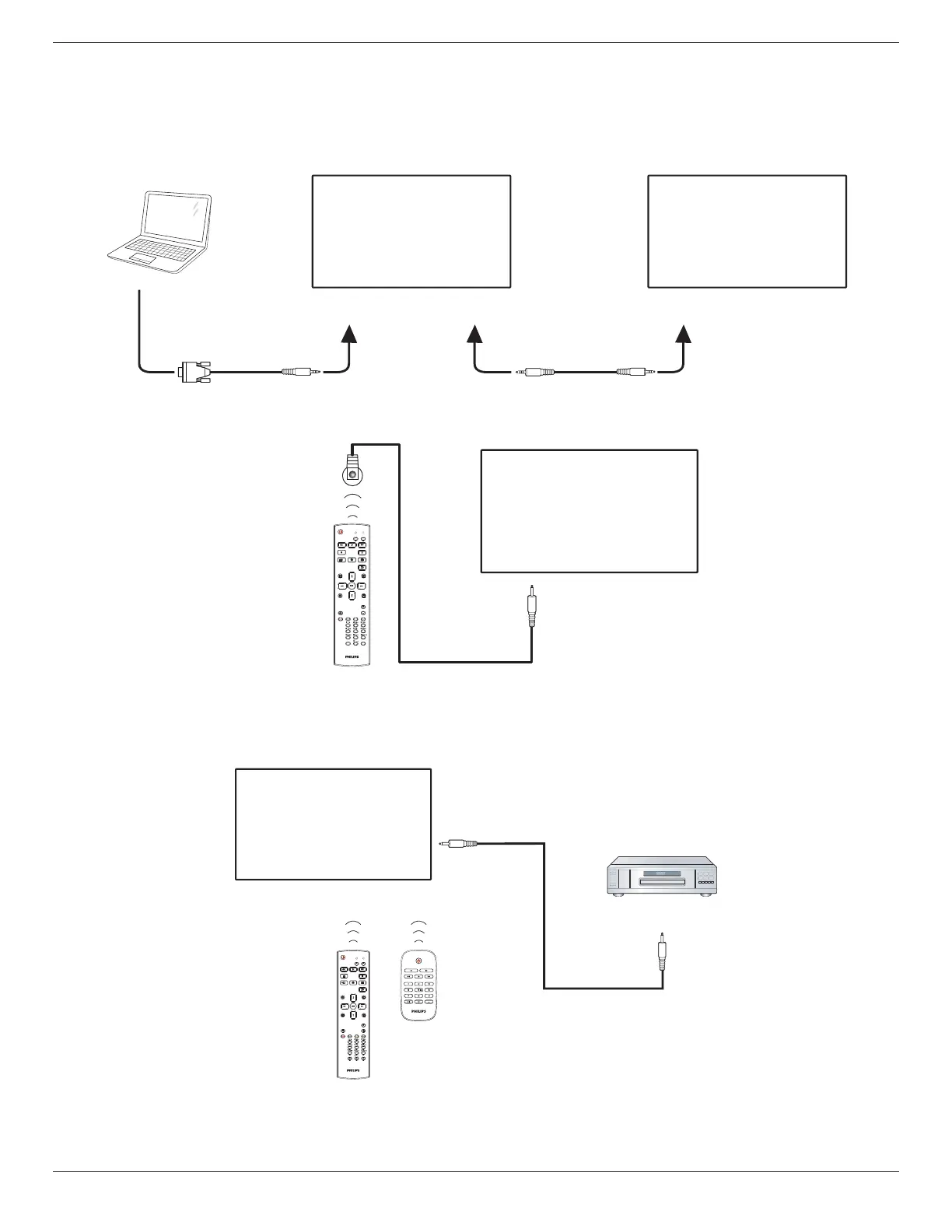

You can interconnect multiple displays to create a daisy-chain conguration for applications such as a menu board.
3.3.1. Display control connection
Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2.
DISPLAY 1 DISPLAY 2
PC
[RS232 IN]
[RS232]
[RS232 OUT] [RS-232 IN]
3.4. IR connection
FORMAT
SOURCE
INFOLIST
OPTIONSADJUST
VOL
NORMAL
ID
ID SET ENTER
DISPLAY 1
[IR IN]
External
IR Receiver
NOTE:
This display’s remote control sensor will stop working if the [IR IN] is connected.
3.5. IR Pass-through Connection
DVD / VCR / VCD
(DVD / VCR / VCD)
Remote Control
FORMAT
SOURCE
INFOLIST
OPTIONSADJUST
VOL
NORMAL
ID
ID SET ENTER
[IR OUT]
[IR IN]
