Mechanical Instructions
EN 12 TPT1.1HA LA4.
4.3.9 PSU removal
Refer to figure “PSU removal” for details.
1. Unplug the connectors [1].
2. Remove the fixation screw [2] from the bottom side of the
connector plate.
3. Remove the fixation screws [3].
4. Lift out the panel.

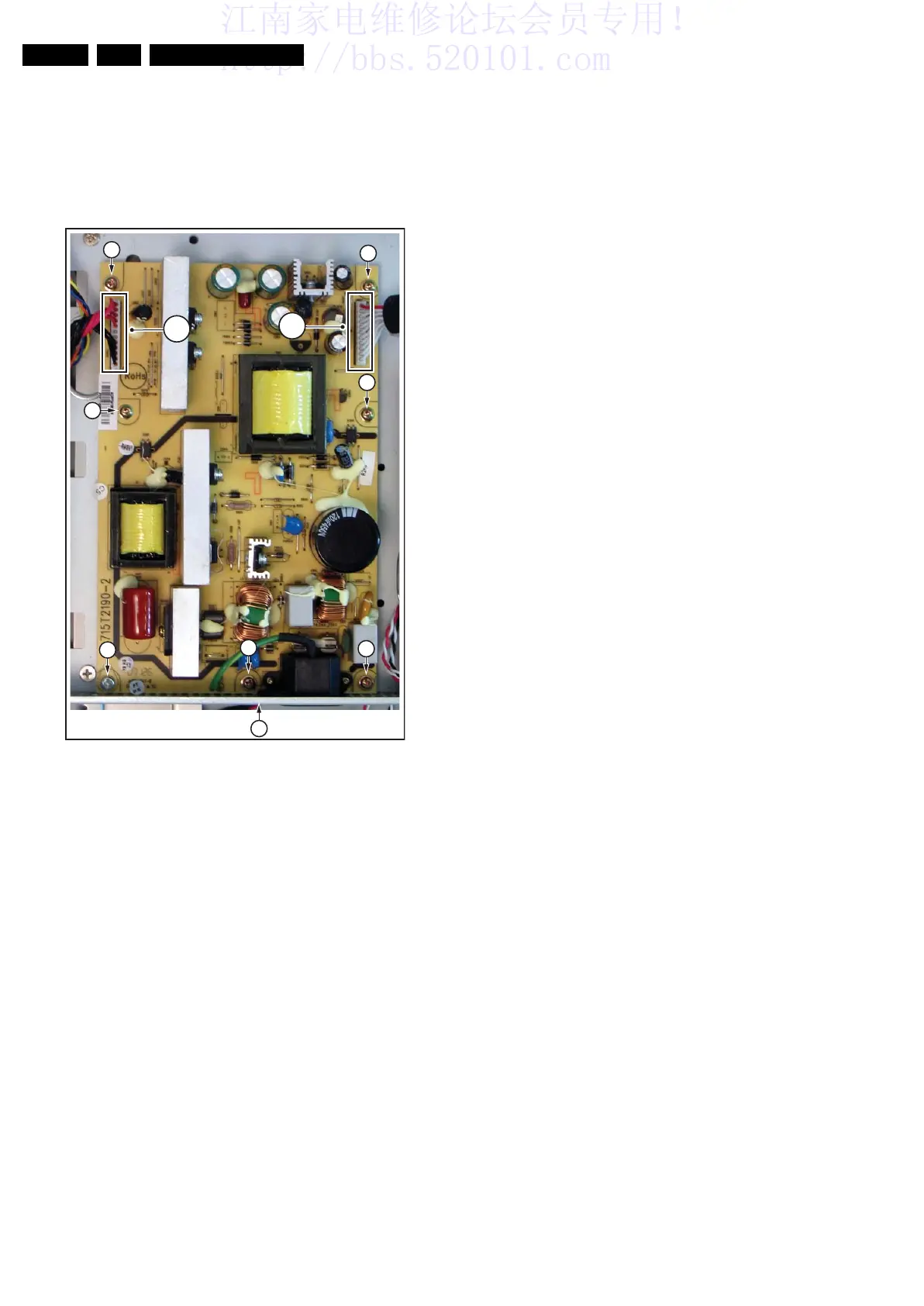

Figure 4-11 PSU removal
H_17010_012.eps
180907
