Mechanical Instructions
EN 11TPT1.1HA LA 4.
4.3.8 Subframe removal
Refer to figure “Subframe removal” for details.
1. Unplug the LVDS connector [1]. Caution: be careful, as
this is a very fragile connector!
2. Disconnect the connectors [2] from the panels and
speakers.
3. Release the tape [3].
4. Remove the fixation screws [4] and [5].
5. Lift the subframe from the cabinet.

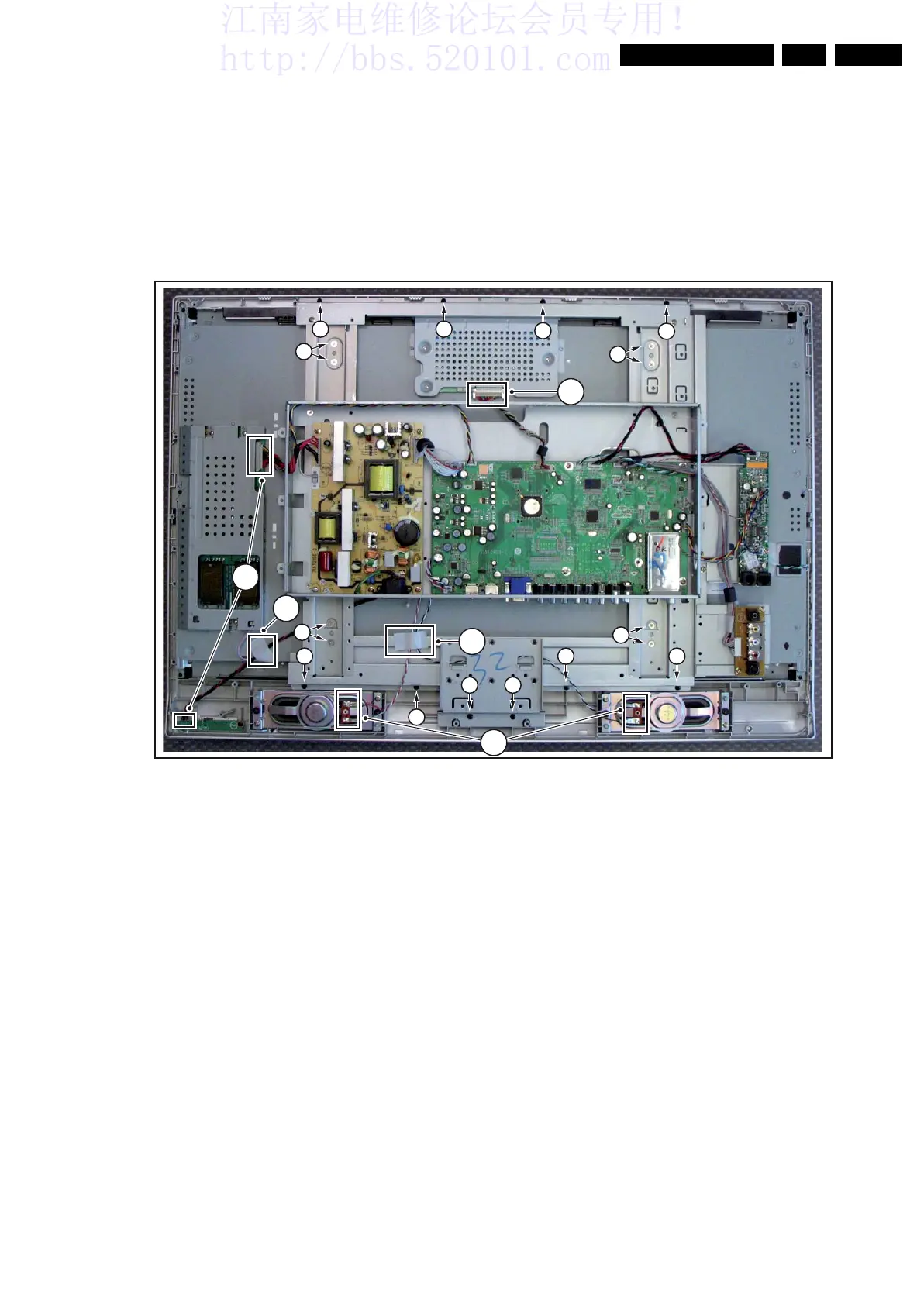

Figure 4-10 Subframe removal
H_17010_013.eps
180907
4 4
4
444
4 4
4
4
5
5
5
5
2
2
1
3
3
