Technical Specifications, Connections, and Chassis Overview
EN 2 TPT1.1HA LA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD LPL
Screen size : 32" (80 cm), 16:9
Resolution (H × V pixels) : 1366 × 768p
Contrast ratio : 600 : 1
Light output (cd/m2) : 500
Response time (ms) : 8
Viewing angle (H×V degrees) : 178 × 178
Tuning system : PLL
Tuner bands : VHF, UHF,
S-Channel and
Hyperband
TV color systems : PAL B/G
: PAL D/K
: PAL I
: SECAM B/G
: SECAM D/K
:NTSC
Video playback : NTSC, PAL, SECAM
Supported video formats : (640 × 480)i, 1Fh
: (640 × 480)p, 2Fh
: (720 × 576)i, 1 Fh
: (720 × 576)p, 2Fh
: (1280 × 720)p, 3 Fh
: (1920 × 1080)p, 2Fh
Supported computer formats : 640 × 480 @
60, 72, 75, 85 Hz
: 800 × 600 @
56, 60, 72, 75, 85 Hz
:1024× 768 @ 60 Hz
Channel selections : 125 presets
Aerial input : 75 ohm, Coax
: IEC75 connector
1.1.2 Sound
Sound systems : NICAM, 2CS,
AM-MONO,
FM-MONO
Maximum power (WRMS) : 2 × 5
1.1.3 Miscellaneous
Power supply:
- AC Power voltage (VAC) : 90 - 264
- AC Power frequency (Hz) : 50/60
Ambient conditions:
- Temperature range : +5 to +40 °C
- Maximum humidity : 90% R.H.
Power consumption
- Normal operation : 150 W
- Stand-by : < 3W
Dimensions (W × H × D cm) : 79.0 × 54.0 ×11.0
Weight (kg) : 18.2
1.2 Connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Rear and side I/O Connections

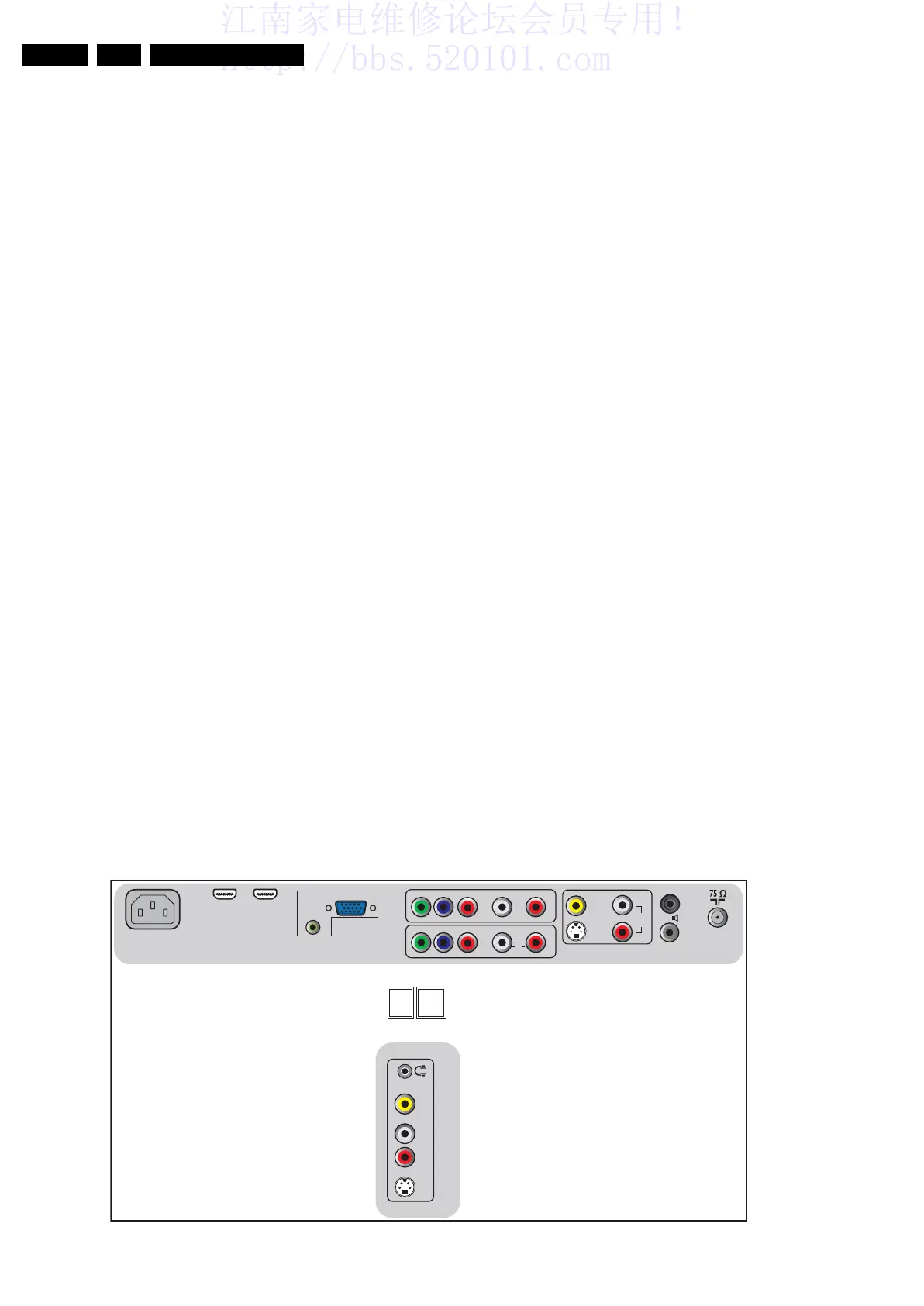

Figure 1-1 Rear and Side I/O connections
Y P b
Pr
R L
AUDIO
IN
Y P b
Pr
R L
AUDIO
IN
CVI 1
CVI 2
AC IN
D-SUB
PC IN
AUDIO
AV
VIDEO
IN
S-VIDEO
R
L
AUDIO
IN
SPDIF
OUT
HDMI 1
8 ?
HDMI 2
VA EDIS
OEDI
V
-SL -
OI
D
UA - RNI OEDIV
DATA 1
(RJ12)
DATA 2
(RJ45)
H_17010_003.eps
180907
