Mechanical Instructions
EN 16 Q522.2HE LA4.
2010-Jun-30

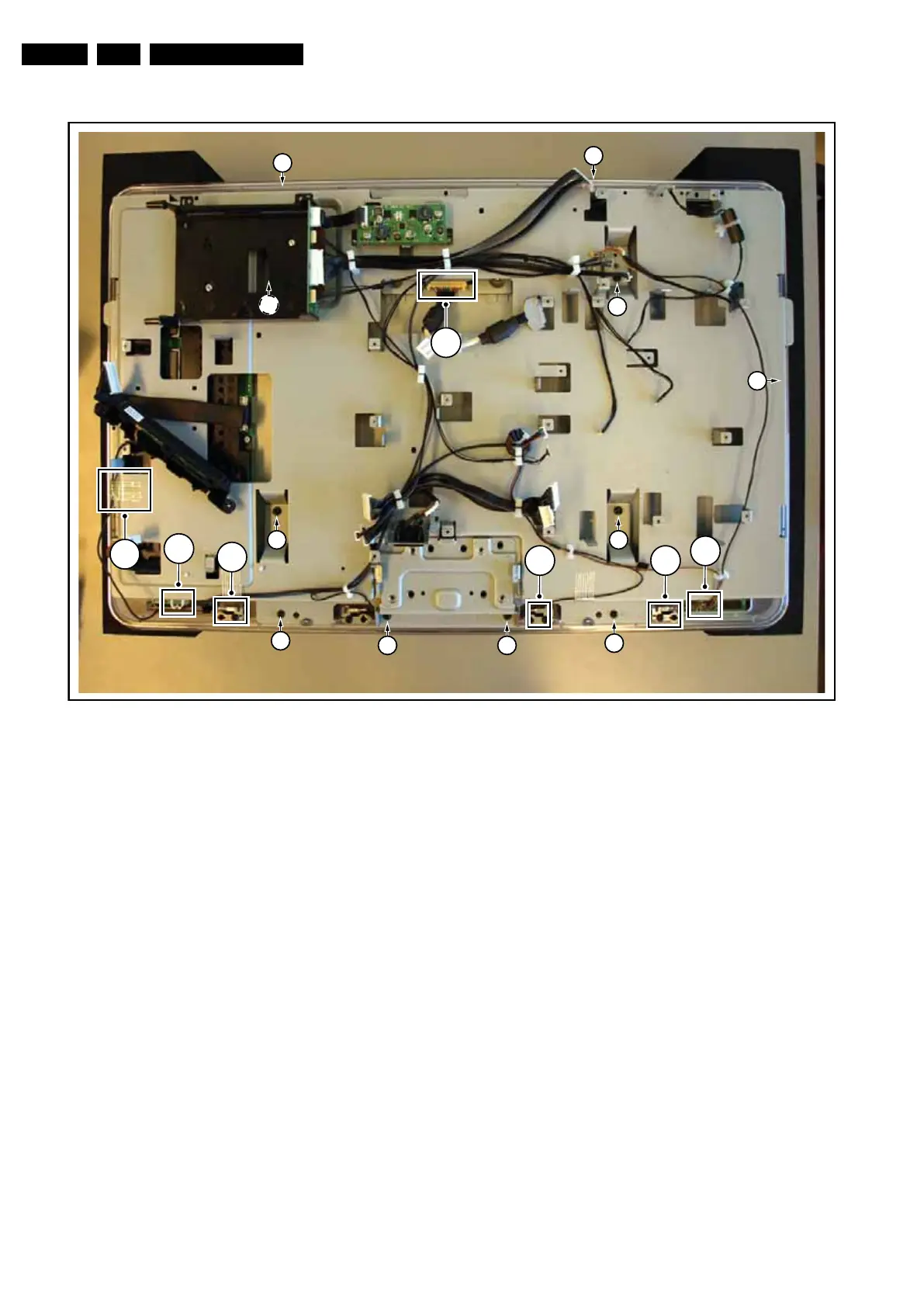

Figure 4-13 LCD Panel removal 26HFL5850D/10 (with integrated card slot)
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure “Cable
dressing”.
• Pay special attention not to damage the EMC foams in the
set. Ensure that EMC foams are mounted correctly.
I_18030_071.eps
041108
3
3
3
1
4 4
5
4
5
3
3 3
3
3
33
3
2
To Next Page
