Philips 32HFL5850D/10 - Wiring Diagram 26 Alt BOM 2 (ME8)

EN 54Q522.2HE LA 9.
Block Diagrams
2010-Jun-30

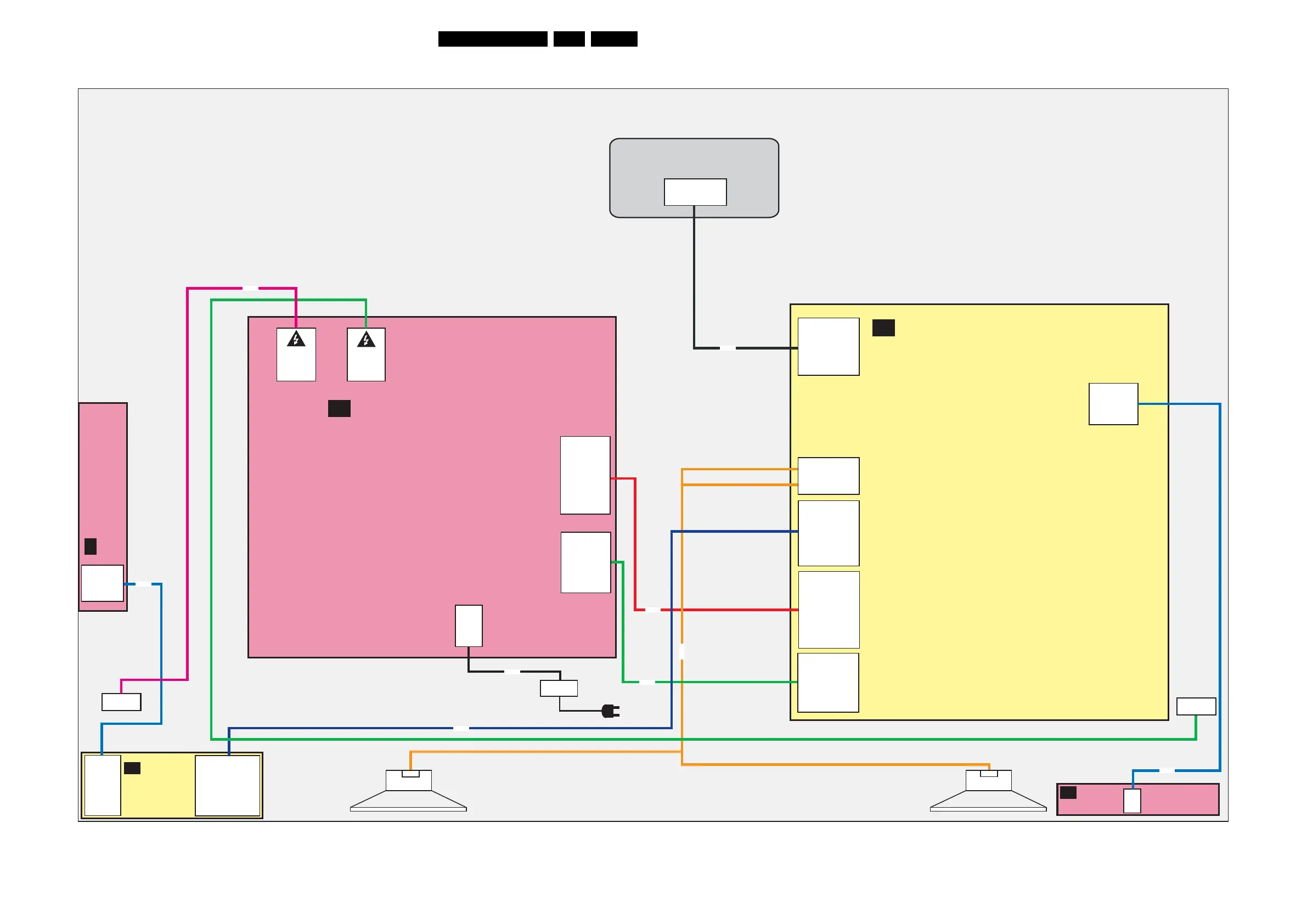

Wiring Diagram 26" Alt BOM 2 (ME8)
KEYBOARD CONTROL (0025)
18035_400_091211.eps
091211
8P11
LCD DISPLAY (1004)
8M95
8M99
8D12
1M99 (B02B)
8. GND
7. BACKLIGHT-BOOST
6. MACKLIGHT-OUT
5. LAMP-ON-OUT
4. GND
3. GND
2. +12VD
1. +12VD
1M95 (B02B)
11. -AUDIO-POWER
10. GNDSND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STANDBY
CN4
1. 3.3VSB
2. PSON
3. SGND1
4. SGND1
5. SGND1
6. 12V
7. 12V
8. 12V
9. 12VA
10. SGND2
11. -12VA
CN5
1. 12V
2. 12V
3. SGND1
4. SGND1
5. BL_ON_OFF
6. DIM
7. BOOST
8. ANALOG_PWM
1D10 (B10A)
9. KEYBOARD
8. +5V
7. KEYBOARD
6. LED1
5. +3V3-STANDBY
4. LED2
3. RC
2. GNDSND
1. LIGHT-SENSOR
1D12 (B10A)
4. RIGHT-
3. GNDSND
2. GNDSND
1. LEFT+
CN1 2. L 1. N
J1
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
8003
*8002
WIRING DIAGRAM 26" ALT BOM 2 (STYLING ME8)
1G50 (B06A)
41. VDISP
40. VDISP
39. VDISP
38. VDISP
...
2. SCL-I2C4-DISP
1. SDA-I2C4-DISP
LVD S INPUT
30P
8G50
E
SSB
(1150)
B
RIGHT SPEAKER
(5212) IN BACK COVER
+ -
LEFT SPEAKER
(5211) IN BACK COVER
+ -
1P10 1. LIGHT-SENSOR
2. GNDSND 3. RC 4. LED2 5. +3V3-STANDBY
6. LED1 7. KEYBOARD 8. +5V 9. KEYBOARD
1P11 1. GND 2. KEYBOARD 3. +3V3STBY
4. TACT_SWITCH_INT
IR LED PANEL
(1112)
J
INLET
A
MAIN POWER SUPPLY
IPB 26 PLHL-T847A B
(1005)
1R06 (B07D)
1. +3V3-STANDBY
2. HP-DETECT
3. AV2-BLK
4. GND
5. +5V
CLOCK
(1183)
CL
C1 5P
8D10
8R06
*32” sets
CN2 1. HV1 2. N.C. 3. HV1
DANGEROUS
HIGH VOLTAGE
CN3 1. HV2 2. N.C. 3. HV2
DANGEROUS
HIGH VOLTAGE
TO
BACKLIGHT
8401
TO
BACKLIGHT
