Circuit Descriptions
EN 41Q522.2HE LA 7.
2010-Jun-30
7. Circuit Descriptions
Index of this chapter:
7.1 Introduction
7.2 Main Power Supply
Notes:
•Only new circuits (circuits that are not published recently)
are described.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the wiring, block and circuit
diagrams (see chapter 9. Block Diagrams and 10. Circuit
Diagrams and PWB Layouts). Where necessary, a
separate drawing for clarification will be given.
7.1 Introduction
The Q522.2HE LA is the Hospitality version of the Q522.2E LA
chassis. Refer to the Service Manual of the Q522.2E LA
chassis for a description of most circuits.
The hospitality-specific features comprise:
• Advanced Hotel mode (volume lock, front control lock out,
guest menu, welcome message, etc.)
• Integrated LCD clock display with wake-up alarm
• Time synchronisation via Teletext
• Channel protection
• Energy saving features
• Multimedia Player.
The chassis supports four basic application types:
• Stand-alone
• Interactive via SmartCard (integrated slot in the TV)
• Interactive via SmartCard (Serial Xpress or SmartPort
Xpress add-on box)
• Interactive via 3rd-party set-top box.
7.1.1 TV522 Architecture Overview
For details about the chassis block diagrams refer to chapter
Block Diagrams
. An overview of the TV522 architecture can be
found in figure Architecture of TV522/22E platform
.

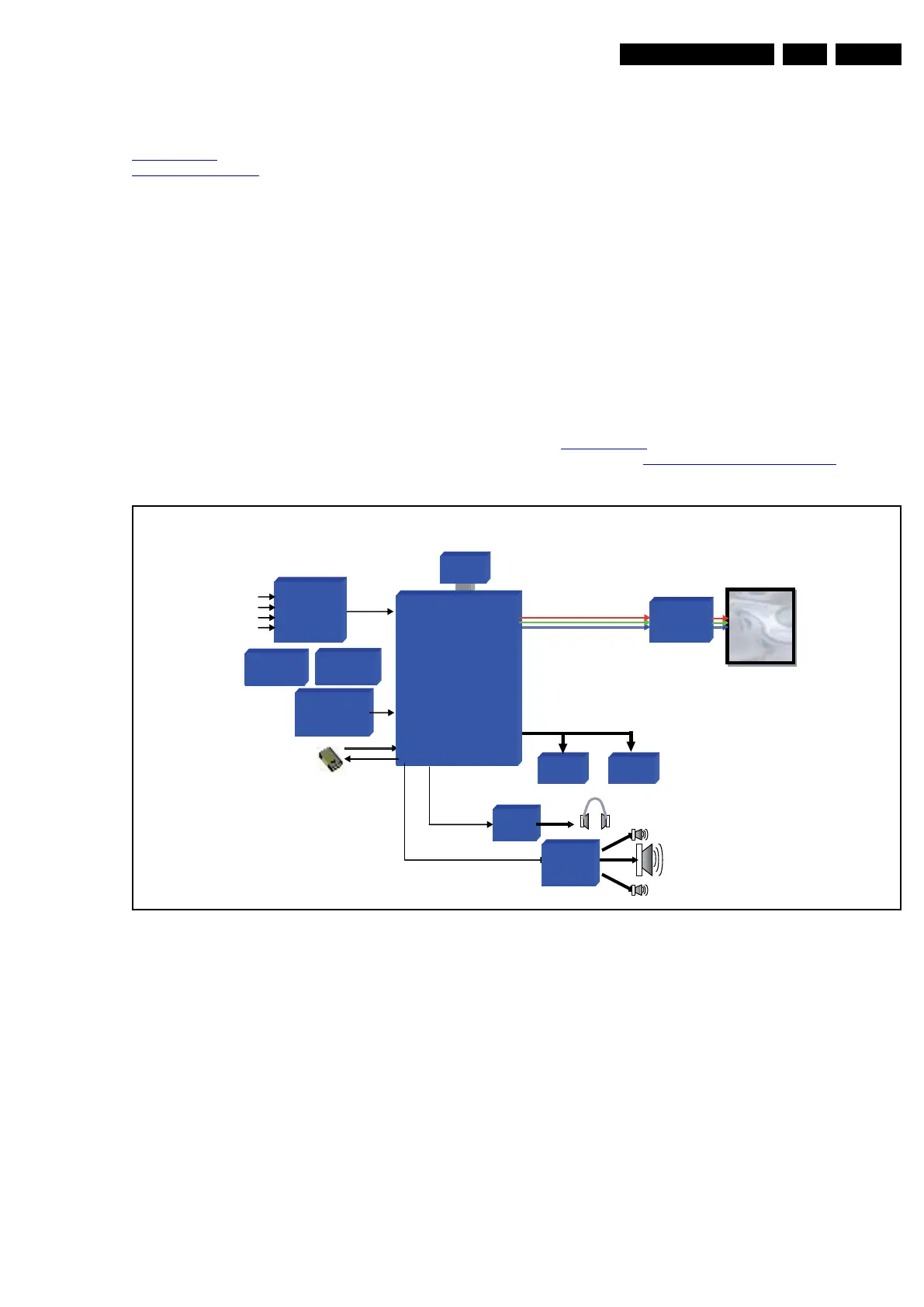

Figure 7-1 Architecture of TV522/22E platform
TV522/22E - Architecture Block Diagram
Hybrid
Tuner
MASTER
IF
NXP
PNX8541
Digital Colour
Decoder
8-bit video
2-field HD MADI
DVB-T
MPEG2
HDMI Side
HDMI 1
HDMI 2
HDMI 3
USB2.0FLASH
HP
amp
LVDS
Class D
TDA8932T
DUAL
LVDS
BU7988K
