Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum
distance of 20” from the screen.

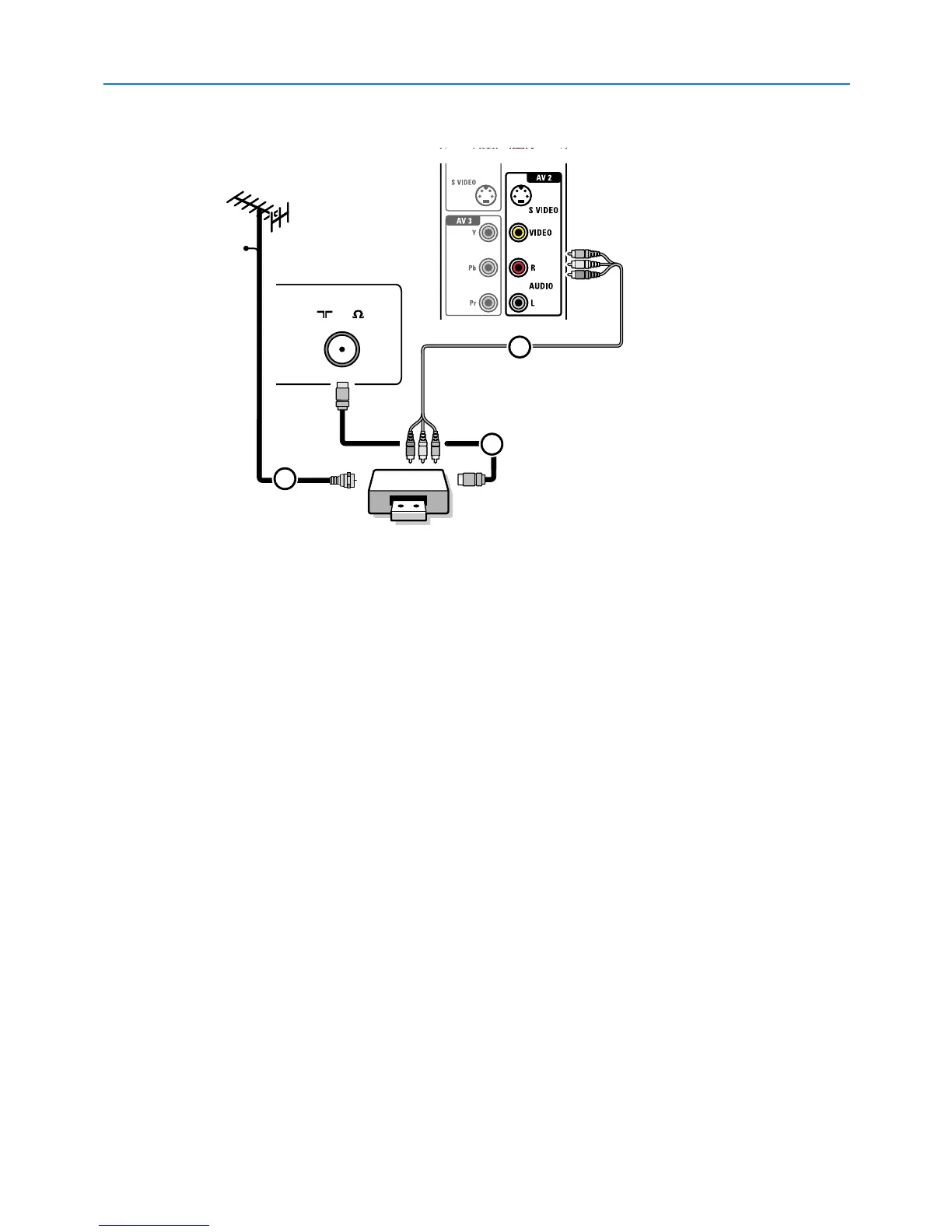

& Connect the RF Antenna or Cable TV cable (eventually via an optional two-way signal splitter and/or Cable TV converter box) 1 to
the
RF IN socket of your recorder.
é Connect another RF cable 2 from the output OUT of your recorder to the TV’s CABLE/ANTENNA 75 Ω x jack.
“ Better playback quality can be obtained if you also connect the Video,Audio Left and Right (only for stereo devices) AV cables 3 to
the
VIDEO, AUDIO L and R input jacks of AV2.
If your recorder has an S-VHS video jack:
For improved picture quality, connect an S-video cable with the
S-VIDEO input instead of connecting the recorder to the VIDEO
jack of AV2.
S-Video does not provide audio, so audio cables must still be connected to provide sound.
