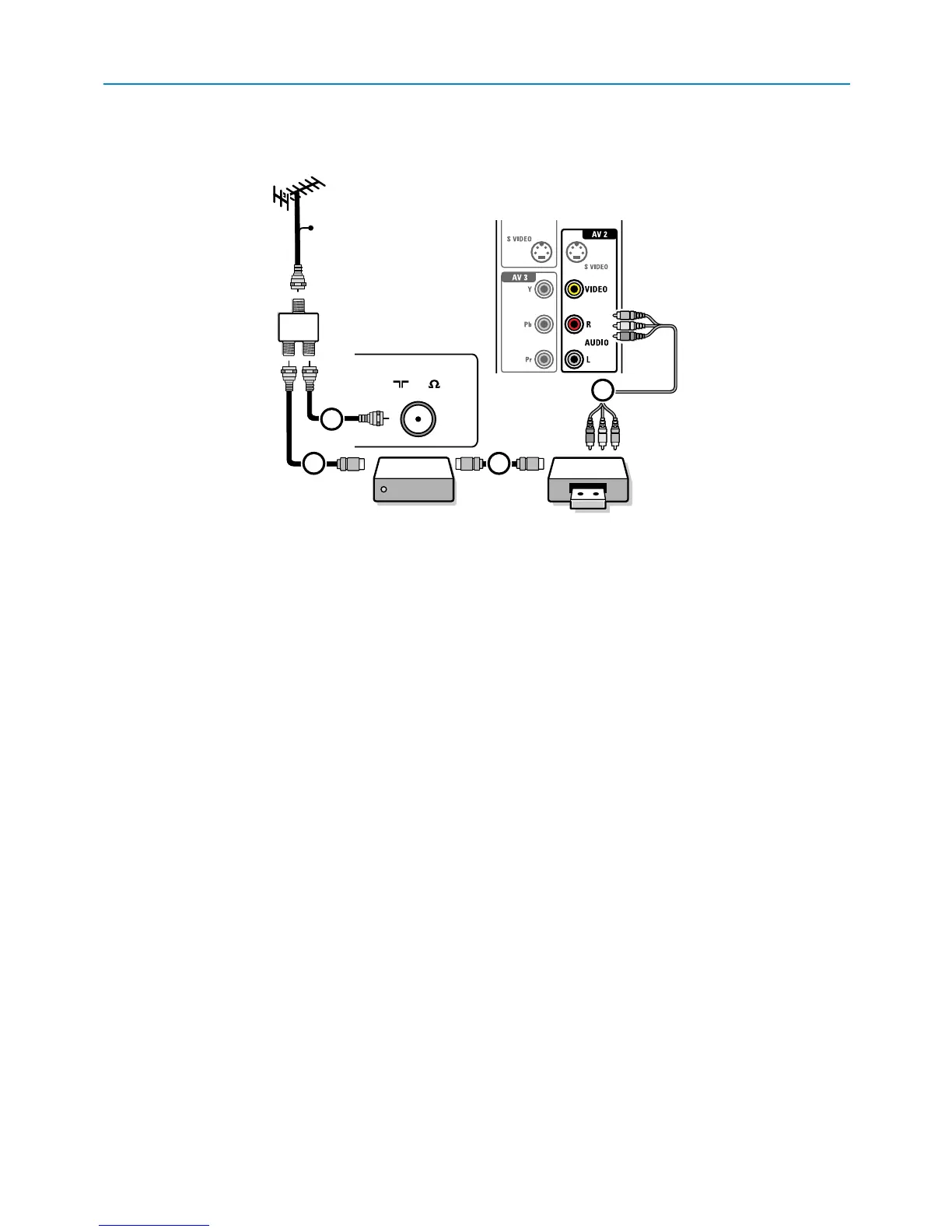

& Use an optional signal splitter.
é Connect one of the cable TV signal splitter outputs 1 to the cable box’s IN jack.
“ Connect the other cable TV signal splitter output 2 to the CABLE/ANTENNA 75 Ω x plug on the bottom of the TV.
‘ Connect the cable box’s OUT jack 3 to the recorders RF IN socket.
( Connect the Video, Audio Left and Right (only for stereo sound) recorder AV cables 4 to the VIDEO, audio L and R input AV2
jacks on the TV.
CABLE / ANTENNA
75
CABLE
RECORDER
Cable Box
3
OUTIN
OUTIN
SIGNAL
SPLITTER
2
4
1
Recorder and cable box with RF output
