Philips 32PF7320A - Satellite Receiver; Cable Box with AV Outputs

32
& Connect the RF Antenna or Cable TV cable as described above.
é Connect the AV cables 1 to the satellite receiver’s or cable box’s AV OUT jacks and to the recorder’s AV IN jacks.
“ Connect the recorder’s AV OUT jacks 2 to the TV’s AV1 jacks as described above.
‘ Connect another RF cable 3 from the output out of your recorder to the TV’s input CABLE/ANTENNA x jack.
& Connect the satellite antenna cable or the Cable TV cable 1 to the satellite receiver’s or cable box’s IN jack.
é Connect the Video,Audio left and right AV cables 2 to the VIDEO, L and R audio input jacks of AV1.
If your satellite receiver or cable box has an S-Video jack:
For improved picture quality, connect an S-Video cable to the
S-VIDEO input instead of connecting the satellite receiver or cable
box to the
VIDEO jack.
Connect the audio cables to the device’s
AUDIO L and R jacks and to the L and R audio AV1 jacks on the TV.
RECORDER
OUTIN
IN
1
OUT
OUTIN
STB
IN
CABLE
OUT
VIDEO
L/Mono
R
2
STB
IN
CABLE
OUT
VIDEO
L/Mono
R
2

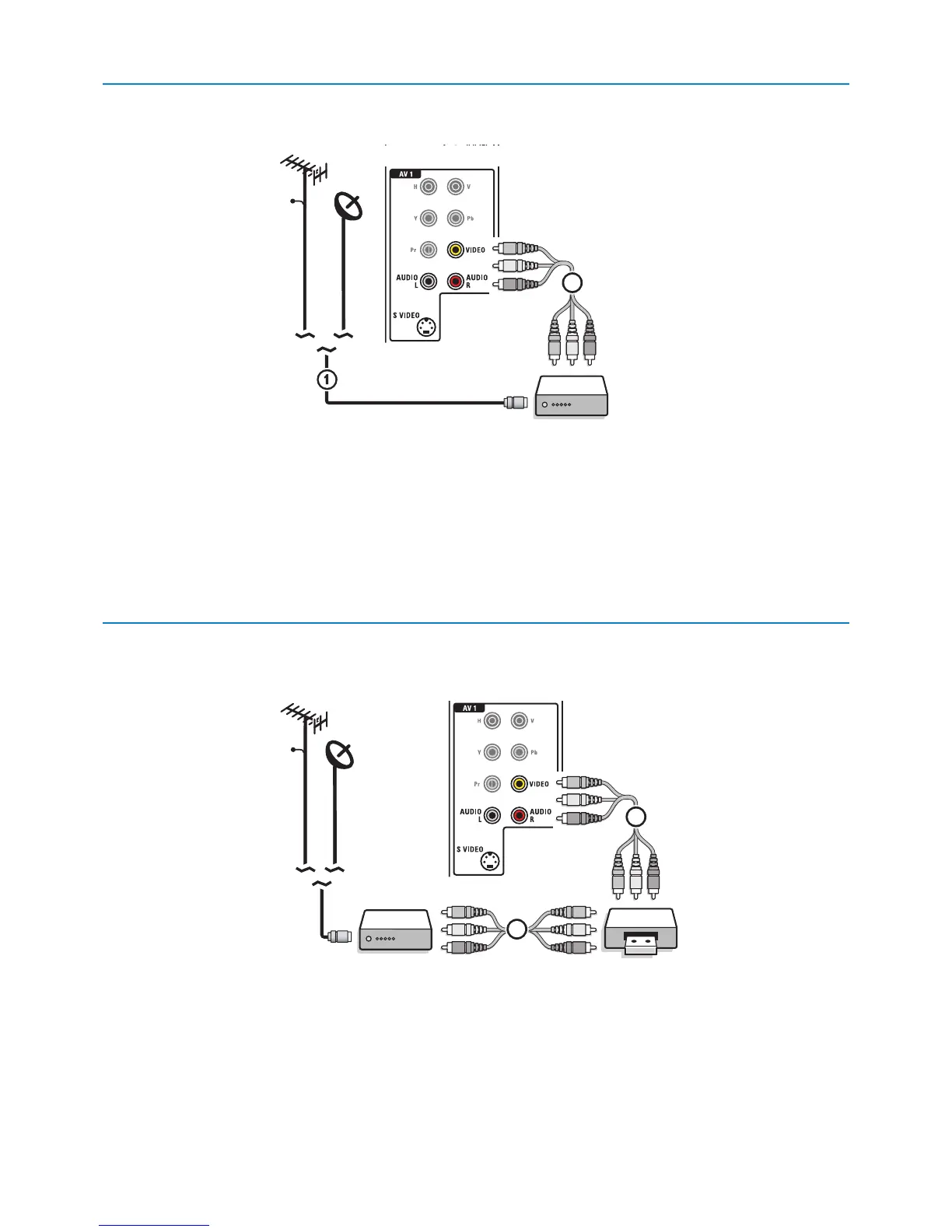

Recorder and Satellite Receiver / cable box with AV outputs
Satellite Receiver / cable box with AV outputs
