2.3 Connections

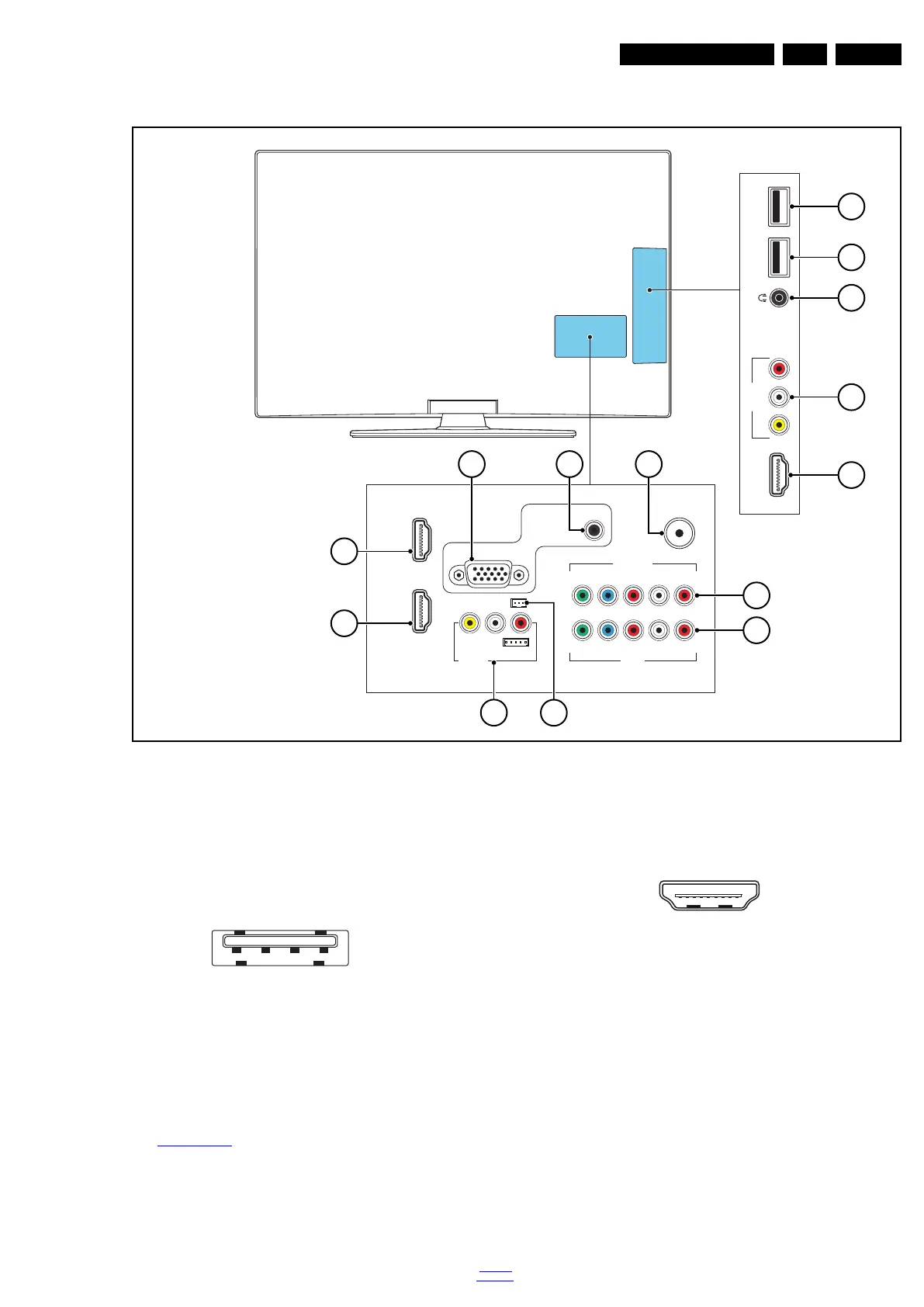

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - USB2 2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
2 - USB1 2.0
See
1 - USB2 2.0
3 - Head phone (Output)
Bk - Head phone 80 - 600  / 10 mW ot
4 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75  jq
Rd - Audio R 0.5 V
RMS
/ 10 k jq
Wh - Audio L 0.5 V
RMS
/ 10 k jq
5 - HDMI 3: Digital Video - In, Digital Audio - In/Out
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
TV ANTENNA
Y/V Pb Pr L R
Y Pb Pr L R
CVI 2/AV
AV OUT
VIDEO L R
CVI 1
AUDIO
VGA
PC IN
HDMI 2
HDMI 1
SERV.U
HDMI 3 VIDEO
AV IN 1
LR
USB 1
USB 2
19330_001_120608.eps
120612
10
9
8 7 6
1
2
3
4
5
14
13
11
12
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
