8.4 Diagram 10-1-17 B17, I2S Post amplifier & S/PDIF Out, AD82586 (IC U4104)

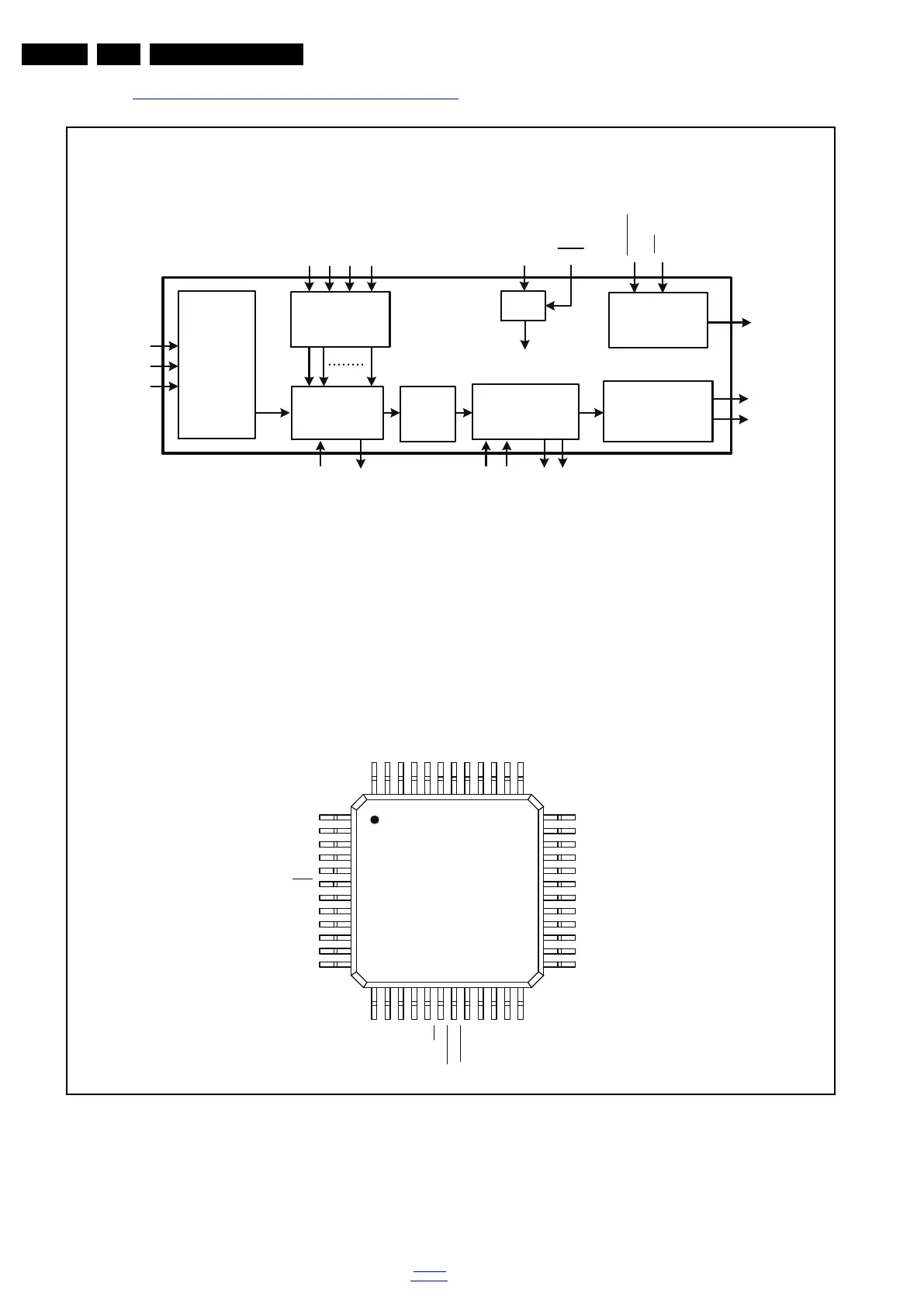

Figure 8-5 Internal block diagram and pin configuration
19330_304_120611.eps
120612
Block diagram
Pinning information
AD82586
VDDRA
N.C.
TEST_2
TEST_1
N.C.
N.C.
N.C.
SUB_SDATAO
LREX
DVDD
DGND
SDA
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
37 38 39 40 41 42 43 44 45 46 47 48
24 23 22 21 20 19 18 17 16 15 14 13
RA
N.C.
GNDR
N.C.
RB
VDDRB
VDDLB
LB
N.C.
GNDL
N.C.
LA
VDDLA
N.C.
N.C.
N.C.
N.C.
PLL
MCLK
CLK_OUT
DGND
DVDD
DEF
SDATA
SCL SUBB SUBA SA1 SA0 RESET ERROR PD BCLK LRCIN CFG1 CFG0
AD82586
SA1
Input
Interface
I
2
C Control
Interface
PCM to PWM
Loudspeaker
Driver
L
R
BCLK
SDATA
LRCIN
ERROR
Audio Signal
Processing
SDM
CFG1
Reset
PD
PLL
Internal
System
Clock
PLL
Logic
Interface
SA0
SDA SCL MCLK
CFG0
LREX
SUBA SUBB
SUB_ SDATAO
