Philips 32PFL3007 - Page 56

EN 56TPM9.1A LA 10.
Circuit Diagrams and PWB Layouts
2012-Jun-15
back to
div. table

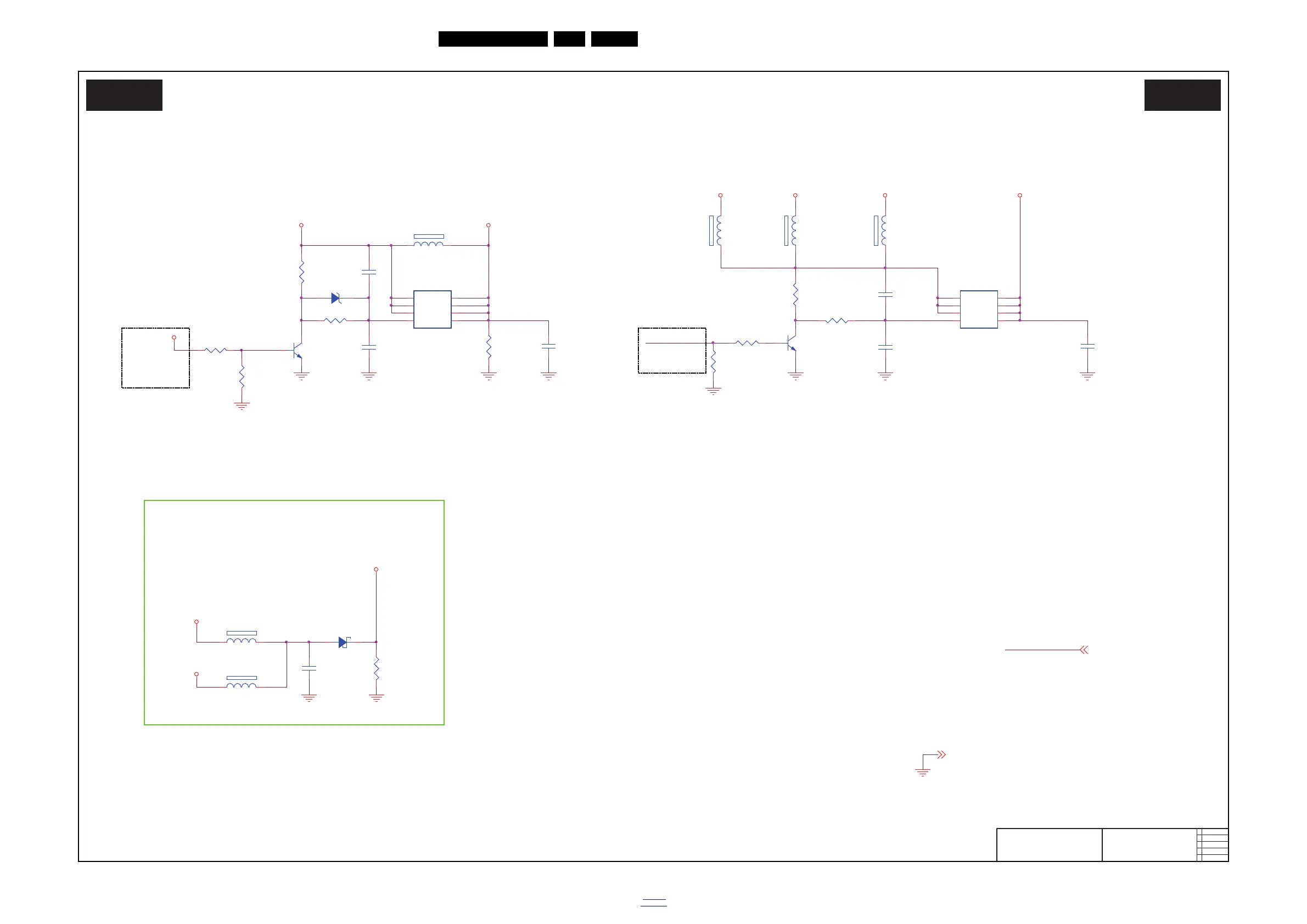

10-1-19 B19, Power MOSFET Switch
19330_518_120606.eps
120611
Power MOSFET Switch
B19 B19
2012-04-24
B
715G5617
Power MOSFET Switch
R713
1K 1/16W 5%
1 2
D701
SX36
R715
10K 1/16W 5%
1 2
FB711
NC/120R/6000mA
R716
20K 1/16W
C710
100N 50V
C716
100N 50V
C709
NC/470nF 16V
C715
NC/220NF 25V
1 2
FB713
120R/6000mA
R726 56KOHM 1/16W
R714
10K 1/16W 5%
Q706
PMBS3904
1 3
ZD702
NC/BAT54
R723
10K 1/4W
R717
10K 1/16W 5%
S
1
S
2
S
3
G
4
D
8
D
7
D
6
D
5
Q709
AO4449 -7A/-30V
S
1
S
2
S
3
G
4
D
8
D
7
D
6
D
5
Q707
AO4449 -7A/-30V
1 2
FB707
NC/120R/6000mA
C713
100N 50V
1 2
FB708
120R/6000mA
R724
1K 1/16W 5%
1 2
FB712
NC/120R/6000mA
C762
220NF 25V
R727
10K 1/10W
C714
220NF 25V
R725
56KOHM 1/16W
1 2
FB709
NC/120R/6000mA
Q704
PMBS3904
+12V5VSB 5V_BUCK
24V_12V_SW
LVD SVDD
VCCK
5VSB
5V_SW
+24V
+12V
GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,23,24
LVDS_PWR_EN 4
LVDS_PWR_EN
System Power Control
Post Amplifier Power
1V2: ON
0V: STANDBY
LVDS_PWR_EN
L: Off
H: On
Panel Logic Power Control
