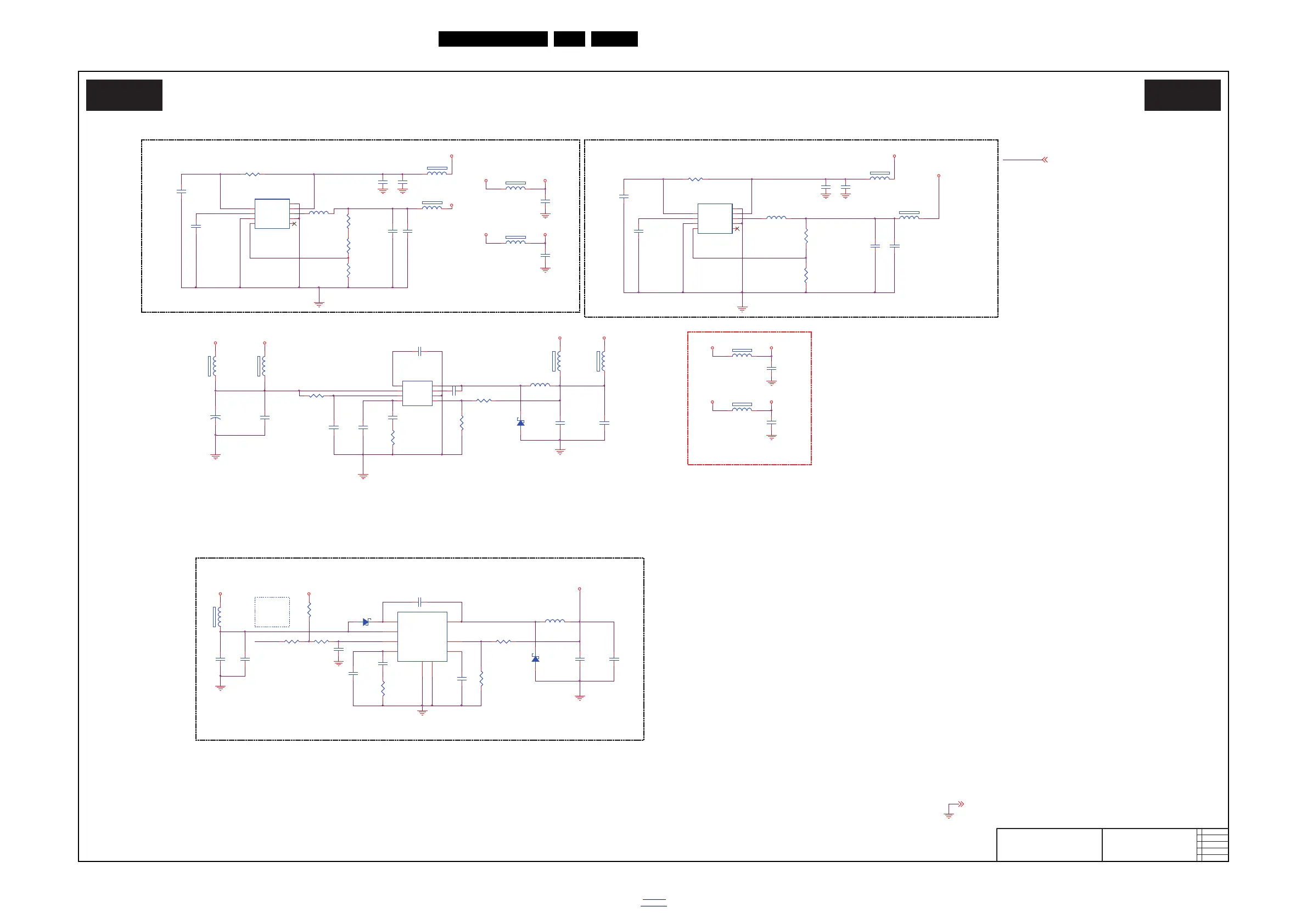

10-1-20 B20, Power 1
19330_519_120606.eps
120606
Power 1
B20 B20
2012-04-24
C
715G5617
Power 1
R735
15K 1/16W 5%
C741
10U 16V
1 2
D702
SX34
R745
1K 1/16W 5%
1 2
D704
SX34
C727
10U 16V
1 2
FB719
120R/3000mA
C747
100N 16V
R741
12KOHM +-5% 1/16W
1 2
D703
NC/RB160M-60TE25
C723
1UF 10V
R742
10K +-1% 1/16W
C722
1UF 10V
1 2
FB726
120R/6000mA
C749
10U 16V
C743
100N 16V
24V_12V_SW +12V
5V_BUCK
DVDD3V3
AVDD3V3
18V4_BUCK
5VSB
VCCK
3V3_BUCK
3V3_BUCK
BUCK_USB2
DDRV
5V_BUCK
5V_BUCK
5V_TUNER
OPWRSB4,21
3V3SB
L4102
2.2uH 20mOHM 8A
GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,24
C4130
100N 16V
C4131
100N 16V
C736
10uF 25V
C733
1N 50V
OPWRSB
+
C729
100UF 50V
C724
10U 16V
R736
56KOHM 1/16W
C725
10U 16V
SoC_AVDD3V3 = 740 mA
OPWRSB
R4156
30K 1/10W 1%
R743
2.7K 1/16W 1%
1V5 DDR Power : DDRV 900mA
5V_SW
1 2
FB718
120R/3000mA
3V3_BUCK
Soc Core Power : 1.15V (3A)
C744
180P 50V
VCC
1
REF
2
GND
3
FB
4
EN
5
PGND
6
LX
7
VIN
8
E-PAD
9
U701
AT1529F11U
VCC
1
REF
2
GND
3
FB
4
EN
5
PGND
6
LX
7
VIN
8
E-PAD
9
U702
AT1529F11U
C734 1uF 25V
C730
1uF 50V
R4152
2.7K 1%
R4151
3Kohm 1/16W +/-1%
C731
1uF 50V
C735
100N 50V
L704
4.7UH
R4150
10R 1/16W 5%
5V_SW
R753
0R05 1/16W
1 2
FB720
NC/120R/3000mA
C738
NC/1UF 10V
1 2
FB722
NC/120R/3000mA
C746 NC/10N 50V
C739
NC/1UF 10V
C732
NC/180P 50V
C748
10U 16V
C728
10U 16V
H: ON
L: OFF
C742
10U 16V
OPWRSB
R734
47K 1/16W 5%
1 2
FB716
120R/3000mA
1 2
FB725
120R/3000mA
C745
2N2 50V
C737
10uF 25V
R737
10K 1%
1 2
FB723
120R/3000mA
R4153
10R 1/16W 5%
R4154
10K 1/10W 1%
1 2
FB717
120R/3000mA
R4155
1.5K +-1% 1/10W
C740
10U 16V
1 2
FB735
120R/3000mA
C764
10U 16V
L4103
2.2uH 20mOHM 8A
LX
1
BST
2
GND
3
FB
4
COMP
5
EN
6
VIN
7
VBIAS
8
U703
AOZ1242AI
C4132
100N 16V
1 2
FB724
120R/3000mA
C4133
100N 16V
L703
15uH
C726
10U 16V
C767
10U 16V
R740 4K7 1/16W 5%
1 2
FB721
120R/3000mA
1 2
FB715
120R/3000mA
LX
3
FB
5
SS
8
IN
2
EN
7
COMP
6
NC
1
GND
4
Thermal Pad
9
U704 G5657F12U
18V4 Main Power (3A)
