Philips 32PFL3007 - Page 64

EN 64TPM9.1A LA 10.
Circuit Diagrams and PWB Layouts
2012-Jun-15
back to
div. table
10-3-2 Keyboard layout
19330_526_120608.eps
120611
2010-01-29
C
715G3814
Keyboard
layout top/bottom
C02
R08
R01 R02 R03 R04
R05 R07
C05
C06
C07
C04
C03 C01
CN20
CN21
R2
SW04 SW01SW02SW03SW05SW06SW07
CN01
SW1 SW2 SW3SW4SW5SW6SW7

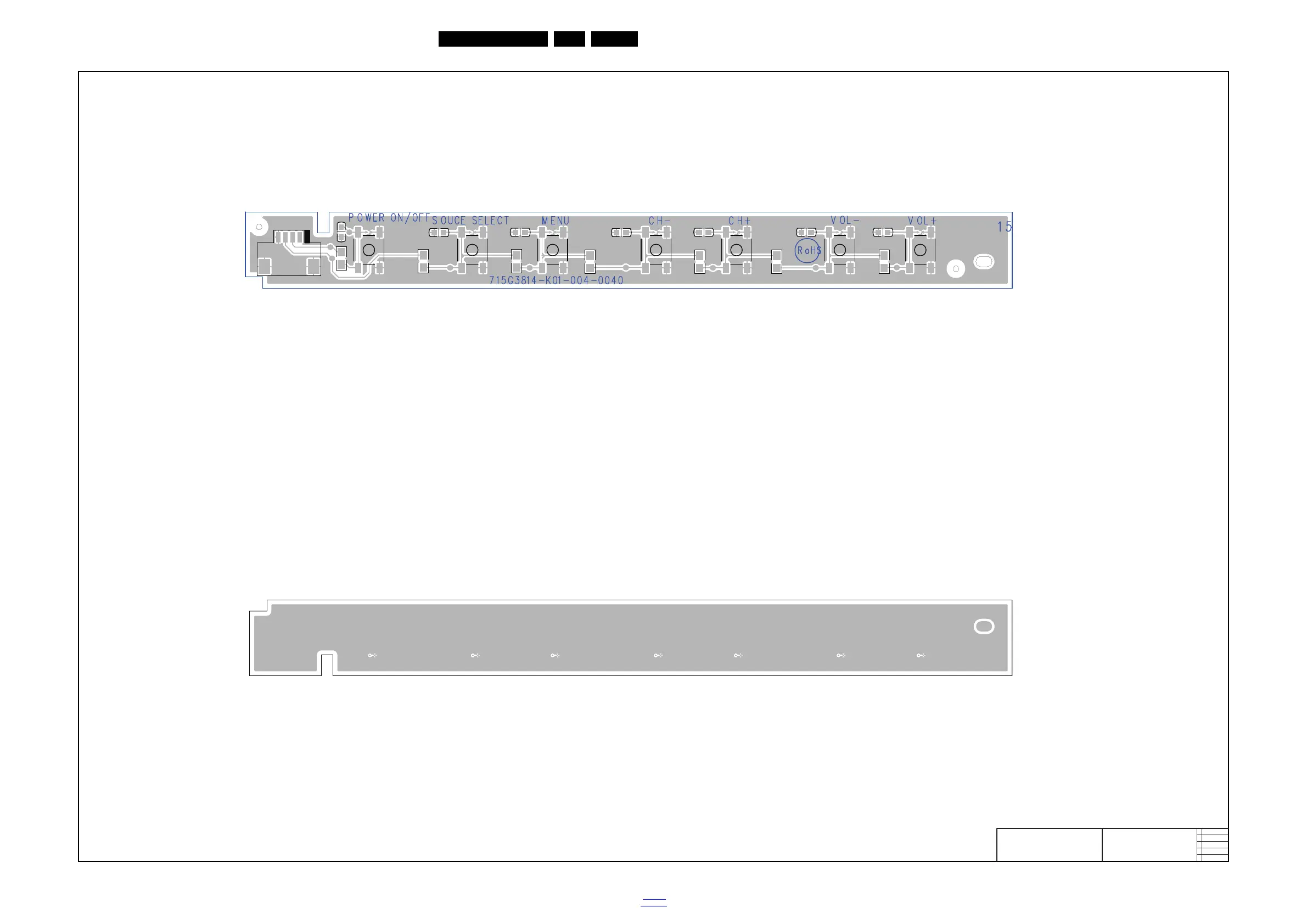

Layout Key Board (Top Side)
Layout Key Board (Bottom Side)
