11. Styling Sheets
11.1 3000 series 32”

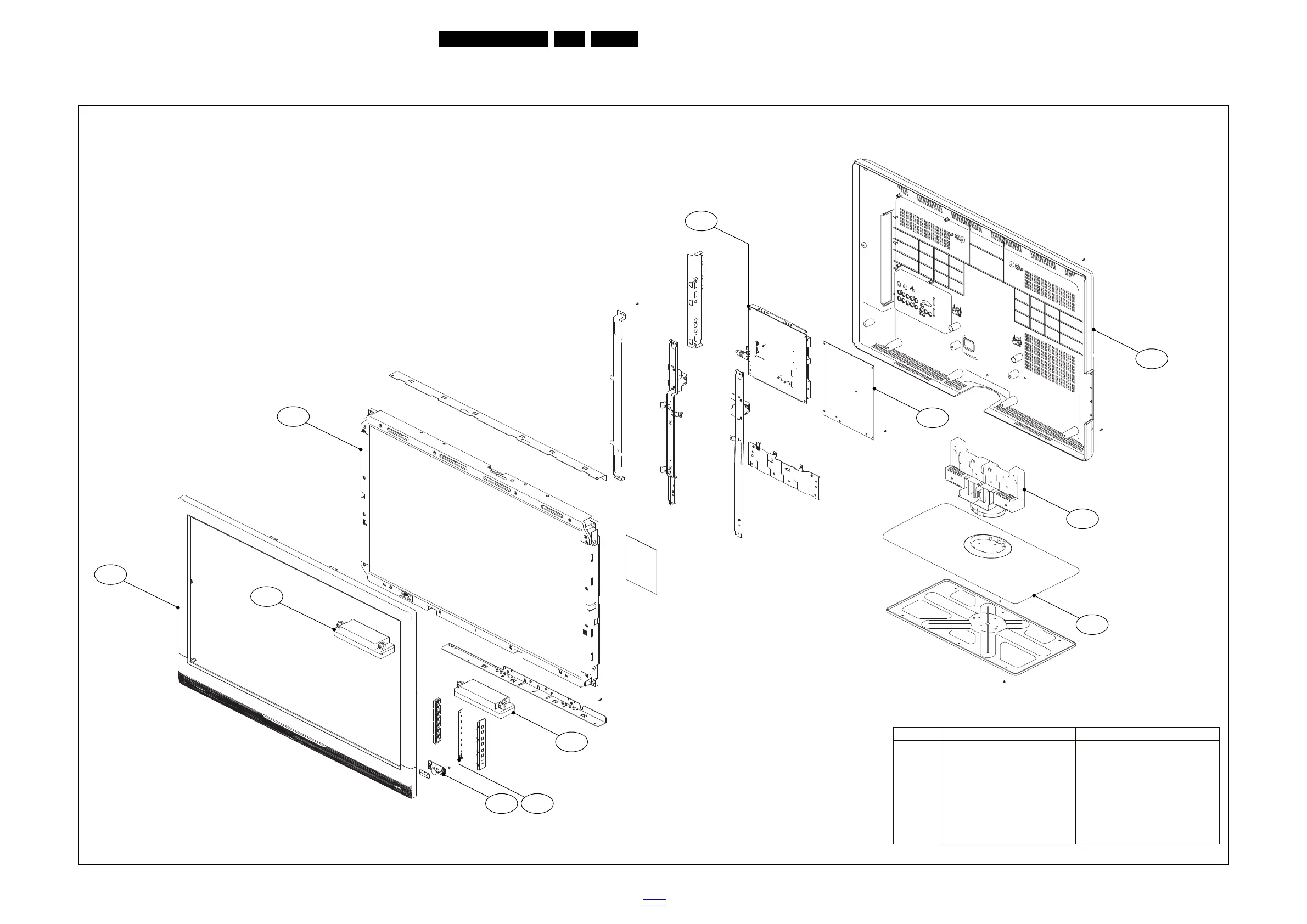

19330_800_120606.eps
120612
3000 series 32"
Pos No. Description Remarks
0030 Base
0031 Front bezel
0041 Rear cover
0050 Stand-base Assembly
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1185 Speakers
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0030
0050
0041
1054
1185
1185
0031
1050
1053
1056 1057
