Styling Sheets
2010-Dec-29
back to
div. table
11. Styling Sheets
11-1 Matisse 32" - 52"
0004
0024
0260
0453
0189
0010
0012
0189
0179
0021
0010
0018
0189
0012
0179
0179
18770_803_100216.eps
101025

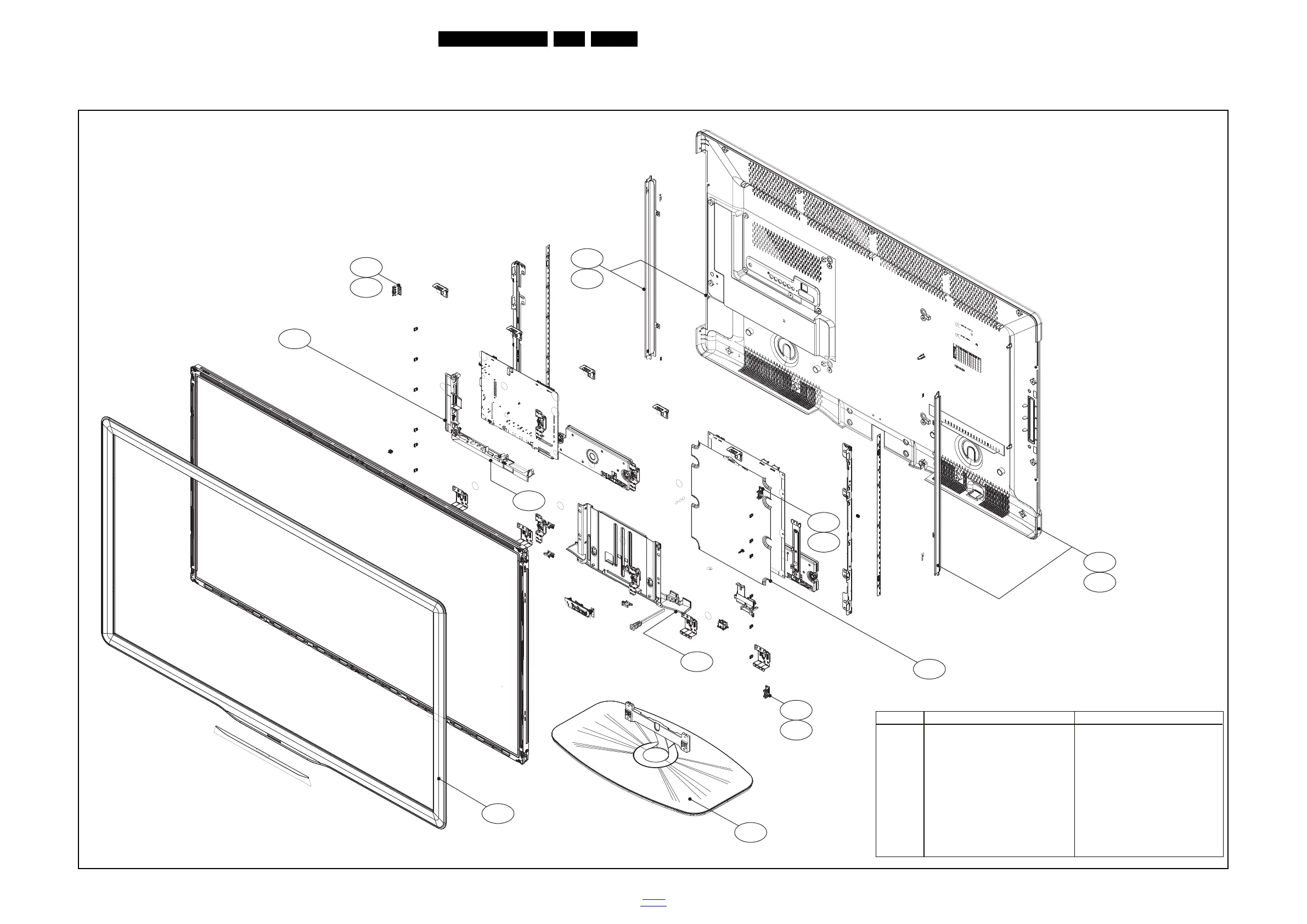

MATISSE 32"- 52"
Pos No. Description Remarks
0004 Front cabinet
0010
Back cover (with left & right diffuser) AP
0012
Back cover (with left & right diffuser) LATAM
0018
Leading edge cover
0021 I/O bracket side
0024 I/O bracket bottom
0029 Switch bracket
0162 Mid high speaker interface bracket Not displayed. For screen size 32" only
0179 Front cabinet locking bracket For 42" sets
0189 Front cabinet locking bracket For 32", 37", 40" ,46", 52" TV-sets
0260 Stand
0453 V0 sheet Matisse EU
1085 Remote control Not displayed
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
