Philips 32PFL5615D/7 - Da Vinci 32 - 46

EN 166Q552.1L LA 11.
Styling Sheets
2010-Dec-29
back to
div. table

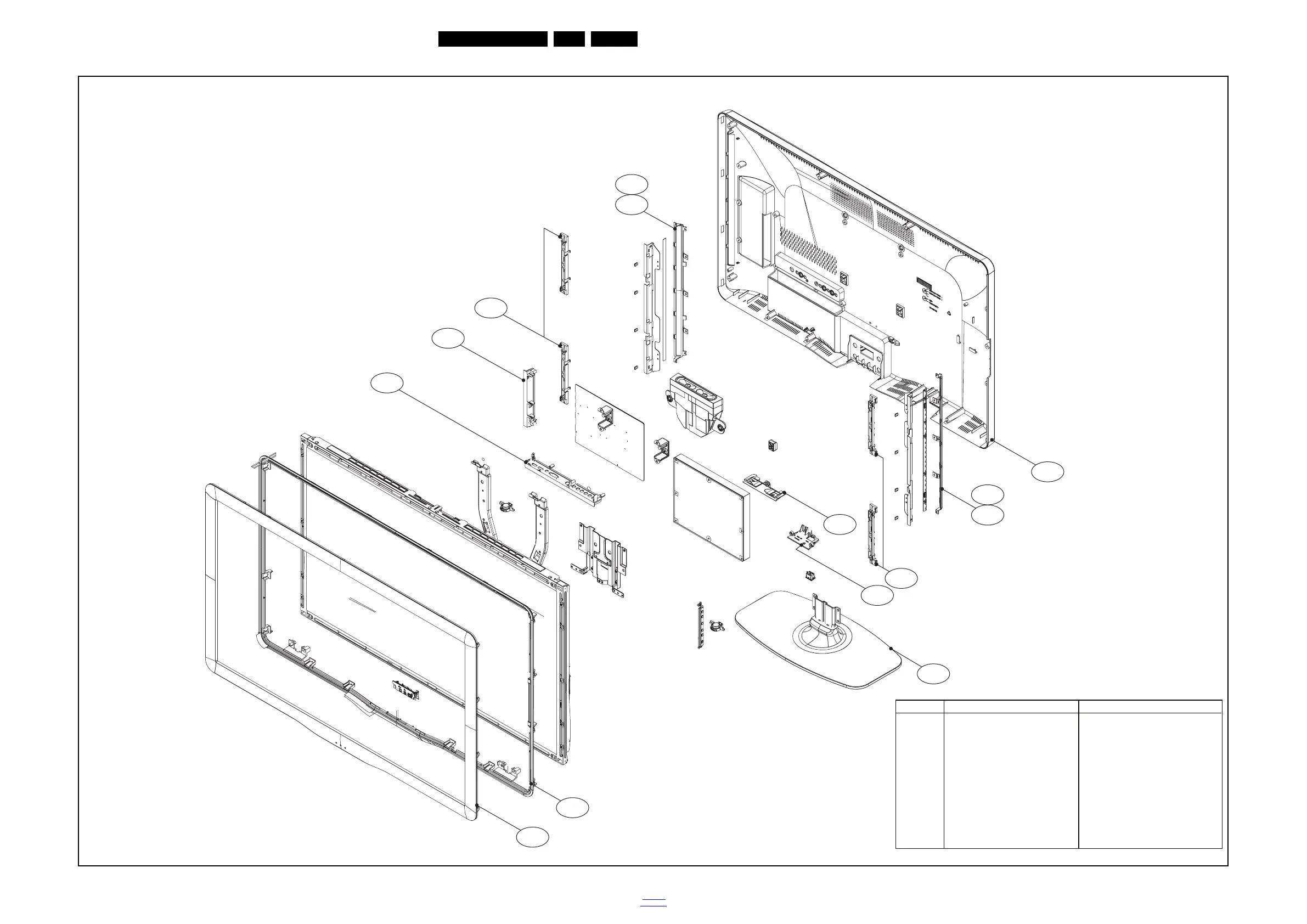

11-3 da Vinci 32" - 46"
18770_804_100525.eps
100716
DA VINCI 32"- 46"
Pos No. Description Remarks
0004 Front Cabinet
0012 Back Cover
0017 Flare
0018 Leading Edge Cover
0019 Diffuser Left For screen size 32", 46" only.
0020 Diffuser Right For screen size 32", 46" only.
0021 I/O Bracket Side
0022 Diffuser Left/Right For screen size 40" only.
0024 I/O Bracket Bottom
0026 Mounting Bracket 4x For screen size 40" only.
0029 Switch Bracket
0154 Speaker Bracket Not displayed. For screen size 46" only.
0260 Stand
1085 Remote Control Not displayed
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0004
0017
0260
0018
0012
0022
0019
0029
0026
0021
0022
0020
0026
0024
