4. Mechanical Instructions
Index of this chapter:
4.1
Cable Dressing van Gogh & da Vinci styling (5000 & 6000
series)
4.2 Cable Dressing Matisse styling (8000 series)
4.3 Service Positions
4.4 Assy/Panel Removal Van Gogh Styling (5000 series)
4.5 Assy/Panel Removal da Vinci Styling (6000 series)
4.6 Assy/Panel Removal Matisse Styling (8000 series)
4.7 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing van Gogh & da Vinci styling (5000 & 6000 series)

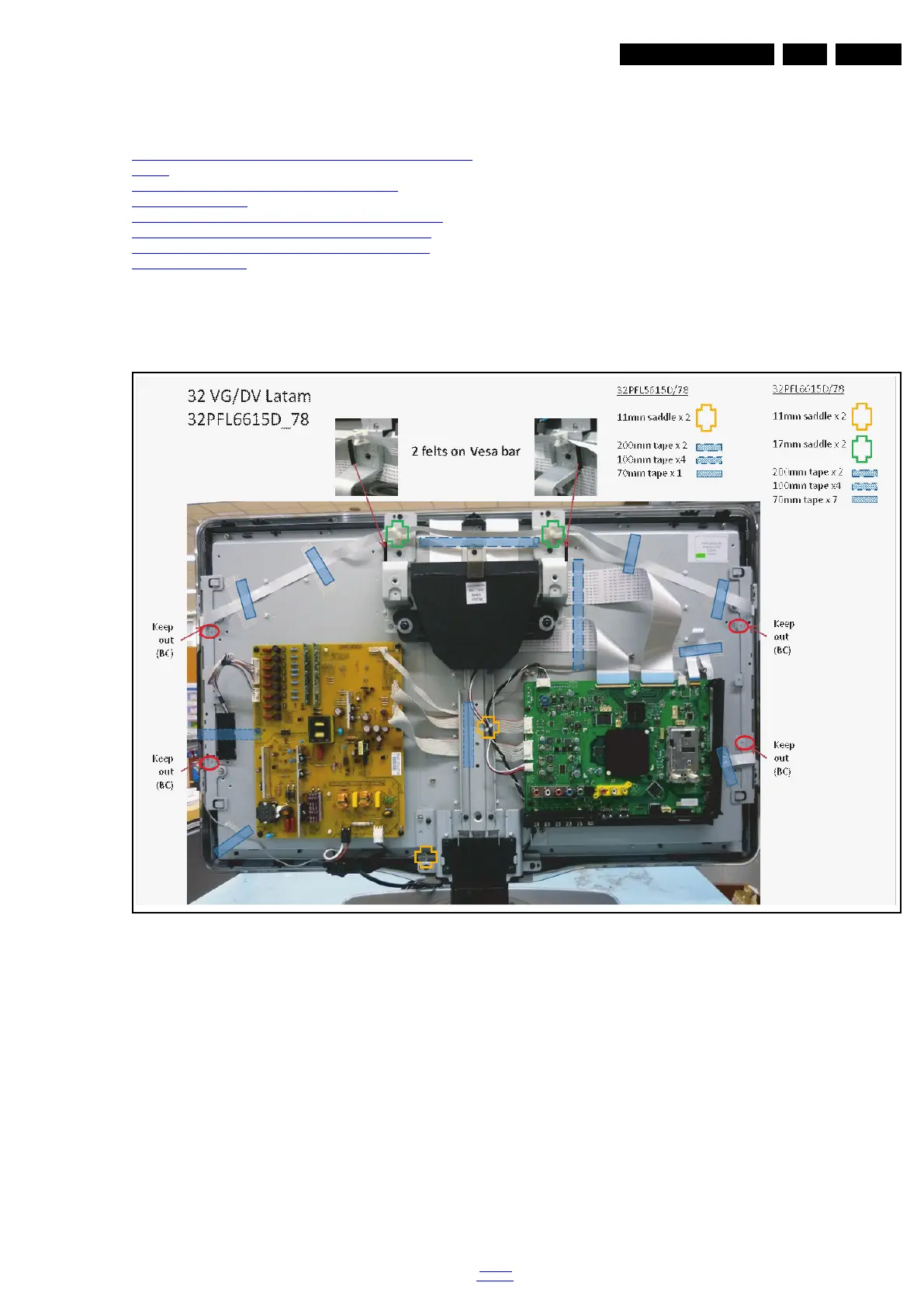

Figure 4-1 Cable dressing 32"
19030_100_100810.eps
