Mechanical Instructions
EN 14 Q552.1L LA4.
2010-Dec-29
back to
div. table
4.3 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.4 Assy/Panel Removal Van Gogh Styling
(5000 series)
The instructions apply to the Q552.1E LA chassis
(46PFL5605H/xx), but are similar for other models.
4.4.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
Note: it is not necessary to remove the stand while removing
the rear cover.
1. Remove all screws of the rear cover.
2. Lift the rear cover from the TV. Make sure that wires and
flat coils are not damaged while lifting the rear cover from
the set.
Special note:
Some models come with mechanical catches at top of the rear
cover. To open them, refer to Figure 4-6
to Figure 4-9 for
details.

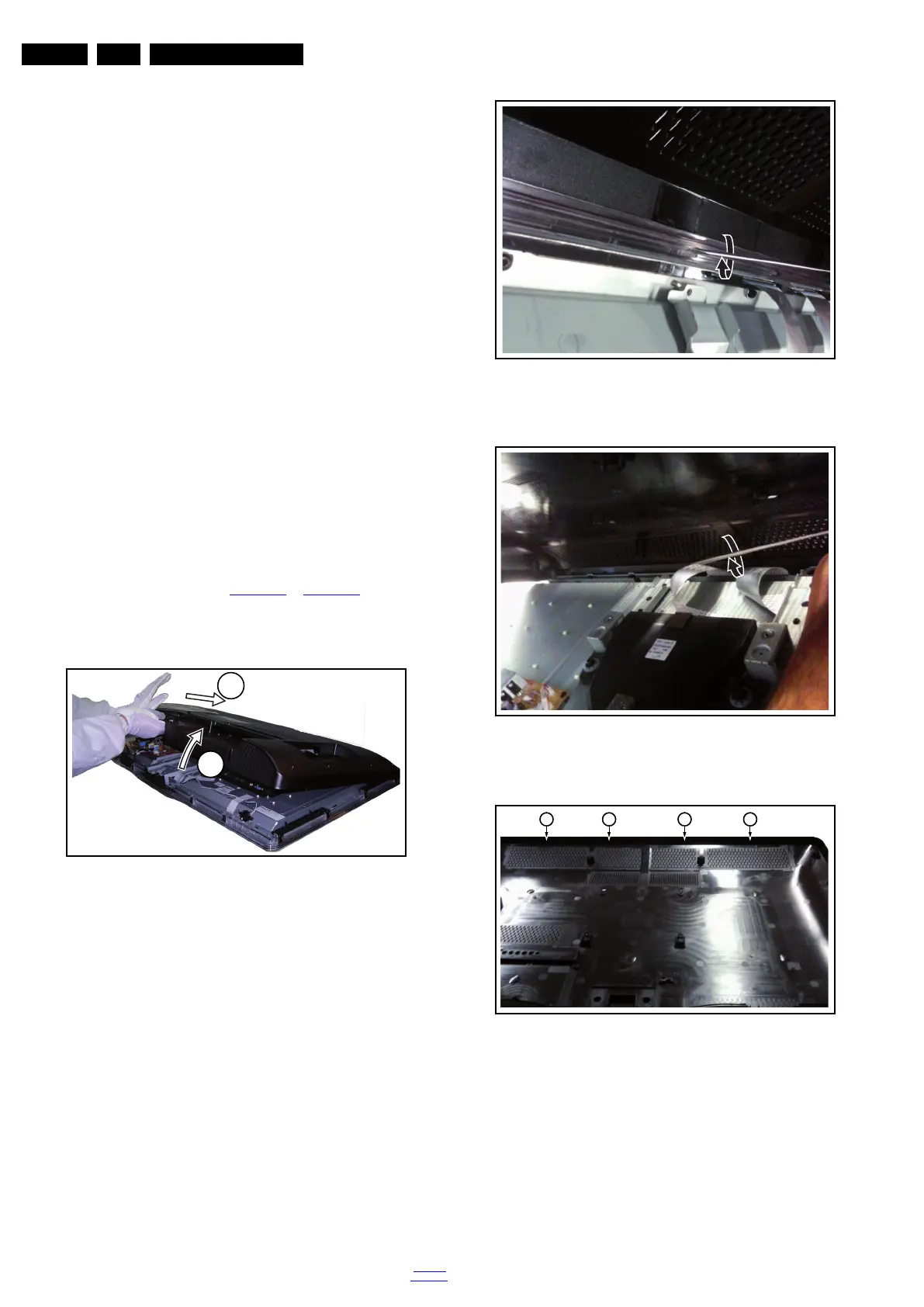

Figure 4-6 Rear cover 40" -1-
Figure 4-7 Rear cover 40" -2-
Figure 4-8 Rear cover 40" -3-
Figure 4-9 Rear cover 40" -4-
1. Lift the rear cover on the bottom [1].
2. Push back the cover [2] to unlock the catches.
3. If the rear cover catches still lock, place a flat screwdriver
between flare and rear cover and turn it until the rear cover
and the flare are disassembled from the catch.
4. The location of the catches are indicated with [3], [4], [5]
and [6].
18770_150_100218.eps
100219
11
2
18770_151_100218.eps
100218
18770_152_100218.eps
100218
18770_153_100218.eps
100317
26252423
