4.5.7 Local Control Board
Refer to Figure 4-23
for details.
1. Unplug the connector on the IR & LED board that leads to
the Local Control board as described earlier.
2. Release the cable from its clamps/tape.
3. Release the clip on top of the unit [1] and take the unit out.
When defective, replace the whole unit.

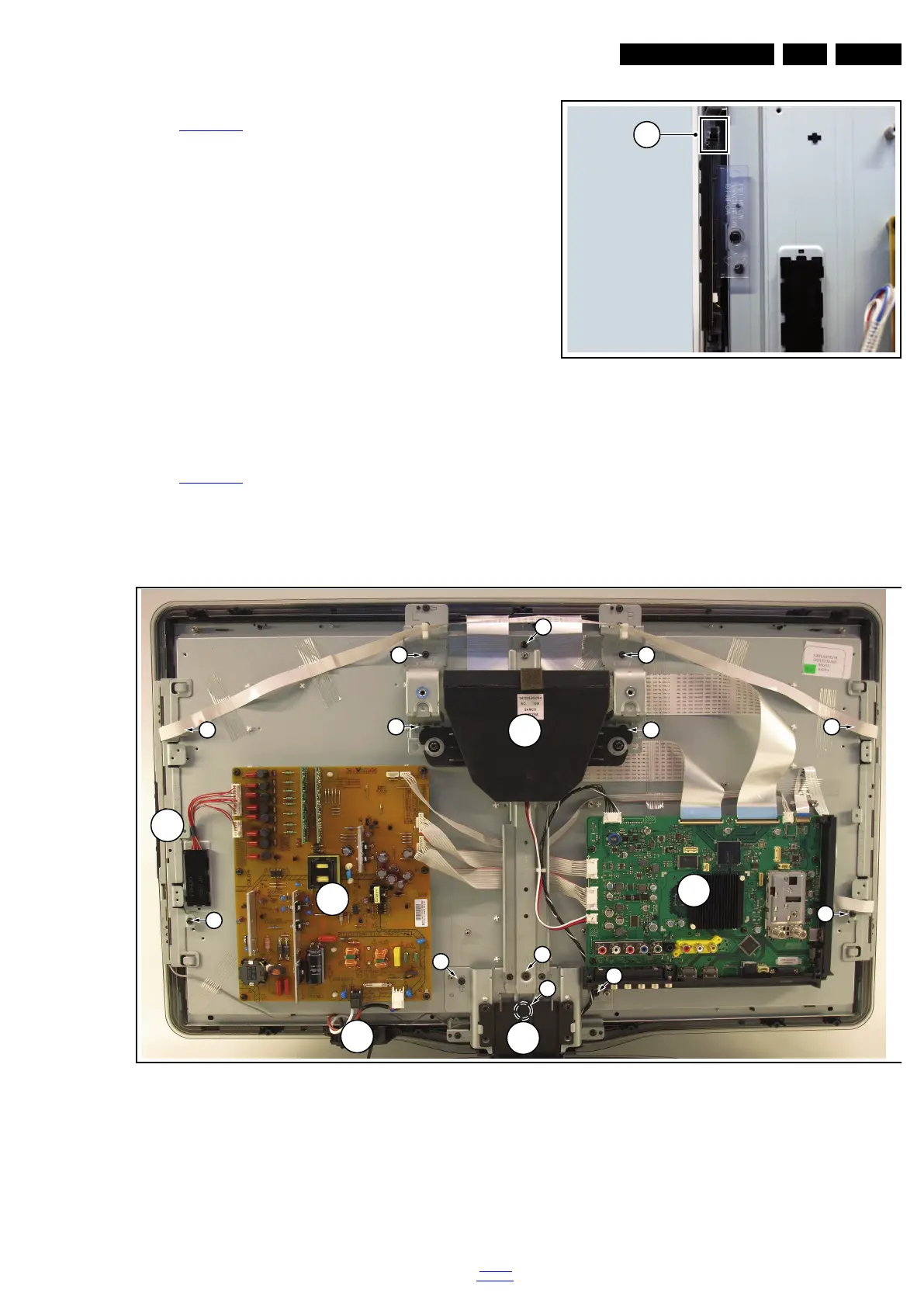

Figure 4-23 Local Control board
4.5.8 LCD Panel
Refer to Figure 4-24
for details.
1. Remove the Stand and IR/LED board [A] as earlier
described.
2. Remove the Speakers/Subwoofer [B] as earlier described.
3. Remove the PSU [C] and SSB [D] as earlier described.
4. Remove the Mains Switch [E] as earlier described.
5. Remove the Local Control board [F] as earlier described.
6. Remove the brackets [1].
7. Remove the clamps [2].
8. Remove the flare.
Now the LCD Panel can be lifted from the front cabinet.
Figure 4-24 LCD Panel removal (based on 32" AL model)
4.6 Assy/Panel Removal Matisse Styling
(8000 series)
The instructions apply to the Q552.1E LA chassis
(40PFL7605H/12), but are similar for other models.
4.6.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
Note: it is not necessary to remove the stand while removing
the rear cover.
1. Remove all screws of the rear cover.
