Philips 32PFS5709/12 - Page 71

Circuit Descriptions
EN 71TPM14.2E LA 7.
2014-Sep-26
back to
div. table

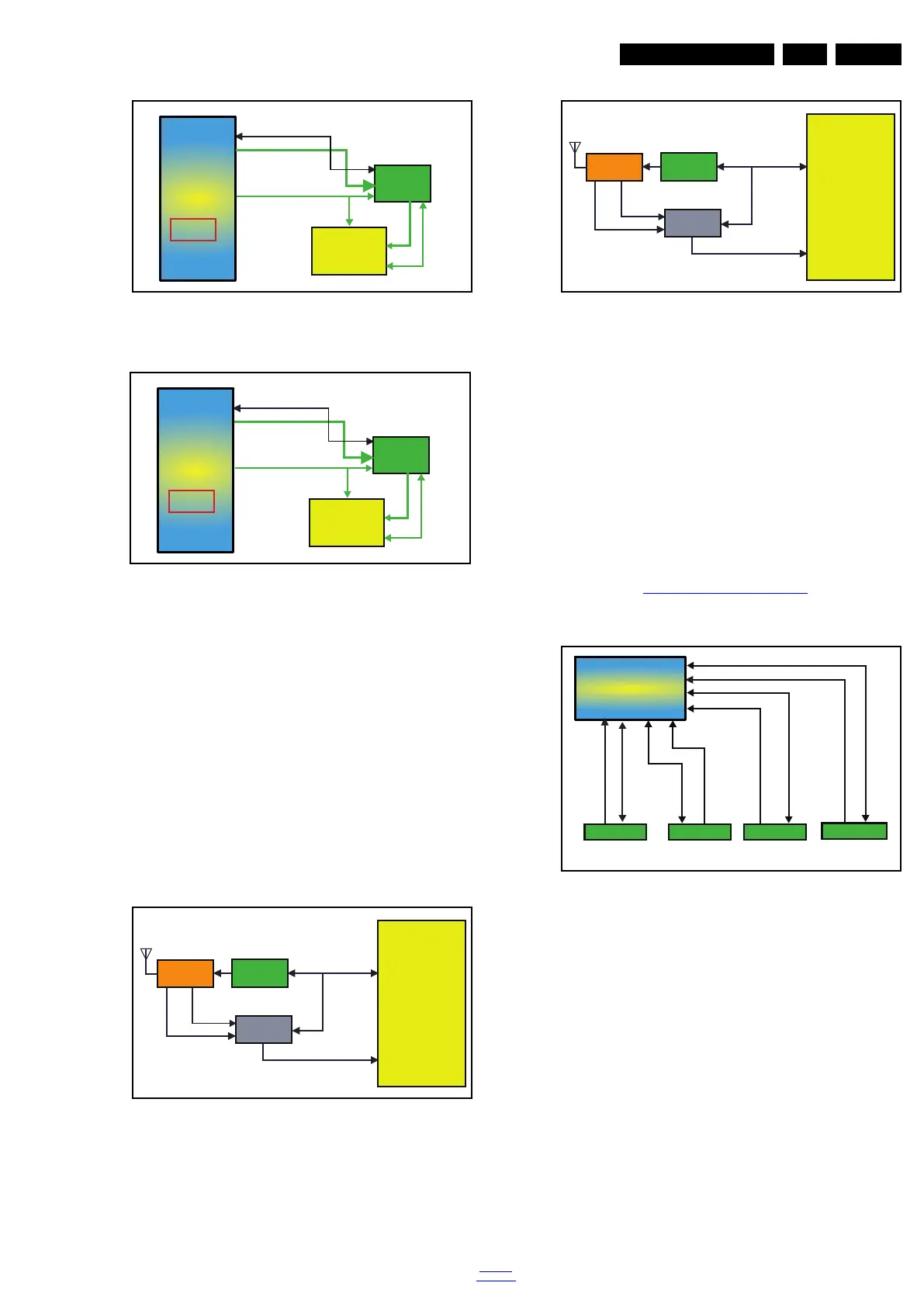

Figure 7-8 Front-End DVB-T2 DTV block diagram
Figure 7-9 Front-End DVB-T2 DTV block diagram[1]
7.5 Front-End Analogue and DVB-S2 reception
7.5.1 Front-END DVB-S2 part
The Front-End for DVB-S2 application consist of the following
key components:
• TUNER EUROPE SUT-ZE221ZN for K series (DVB-S2)
• DEMODULATOR CXD2839ER VQFN-48 for (K model) S2
Demond
• DEMODULATOR CXD2842ER VQFN-48 for (S model) S2
Demond
• SCALER MT5591IVDJ HSBGA-758 TV Processor
Below find a block diagram of the front-end application for
DVB-S2 part.
Figure 7-10 Front-End DVB-S2 block diagram
Figure 7-11 Front-End DVB-S2 block diagram
This application supports the following protocols:
• Polarization selection via supply voltage (18V=horizontal,
13V=vertical)
• Band selection via “toneburst” (22kHz): tone “on”= “high”
band tone “off” = “low” band
• Satellite (LNB) selection via DiSEqC 1.0 protocol
• Reception of DVB-S (supporting QPSK encoded signals)
and DVB-S2 (supporting QPSK, 8PSK, 16APSK and
32APSK encoded signals), introducing LDPC low-density
parity check techniques.
7.6 HDMI
Refer to figure 7-12 HDMI input configuration for the
application.
Figure 7-12 HDMI input configuration
The following HDMI connector can be used:
• HDMI 1: HDMI input (TV digital interface support HDCP)
with digital audio / PC DVI input/ARC
• HDMI 2: HDMI input (TV digital interface support HDCP)
with digital audio / PC DVI input
• HDMI input (TV digital interface support HDCP) with digital
audio / PC DVI input
• +5V detection mechanism
• Stable clock detection mechanism
• Integrated EDID
• HPD control
• Sync detection
• TMDS output control
• CEC control
7.7 Video and Audio Processing - MT5591IVDJ
The MT5591IVDJ is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:
IF
TS DATA
RF_AGC
MT5591
T2 demod
CDX2842ER
IF_AGC
TDSY- G 380D
I
2
C
I
2
C
I
2
C
19610_205.eps
IF
TS DATA
RF_AGC
MT5591
T2 demod
CDX2842ER
IF_AGC
SUT-RE231ZN
I
2
C
I
2
C
I
2
C
19617_202.eps
TS DATA
IP/IN/OP/ON
Tuner I2C
Tuner I2C
System I2C
MT5591
MCU ARM
MPEG/vedio/audio
decoder
Scaling
Vedio enhancement
3D comb
HDMI 1.4
H 264
LNB power
S2 Demond
CDX2839ER
S2 tuner
S2 function
19610_206.eps
TS DATA
IP/IN/OP/ON
Tuner I2C
Tuner I2C
System I2C
MT5591
MCU ARM
MPEG/vedio/audio
decoder
Scaling
Vedio enhancement
3D comb
HDMI 1.4
H 264
LNB power
S2 Demond
CDX2842ER
S2 tuner
S2 function
19617_203.eps
19610_207.eps
MTK5591
HDMI1
HDMI2
HDMI SIDE
HDMI SIDE
CN501
CN502 CN503
U504
BRX
RX
RX
RX
I2C
I2C
I2C
I2C
