Philips 32PHS4131/12 User Manual

Mechanical Instructions
EN 9TPN16.3E LA 4.
2016-Oct-28
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal ( for 22"/24"4031 series)
4.4 Assembly/Panel Removal (for 24PFS5231/12)
4.5 Assembly/Panel Removal (for 32"/43"/49"Pxx4131)
4.6 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

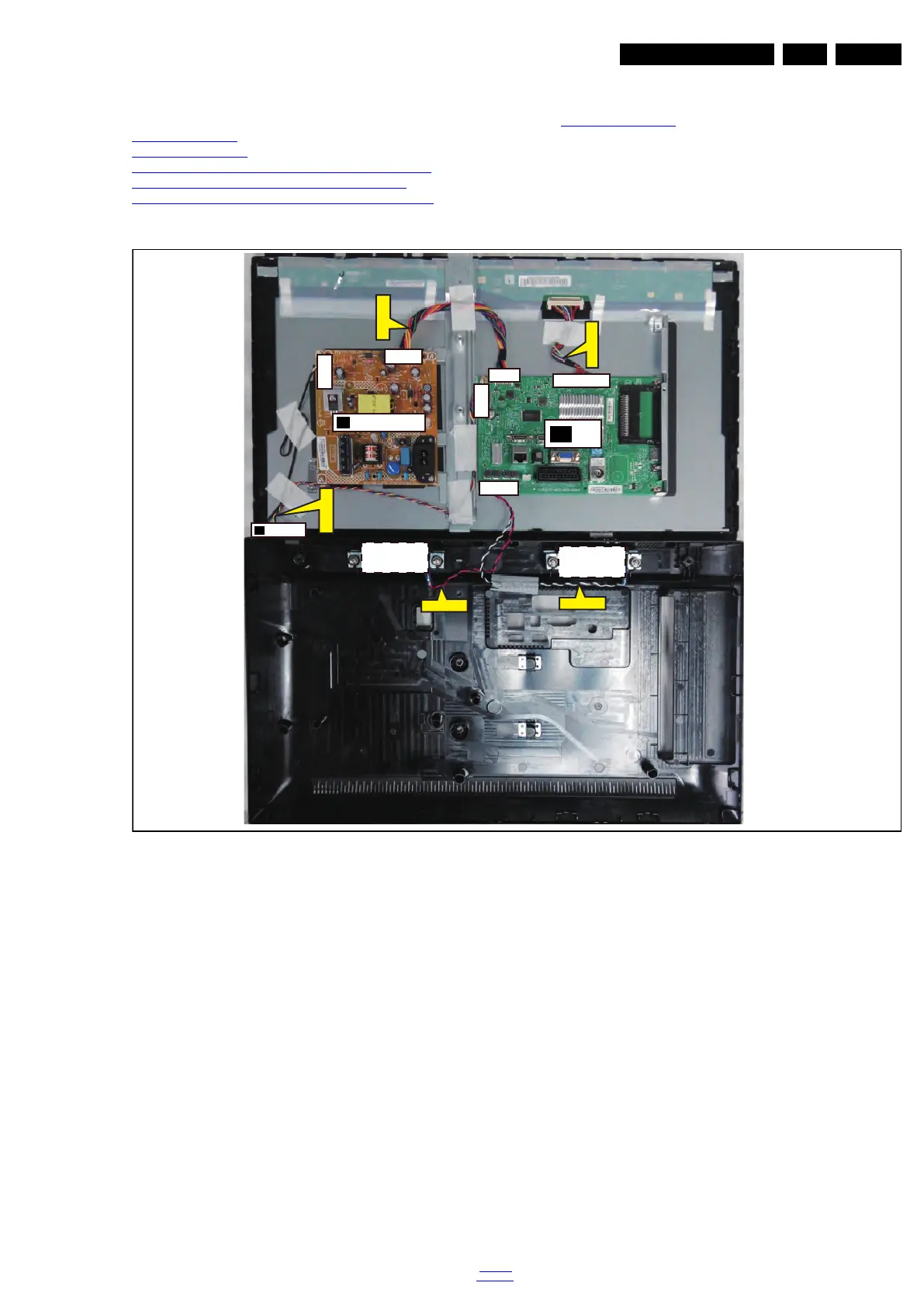

Figure 4-1 Cable dressing (22" 4031 series)
20210_100.eps
CN601
CN401
CN8605
CN9101
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN408
ECN601
ECN601
ECN701
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
IR/LED BOARD
(1056)
J

Philips 32PHS4131/12 Specifications

General

Screen Size	32 inches
Display diagonal	80 cm
Resolution	1366 x 768 pixels
Display Technology	LED
Screen shape	Flat
Aspect ratio	16:9
Brightness	250 cd/m²
Response time	8 ms
Dynamic contrast ratio marketing name	Dynamic contrast
Display diagonal (metric)	80 cm
Tuner type	Analog & Digital
Analog signal format system	PAL, SECAM
Number of speakers	2
RMS rated power	16 W
HDMI Ports	2
USB Ports	1
USB 2.0 ports quantity	1
Component video (YPbPr/YCbCr) in	1
Digital audio optical out	1
Headphone outputs	1
Common interface Plus (CI+)	Yes
HDMI version	1.4
Consumer Electronics Control (CEC)	Yes
Electronic Programme Guide (EPG)	Yes
Teletext function	Yes
Teletext	1000 pages
Picture processing technology	Digital Crystal Clear
USB recording	Yes
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Energy efficiency class	A+
AC input voltage	220-240 V
AC input frequency	50/60 Hz
VESA mounting	Yes
VESA mounting interfaces	100 x 100 mm
Colour of product	Black
Smart TV	No
Refresh Rate	60 Hz
Digital signal format system	DVB-T, DVB-C
Width	73.4 cm
Width (with stand)	73.4 cm
Height (with stand)	455.2 mm
