2. Setting up the monitor
Description of the On Screen Display
What is On-Screen Display (OSD)?
On-Screen Display (OSD) is a feature in all
Philips LCD monitors. It allows an end user
to adjust screen performance or select
functions of the monitors directly through
an on-screen instruction window. A user
friendly on screen display interface is
shown as below:
 

 




 

 






Basic and simple instruction on the
control keys
To access the OSD menu on this Philips
Display simply use the single toggle
button on the backside of the Display
bezel. The single button operates like a
joystick. To move the cursor, simply toggle
the button in four directions. Press the
button to select desired option.
The OSD Menu

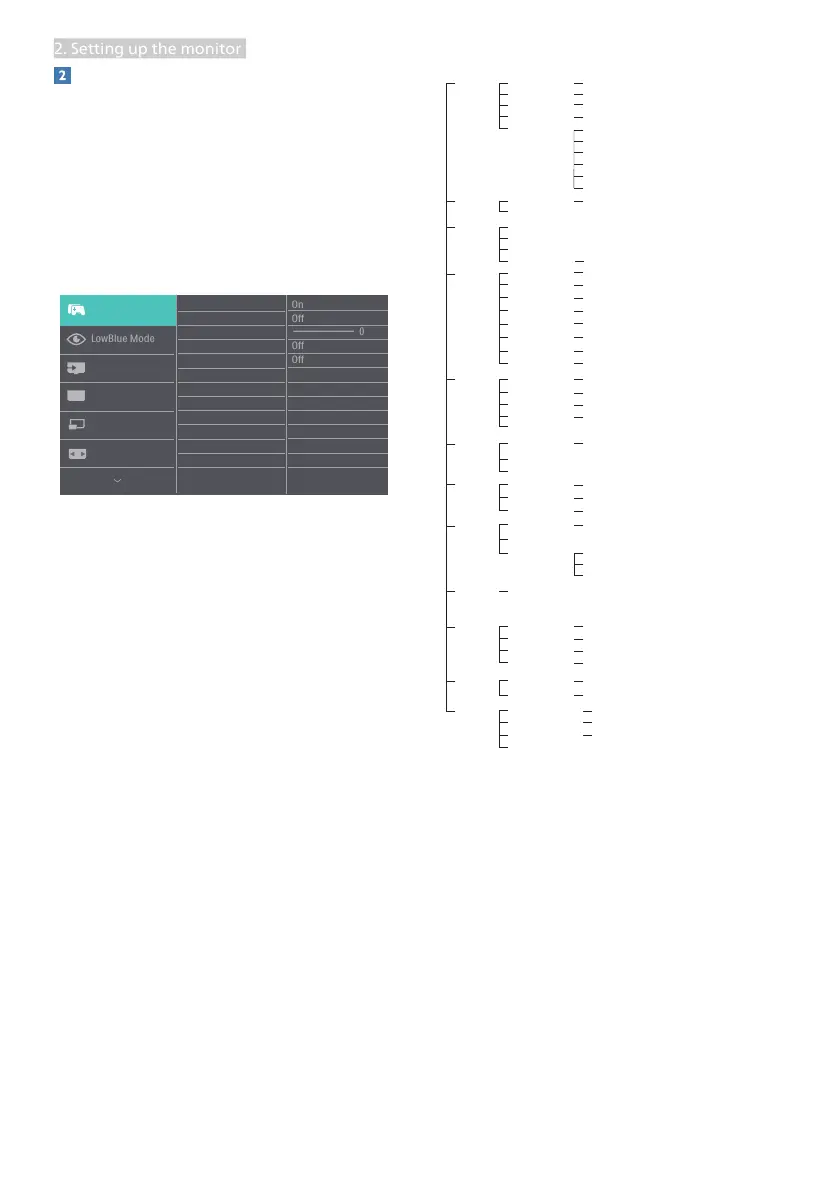

Below is an overall view of the structure of
the On-Screen Display. You can use this as
a reference when you want to work your
way around the dierent adjustments
later on.
Main menu Sub menu
OSD Setting
USB Setting
Language
Color
Audio
PIP / PBP
LowBlue
Mode
Input
Horizontal
Vertical
Transparency
OSD Time Out
USB-C Setting
Color Temperature
sRGB
User Dene
USB Standby Mode
SmartContrast
Gamma
Contrast
Brightness
Mute
Audio Source
PIP / PBP Mode
Swap
PIP / PBP Input
0 ~ 100
0 ~ 100
O, 1, 2, 3, 4
5s, 10s, 20s, 30s, 60s
Native, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K
Red: 0 ~ 100
Green: 0 ~ 100
Blue: 0 ~ 100
On, O
0 ~ 100
On, O
On, O
1.8, 2.0, 2.2, 2.4, 2.6
0 ~ 100
O, PIP, PBP
Sharpness
0 ~ 100
O
On 1, 2, 3, 4
DisplayPort
USB C
Auto
Pixel Orbiting On, O
High Data Speed, High Resolution
Setup
Resolution Notication
Smart Power
Reset
Information
On, O
On, O
Yes, No
English, Deutsch, Español, Ελληνική, Français, Italiano, Magyar, Nederlands,
Português, Português do Brasil, Polski , Русский, Svenska, Suomi, Türkçe,
Čeština, Українська, 简体中文, 繁體中文,日本語,한국어
Over Scan
On, O
PIP Size
HDMI 2.0, DisplayPort, USB C
PIP Position
Small, Middle, Large
Top-Right, Top-Left, Bottom-Right, Bottom-Left
HDMI, DisplayPort, USB C
HDMI 2.0
SmartImage
FPS, Racing, RTS, Gamer1, Gamer2, LowBlue Mode, EasyRead, O
Game Setting
MPRT
Adaptive Sync
SmartResponse
SmartFrame
MPRT Level
O, Fast , Faster, Fastest
On, O
On, O
On, O
0 ~ 20
Size ( 1, 2, 3, 4, 5, 6, 7 )
Brightness (0~100)
Contrast (0~100)
H. position
V. position
SmartSize
Panel Size
1:1
Aspect
17'' (5:4)/ 19'' (5:4)/ 19''W (16:10)/ 22''W (16:10)/ 18.5''W (16:9)
19.5''W (16:9)/ 20''W (16:9)/ 21.5''W (16:9)/ 23''W (16:9)/ 24''W (16:9)
27''W (16:9)/ 34'W
On, O
Volume 0 ~ 100
