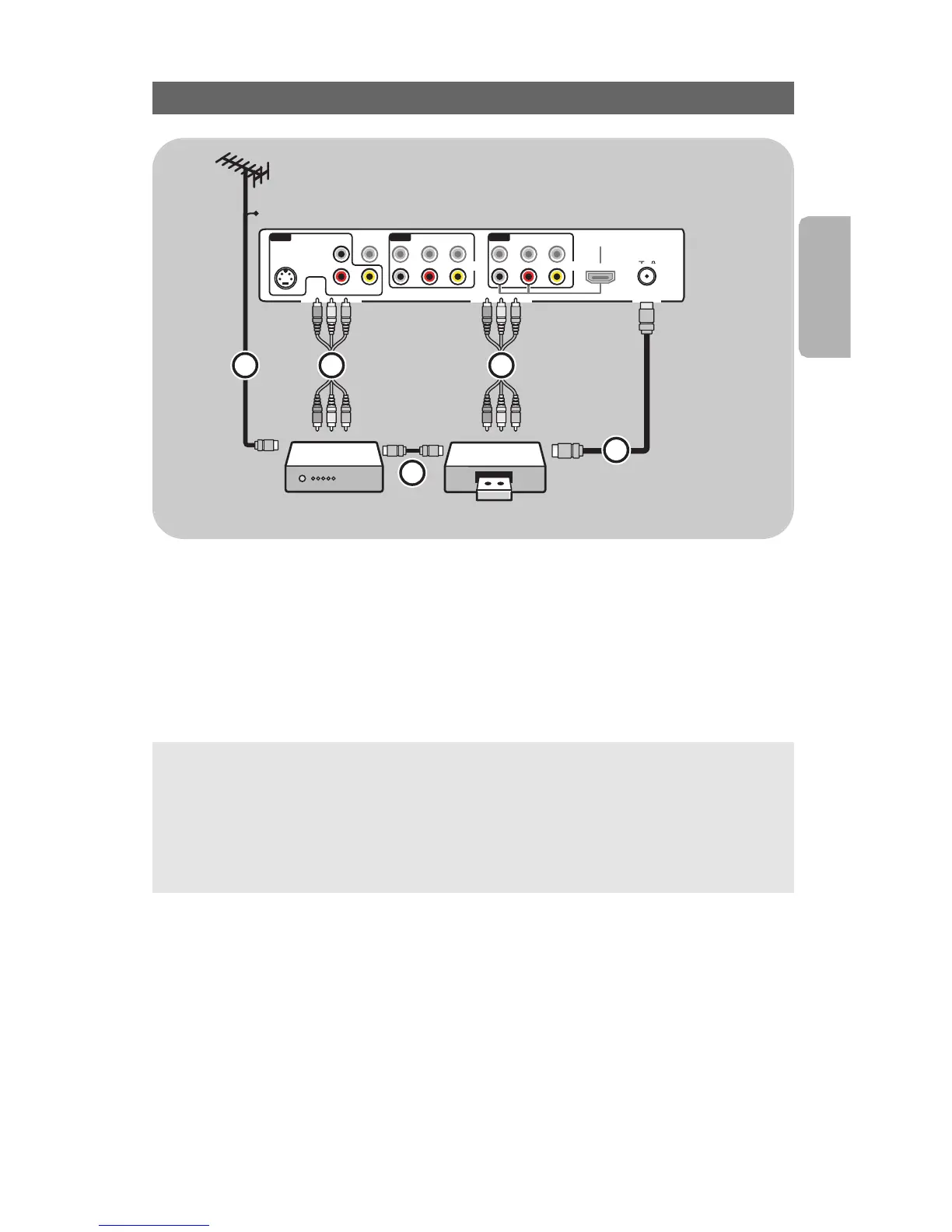

Connect a recorder and other A/V devices
1. Connect the RF antenna cable 1 of the RF IN socket of your other AV device.
2. Connect the RF output of the AV device to the RF input of the recorder 2.
3. Connect another RF cable 4 from the output
OUT of your recorder to the TV’s input
CABLE/ANTENNA 75 Ω x jack.
4. To obtain better quality, also connect the Video,Audio left and Audio right cables of both devices to
AV1,AV2 or AV3 (VIDEO, AUDIO L and R,) 3 and 5.
5. Select the equipment you have connected in the Setup menu, Select your source, p. 20 and link
them to the
AV connectors you have connected your equipment to.
Notes:
- cables are often color-coded to connectors. Connect red to red, white to white....
- if your recorder has an S-VHS video jack:
For improved picture quality, connect an S-video cable with the
S-VIDEO input of AV3 and connect
the audio cables to the
AUDIO L and R input jacks of AV3.
When using the S-VIDEO connector do not connect any device to the AV3 VIDEO jack;
- in case of mono equipment, only the left loudspeaker reproduces sound.
Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
