TPT1.1A LA
1. Technical Specifications and Connections and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
Notes:
Figures below can deviate slightly from the actual situation,
due to the different set executions.
Specifications are indicative (subject to change).
·
·
2 Sound1.1.
Fig1-1
1.2.2 Input signal
1.2.2.1 Signal type
Display type : LCD
Screen size : 37"(94cm), 16:9
42"(107cm), 16:9
Resolution (HxV pixels) : 1280(H) x 768(V)
Contrast ratio : 1000:1 (37")
1200:1 (42")
Light output (cd/m2) : 500
Response time (ms) : 8ms(Typ.)
Viewing angle (HxV degrees) : 178/178
Tuning system : WE (PAL B/G/D/K/I ; SECAM L/L)
Supported video formats : 640 x 350 60Hz
640 x 480 60Hz
720 x 400 60Hz
800 x 600 60Hz
832 x 624 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1280 x 768 60Hz
HD support timing : 1920X1080I 60Hz
1920X1080I 50Hz
1280X720P 60Hz
1280X720P 50Hz
720X576P 50Hz
720X480P 60Hz
720X576i 50Hz
720X480i 60Hz
Sound systems : Stereo / Virtual Surround
Maximum power : 2 x 10W
1.1 Technical Specifications
1.1.1 Technical Specifications
Power Supply
-AC/DC Power adapter : 90V ~ 264VAC,50/60±2Hz
-Power consumption : 250W/Max(at PC mode),
250W/Max(at TV mode) with Audio.
-Power cord length : 1.8m
-Power cord type : European type and China type
-Power indicator : LED (On: Blue,Sleeping mode: Amber)
-Auto power saving : <2W
-Stand-by (W) : <2W
Horizontal scan
-Horizontal : 30 - 63KHz
-Vertical : 50 - 75Hz
Dimensions (WxHxD in mm) : 924 x 688.7 x 288
Ambient conditions:
-Temperature :0°Cto40°C
-Humidity :10 to 90%
Miscellaneous1.1.3
1.2 Connections

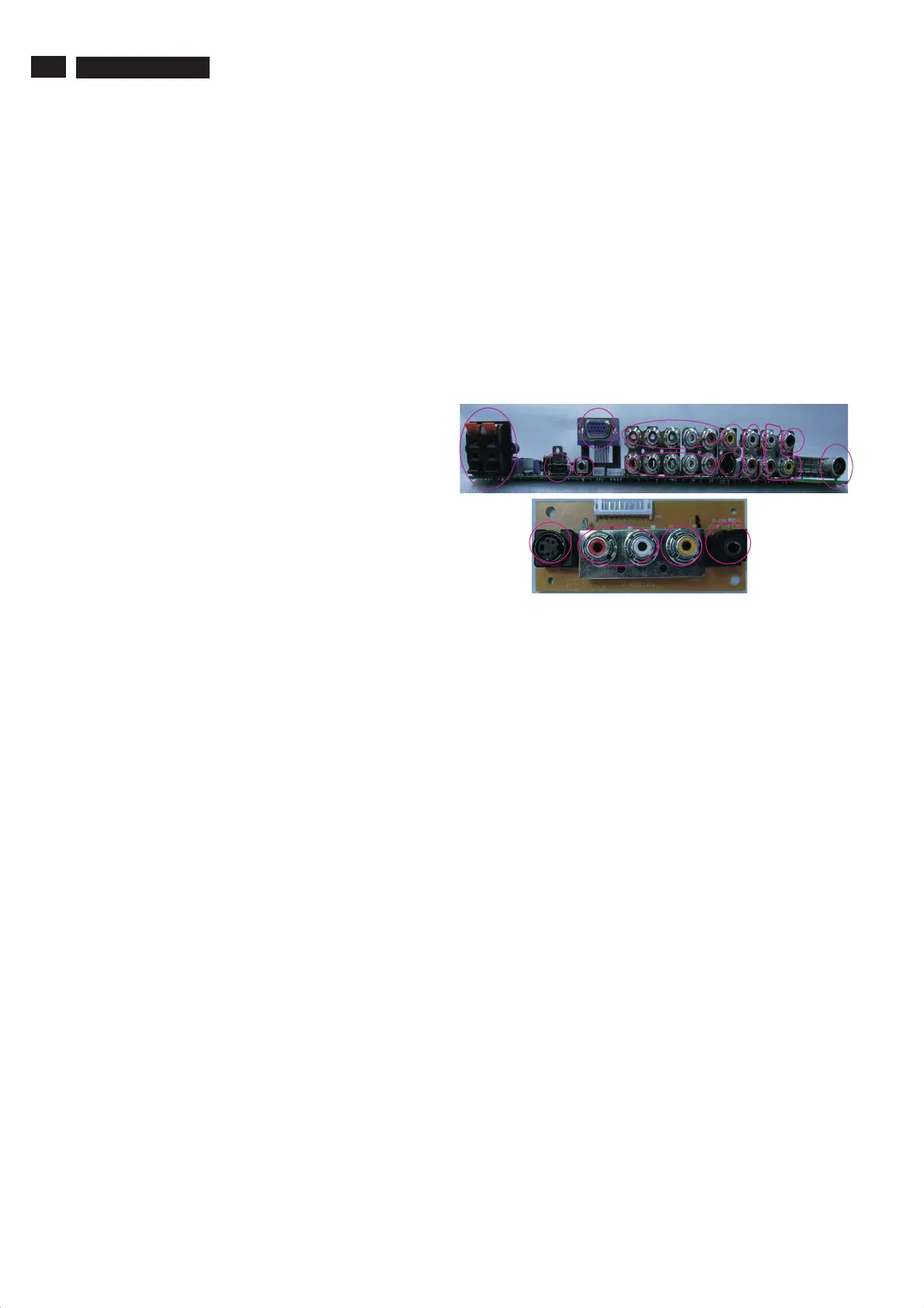

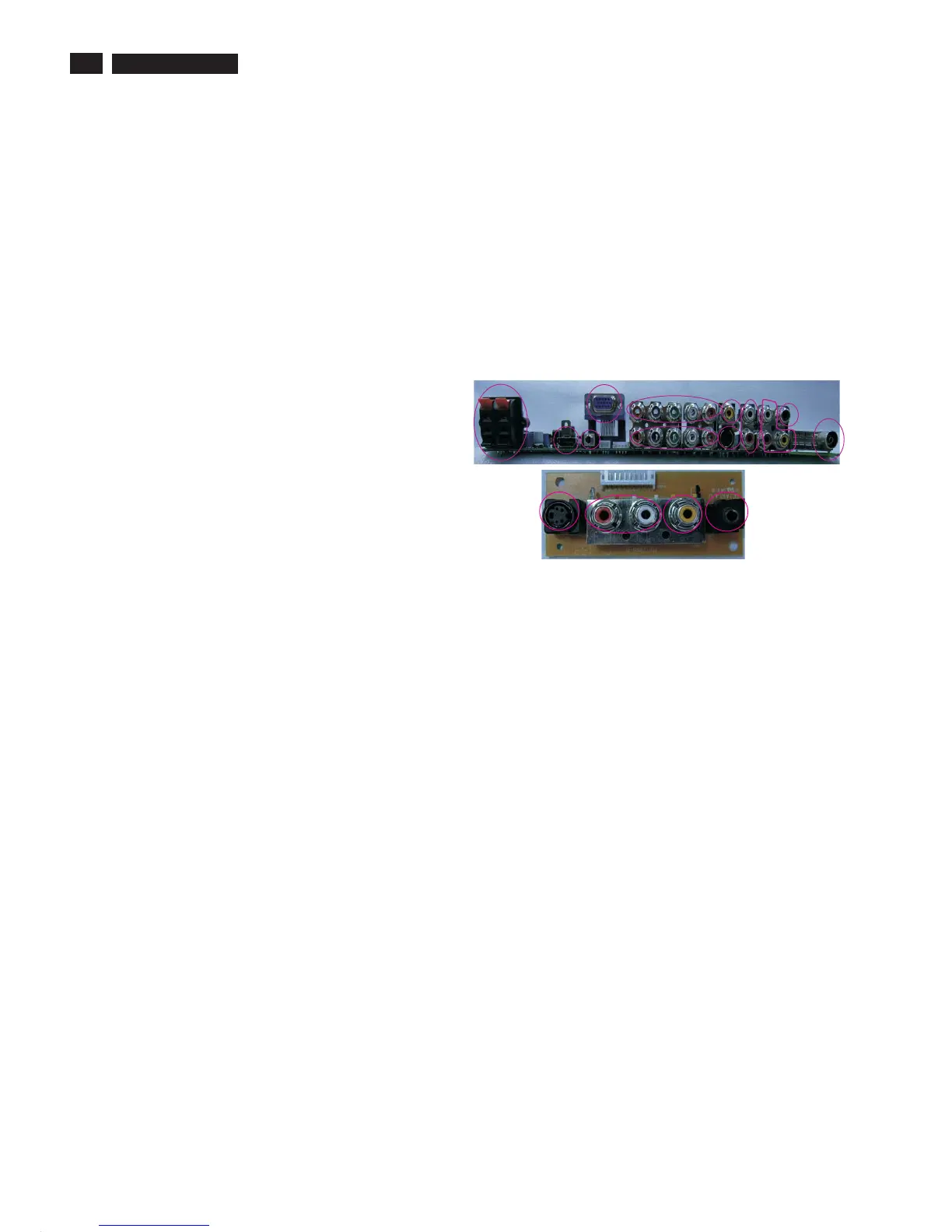

1.2.1 Signal Connector
1. Technical Specifications, Connections and Chassis Overview
1. Tuner: PAL D/K for China model
Multi-standard for WE model
2. SPDIF OUT : Digital audio output (HDMI audio output)
3. PVR OUT : Composite video output (CVBS) and audio R/L(RCA jack)
4. AV audio IN : AV1 and S-Video audio R/L(RCA jack)
5. AV1 IN : Composite video input (AV1)
6. S-Video 1 IN : S-video input (S-Video 1)
7. Comp video 1 IN : HDTV input with YPbPr format with audio R/L.
8. Comp video 2 IN : HDTV input with YPbPr format with audio R/L.
9. PC audio IN: audio R/L(mini-jack).
10. PC IN: VGA input (D-SUB connectors)
11. HDMI : digital video and audio input
12. speaker output : external speakers output connectors
13. earphone : earphone jack
14. AV2 IN : Composite video input (AV2 side)
15. AV audio IN : AV2 and S-Video side audio R/L(RCA jack)
16. S-Video IN : S-video input (S-Video side)
12
11
10
9
7
8
5
6
4
3
2
1
PC Signal type
Analog Video : 0.7 Vp-p linear, positive polarity
Separate Sync. : TTL level, separate, positive or negative
polarity
Signal source: pattern generator format as attachment.
(Table 1 to 6) Reference generator: Quantum Data 801GD,
802G or 802R Pattern Generator
A. PC Audio input
Location: Rear down side
Specification
Audio L/R input
- Nominal : 0.5 V rms.
-Maximum :1.5Vrms.
- Impedance > 10 k W.
Note : the input will be overloaded when the
signal > 1.5 V rms.
Connector type : 3.5 mm mini Jack
ESD-protected : 15 kV
TV Signal type
a. RF Signal : Aerial input / 10mV(30-100dBuV)
b. Video signal : CVBS input ( RCA jack) / 1Vpp (300mV-
sync, 700mV-video.)
13
1415
16
