7. Circuit Diagrams and PWB Layouts

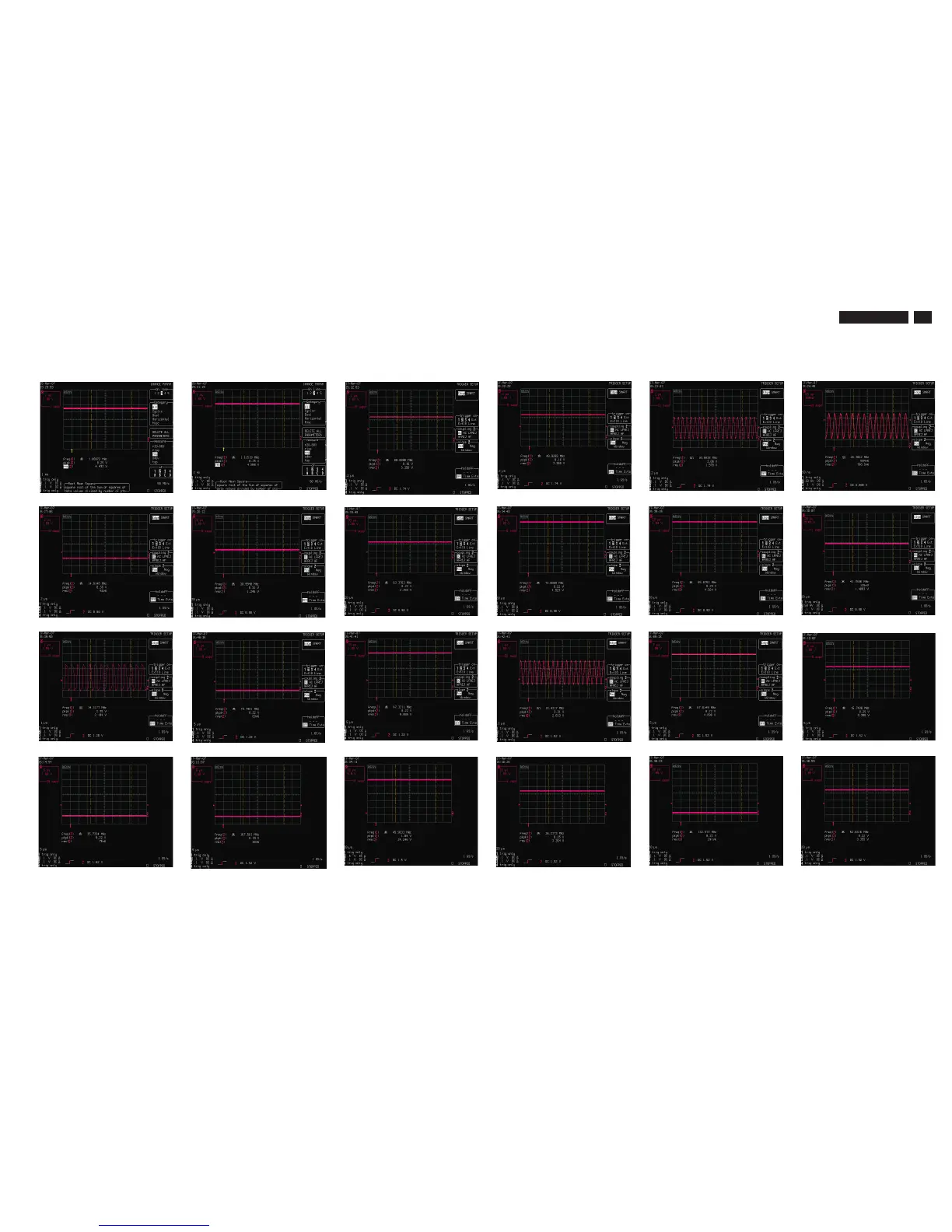

Waveform Diagram
TPT1.1A LA
1.BDDCWP_PC(U1102 Pin 7)
2. +5V_Tuner(U1201Pin3)
3.CPU_RESET(U4103 Pin 2)
4. E_PAGE(U4101Pin7)
5.10MHz(X4101Pin1)
6. 28.322MHz(X4201Pin1)
7. RESET_H(R4301)
8.PX_VDDM(C4307)
9. DDCWP_HDMI(U5101Pin7)
10. HDMI1_5V(U5101Pin8)
11. HDMI2_5V(U5102 Pin 8)
12. +1.5V(C5124)
13.14.3181MHz(X5201Pin1)
14.ADC_RESET(R5201)
15. +5V_MSP(C6203)
16.18.432MHz(X6201Pin1)
17. RESET(U6202 Pin 16)
18. SOUND_EN(U6301 pin 44)
19. SOUND_MUTE(U6301Pin45)
20. FAULT(U6301Pin46)
21. +24V_AMP(C6365)
22.POWER_ON(R7126)
23.LED_R(R7119)
24.LED_G(R7120)
