Technical Specs, Diversity, and Connections
EN 3TPS10.1A LA 2.
2013-Jul-05
back to
div. table
2.3 Connections

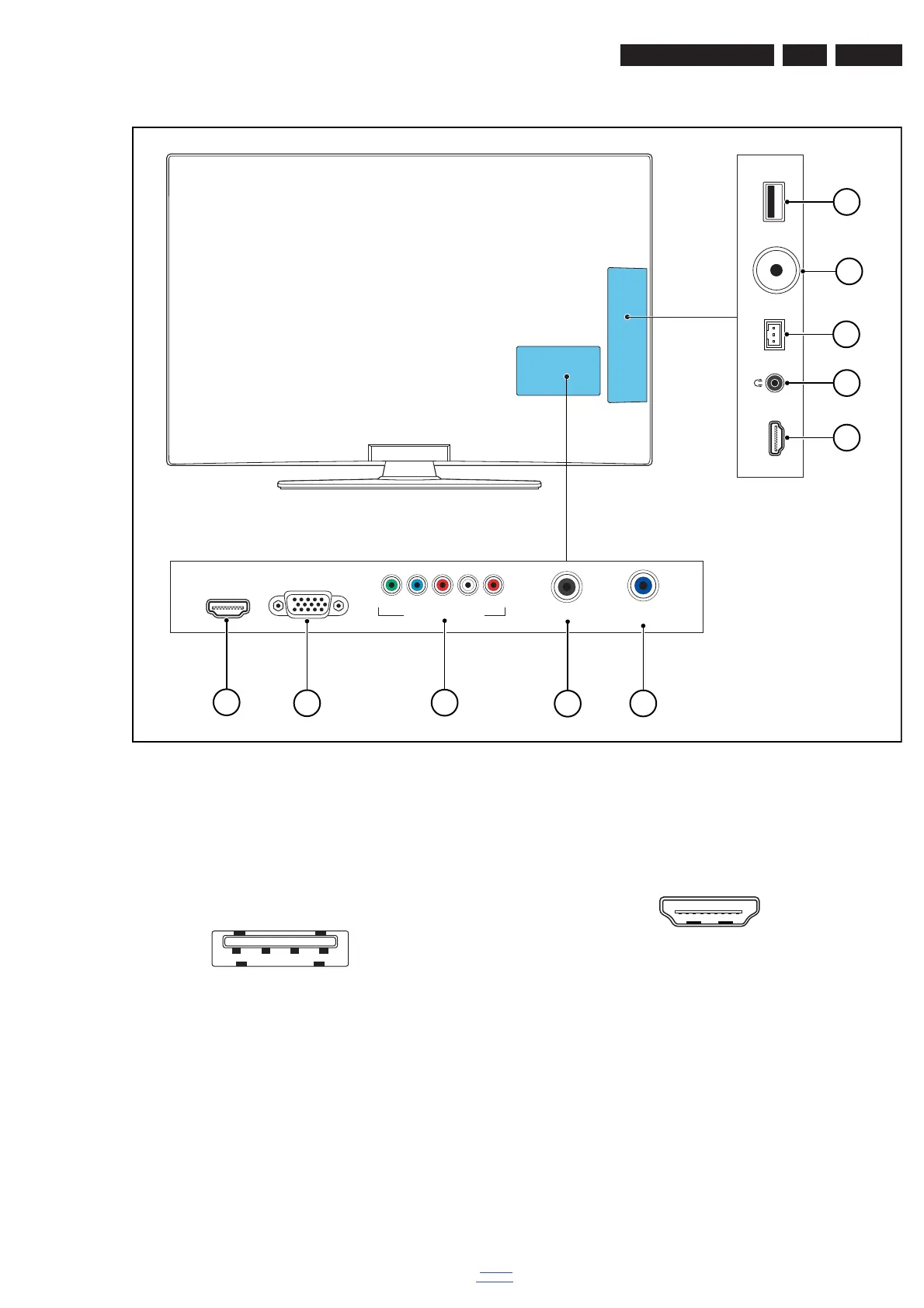

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - USB2 2.0
Figure 2-2 USB (type A)
1 - +5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
2 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
3 - Service / UART
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
4 - Head phone (Output)
Bk - Head phone 80 - 600 W / 10 mW ot
5 - HDMI 2: Digital Video - In, Digital Audio with ARC -
In/Out
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
VGA
Y/VEDIO Pb Pr L R
COMPONENT/VEDIO IN
ANTENNA
SERV.U
USB
HDMI 2
HDMI 1
AUDIO
PC IN
VEDIO OUT
19450_001_130124.eps
130124
1
2
3
4
5
6
7
8
9
10
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
