Philips 39PFL3008/98 - Page 60

EN 60TPS10.1A LA 10.
Circuit Diagrams and PWB Layouts
2013-Jul-05
back to
div.table

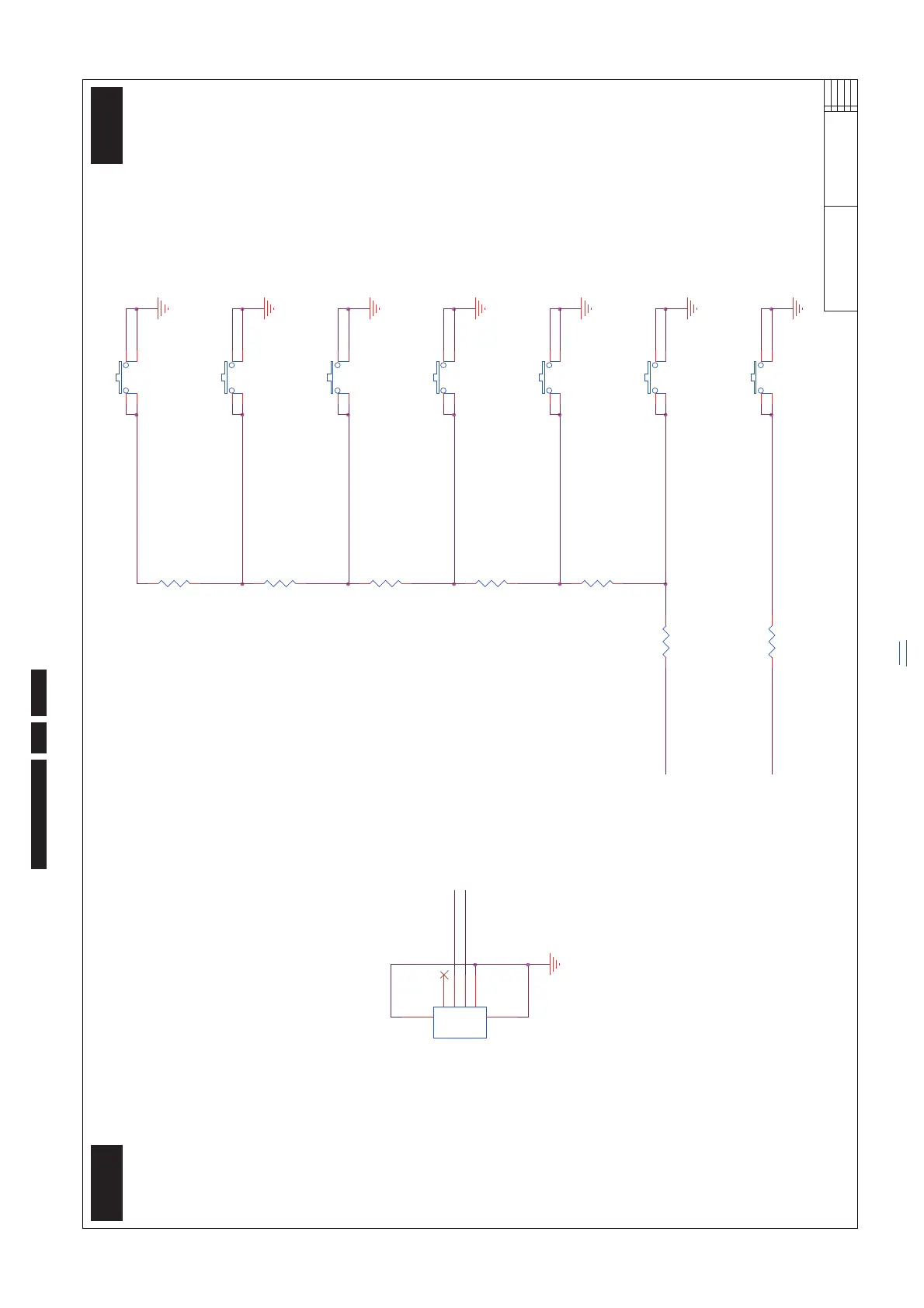

10.5 E 715G5711 Keyboard control panel 10-5-1 Key Panel
19450_521_130111.eps
130117
E E
2012-04-27
A
Key Panel
Key Panel
715G5711
FUNC_KEY
PWR-SW
R05 750OHM +-1% 1/8W R04 1K 1/8W 1% R01 7K5 1/8W +/-1% R03 1K8 +/-1% 1/8W
R06 750OHM +-1% 1/8W
R02 2K7 1/8W 1%
R07 750OHM +-1% 1/8W
SW01
TACT SW FWRD H1.5MM
CN01
CONN
1 2 3 4
65
FUNC_KEY PWR-SW
SW02
TACT SW FWRD H1.5MM
SW03
TACT SW FWRD H1.5MM
SW04
TACT SW FWRD H1.5MM
SW05
TACT SW FWRD H1.5MM
SW06
TACT SW FWRD H1.5MM
SW07
TACT SW FWRD H1.5MM
