Philips 42HF9320A - Connecting Home Theatre Systems

Connections 41
ENGLISH

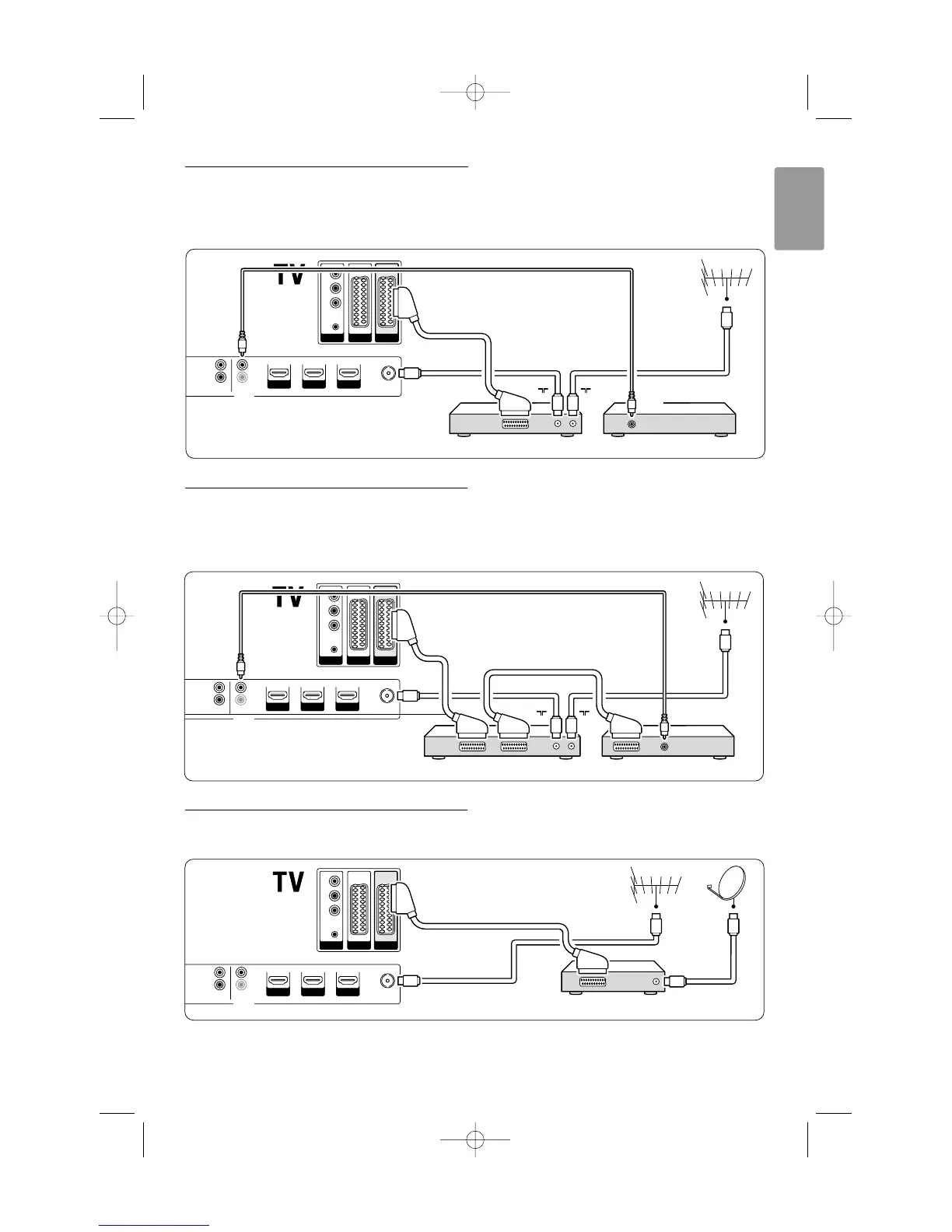

7.3.4 DVD Recorder and Home Theatre
System
Use a scart cable, 2 antenna cables and 1 digital
audio (cinch) cable.
7.3.5 DVD Recorder and DVD Home
Theatre System
Use 2 scart cables, 2 antenna cables and 1 digital
audio (cinch) cable.
7.3.6 Satellite receiver
Use a scart cable and 2 antenna cables.
EXT 3
Y
Pb
Pr
AUDIO
L/R
HDMI 3HDMI 1 HDMI 2
EXT 1EXT 2
Satellite receiver
AUDIO OUT
L
R
OUT
IN
ANTENN
A
DIGITAL
AUDIO
EXT 3
Y
Pb
Pr
AUDIO
L/R
HDMI 3HDMI 1 HDMI 2
EXT 1EXT 2
AUDIO OUT
L
R
OUT
IN
ANTENN
A
DIGITAL
AUDIO
OUT
Home Theatre SystemDVD Recorder
DIGITAL
AUDIO
IN
IN
OUT
DIGITAL
AUDIO
EXT 3
Y
Pb
Pr
AUDIO
L/R
HDMI 3HDMI 1 HDMI 2
EXT 1EXT 2
AUDIO OUT
L
R
OUT
IN
ANTENN
A
DVD Home Theatre SystemDVD Recorder
IN
OUT
DIGITAL
AUDIO
2675.1 eng 03-08-2007 14:51 Pagina 41
