Philips 42PF7621D/10 - Before You Start; Overview of the Rear Connector Panel; Getting Started

Before you switch on your TV, connect all your peripheral equipment. See To make video and audio
connections, p. 41.
There is a wide range of audio and video equipment that can be connected to your TV. See To make
audio and video connections, p. 41.
EXT1 can handle CVBS, RGB and Audio L/R;
EXT2 can handle CVBS, S-VIDEO, RGB,Audio L/R;
EXT3 can handle YPbPr, RGB H/V and Audio L/R;
HDMI 1 and 2.
Supported video formats: 480i, 480p, 576i, 576p, 720p, 1080i.
3
Getting started
EN
Warning: do not insert the mains cord into the mains at the bottom of the TV and in a wall socket
or hang the TV on the wall before all connections are made.

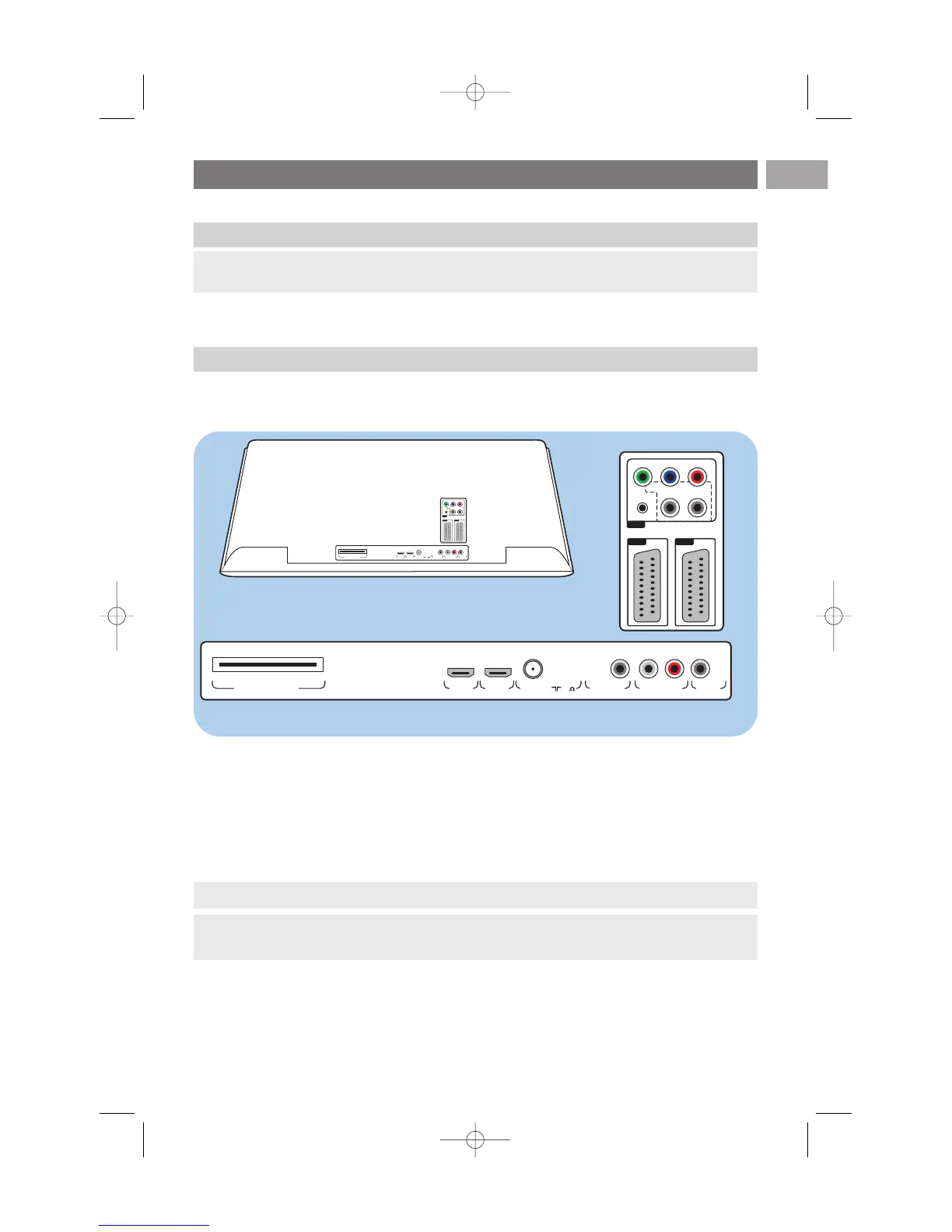

PrPbY
RBG
AUDIO L/R
HV
EXT3
EXT1EXT2
EXT2 EXT1
EXT3
COMMON INTERFACE HDMI 1
HDMI COMMON INTERFACE ANTENNA
AUDIO OUTDIGITAL
AUDIO
IN
HDMI 2 ANTENNA
DIGITAL AUDIO IN L o AUDIO OUT o ROUT AUDIO
o DIGITAL
75
oooo
PrPbY
RBG
AUDIO L/R
HV
EXT2 EXT1
EXT3
COMMON INTERFACE HDMI 1 HDMI 2 ANTENNA
DIGITAL AUDIO IN L o AUDIO OUT o ROUT AUDIO
o DIGITAL
75
oooo
Warning: disconnect all power sources before making any connections.
Tip: it is preferable to connect peripherals with RGB output to EXT1 or EXT2 as RGB provides a
better picture quality.
