Philips 43PUT6101/12 - Front-End Tuner and HDMI Interface Descriptions

Circuit Descriptions
EN 36 TPL16.1E LA7.
2016-Sep-23
back to
div.table

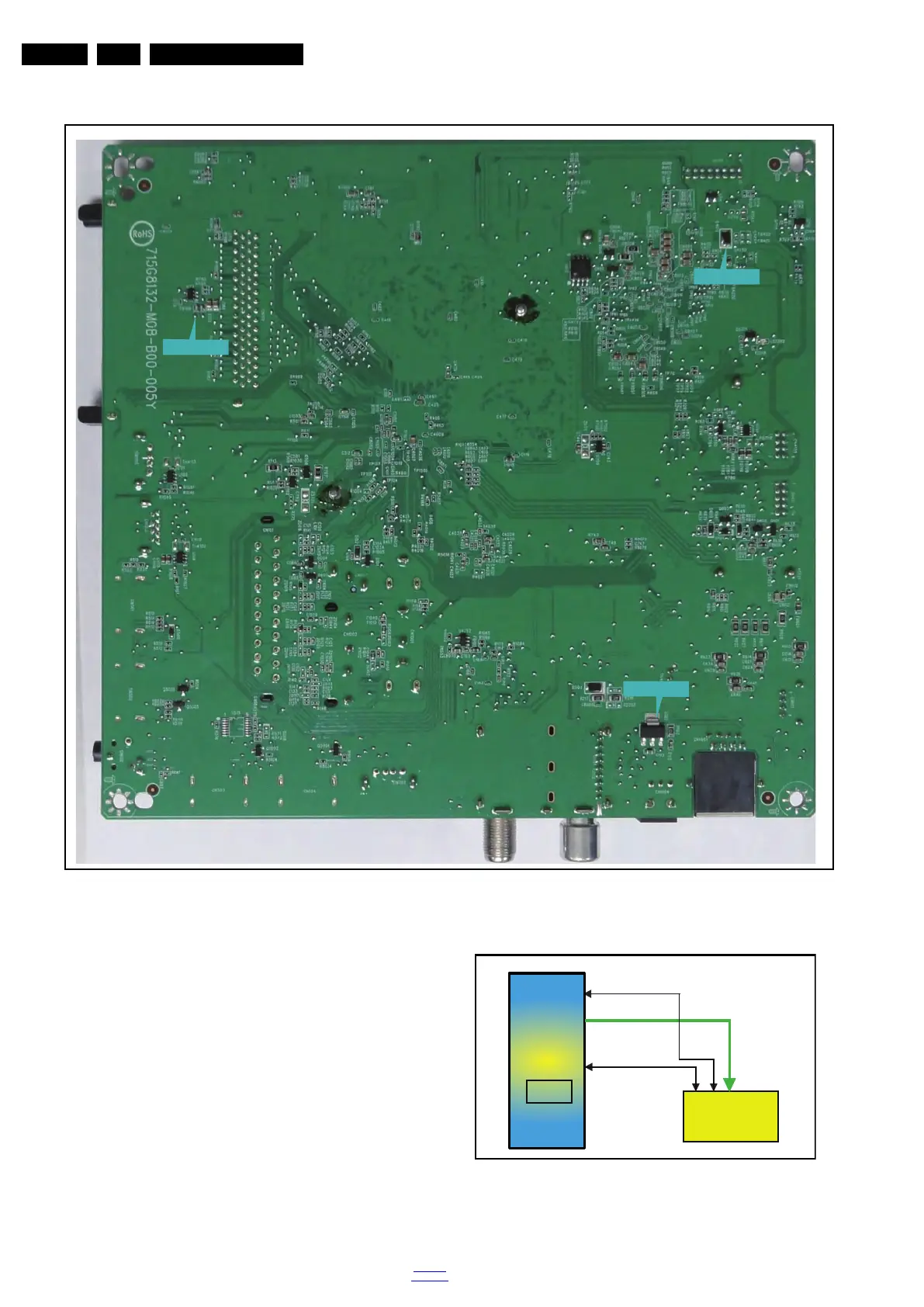

Figure 7-5 Power SSB Bottom View
7.4 Front-End Analogue and DVB-T/T2, DVB-C,
DTV-S2
reception
7.4.1 Front-End Analogue and DVB T/C reception
The Front-End for analogue tuner consist of the following key
components:
• TUNER EUROPE SUT-RE231ZN
• SCALER MT5596LGIJ HSBGA-757
Below find a block diagram of the front-end application for
analogue part.
Figure 7-6 Front-End Analogue block diagram
20110_209.eps
FB106,CI2_VCC
D4012,WI-FI_VCC
U102,TUNER3.3V
IF
IF_AGC
RF_AGC
MT5596L
IF_AGC
SUT-RE231ZN
I
2
C
I
2
C
20110_203.eps
