7.4.2 DTV T2 reception
The Front-End for DVT part consist of the following key
components:
• TUNER EUROPE SUT-RE231ZN
• SCALER MT5596LGIJ HSBGA-757
• DEMODULATOR CXD2837ER-T4 VQFN 48 for T and S
models

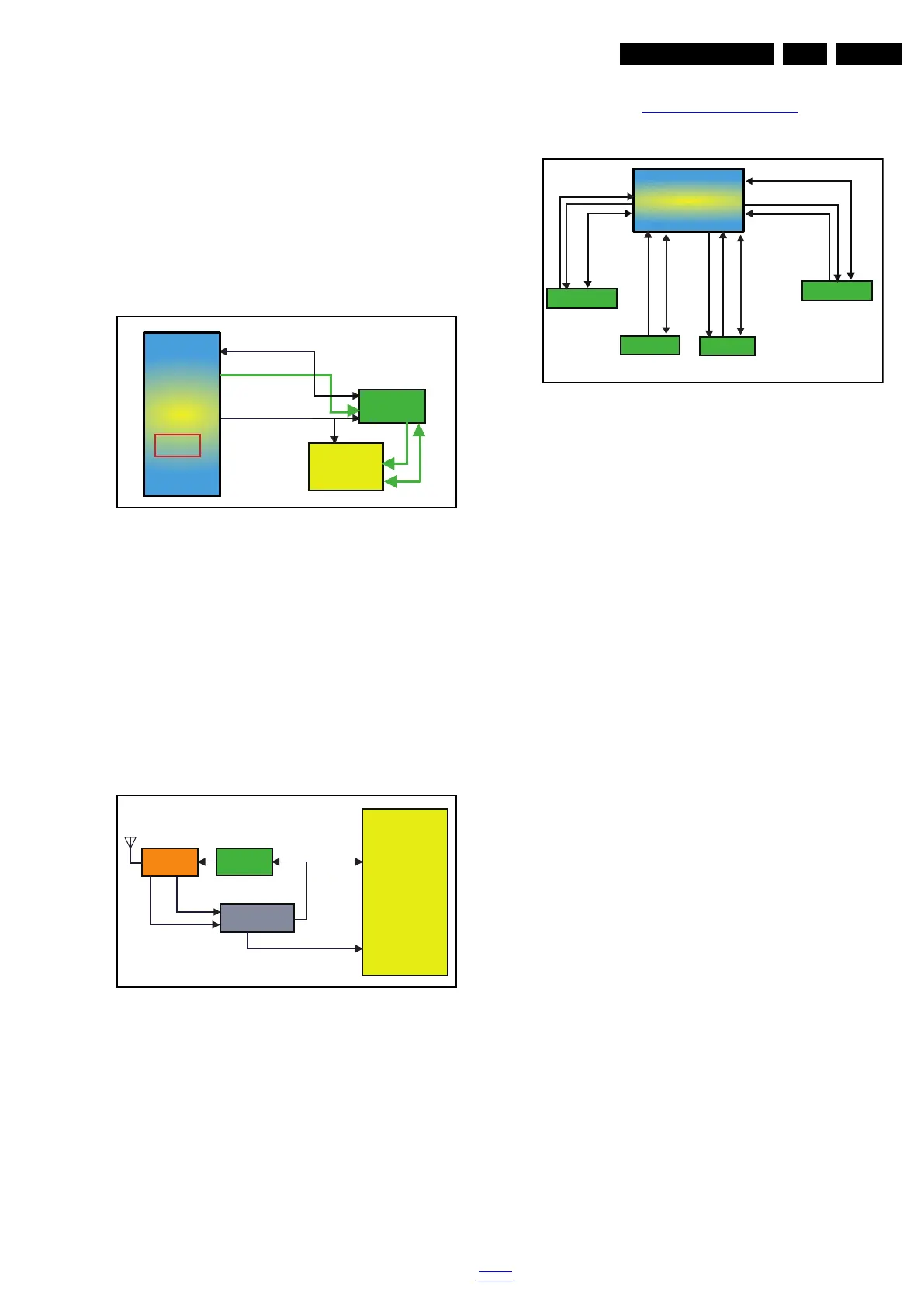

Below find a block diagram of the front-end application for DTV
part.
Figure 7-7 Front-End DVB-T2 DTV block diagram
7.4.3 Front-End DTV-S2 reception
The Front-End for ISTB part consist of the following key
components:
• TUNER EUROPE SUT-RE231ZN
• SCALER MT5596LGIJ HSBGA-757
• DEMODULATOR CXD2837ER-T4 VQFN 48
Below find a block diagram of the front-end application for DTV
part.
Figure 7-8 Front-End DVB-S2 DTV block diagram
7.5 HDMI
Refer to figure 7-9 HDMI input configuration for the application.
Figure 7-9 HDMI input configuration
The following HDMI connector can be used:
• HDMI 1: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC
• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/ARC
• HDMI 3: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC
• HDMI 4: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC
• +5V detection mechanism
• Stable clock detection mechanism
•HPD control
• Sync detection
• TMDS output control
• CEC control
• ARC control
•MHL control
7.6 Video and Audio Processing - MT559 6LGIJ
HSBGA-757
The MT5596LGIJ HSBGA-757 is the main audio and video
processor (or System-on-Chip) for this platform. It has the
following features:
• worldwide multi-standard analo g TV demodulator
• ATSC /DVB-T /DVB-C/DTMB demodulators
• Ture 120HZ Full HD MJC
• Power CPU core
• 3D graphic support OpenGL ES 1.1/2.0
• A muti-standard video decoder
• A transport de-multiplexer
• One HDMI 2.0 receiver with 3D support
• MHL2.0& Standby charging
• 2D/3D converter
• Rich format audio codec
• Local dimming (LED backlight)
• Ethernet MAC+PHY
•TCON
• Panel overdrive control
• Four-link LVDS, mini-LVDS,V-by-one, EPI
The MT5596L family provides consumers with aUHD 60HZ
direct drive.
The MT5596L family consists of a DTV front-end demodulator,
a backend decoder and a TV controller and offers high
integration for advanced applications. It integrates a transport
de-multiplexer, a high definition video decoder, an audio
decoder, a four-link LVDS transmitter, a mini-LVDS transmitter,
a V-by-one transmitter, an EPI transmitter, and an
NTSC/PAL/SECAM TV decoder with 3D
combfilter(NTSC/PAL).
IF
IF-AGC
TS DATA
RF_AGC
MT5596L
DECODER
CXD2837ER
IF_AGC
SUT-RE231ZN
I
2
C
I
2
C
I
2
C
20110_204.eps
TS DATA
IP/IN/OP/ON
Tuner I2C
Tuner I2C
System I2C
MT5596L
LNB power
S2 Demond
CXD2837ER
S2 tuner
S2 function
20110_205.eps
20110_206.eps
MT5596L
HDMI2
HDMI1
HDMI4
CN502
CN504
CN501
RX
RX
TX
TX
TX
RX
I
2
C
I
2
C
I
2
C
HDMI3
CN503
RX
I
2
C
