Philips 49PFL4909 - Page 10

3
× 2
M4 x 0.393” (10mm)
4
40PFL4609 / 32PFL4609 / 28PFL4609
1
2
1
2
× 3
3
32PFL4909 / 28PFL4909
1
× 2
2
2
1
3
× 1
4

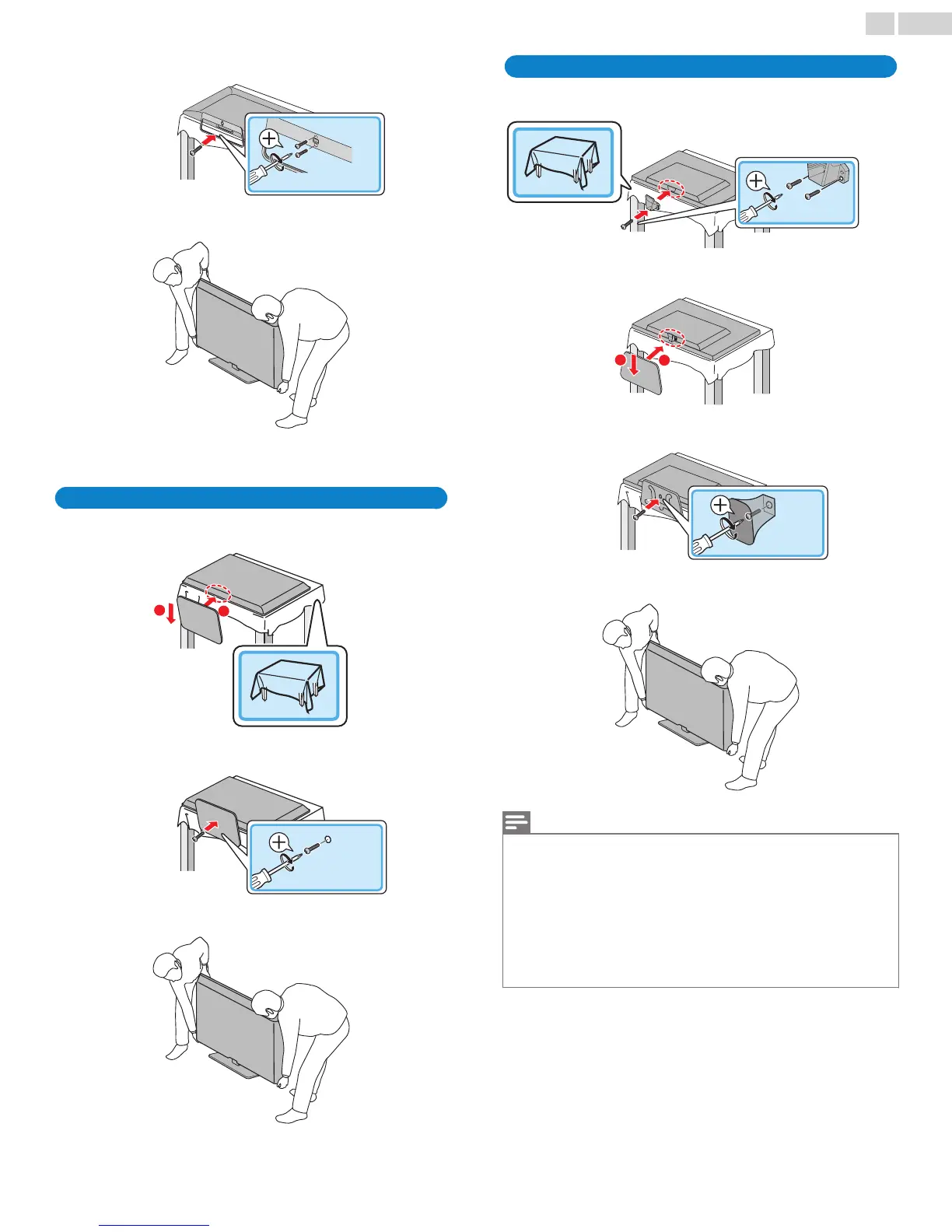

Note(s)
●
Make sure to use a table which can support the weight of this Unit and is larger than this
Unit.
●
Make sure the table is in a stable location.
●
When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of
the base is downward.
●
When attaching the base, ensure that All Screws are tightly fastened. If the base is not
properly attached, it could cause the Unit to fall, resulting in injuries as well as damage to
the Unit.
●
To remove the base from this Unit, unscrew the Phillips head screws by the reverse
procedure. Be careful not to drop the base when you remove it.
10 .English
