4-6 PL11.9-A_DC

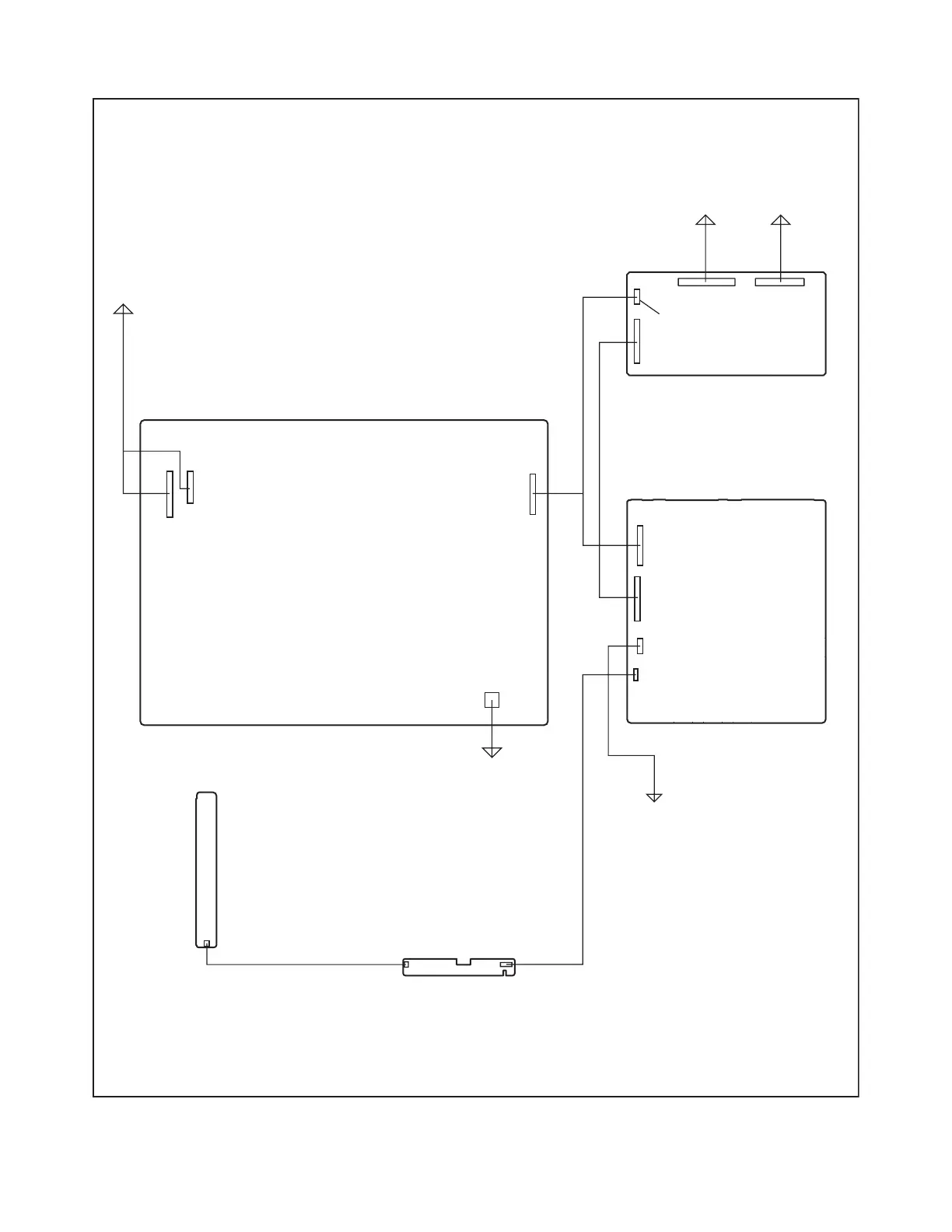

TV Cable Wiring Diagram
Power Supply CBA
FRC CBA Unit
CN4001
CN4051
CN4052
Function
CBA Unit
IR Sensor CBA Unit
To LCD Module
Assembly
To AC Inlet
CN1914
CN1913
CN1801
CN1601
CN5003
CN5004
CN5002
CN5001
Digital Main CBA Unit
CN3101
CN3901
CN3801
CN3102
To Speaker
To LCD Module
Assembly
Fig. D5
