5-2 PL11.6EA
The White Balance Adjustment should be
performed when replacing the LCD Panel
or Digital Main CBA.
Do not use the color analyzer for this
model.
Make sure to use the color meter or
spectroradiometer.
Otherwise, you will not be able to run the
proper White Balance Adjustment for this
model.
2. White Balance Adjustment
Purpose: To mix red and blue beams correctly for
pure white.
Symptom of Misadjustment: White becomes bluish
or reddish.
1. Operate the unit for more than 60 minutes.
2. Enter the service mode.
3. Press [VOL -] button three times on the remote
control unit to select “Drive setting” mode. “Drive”
appears in the screen.

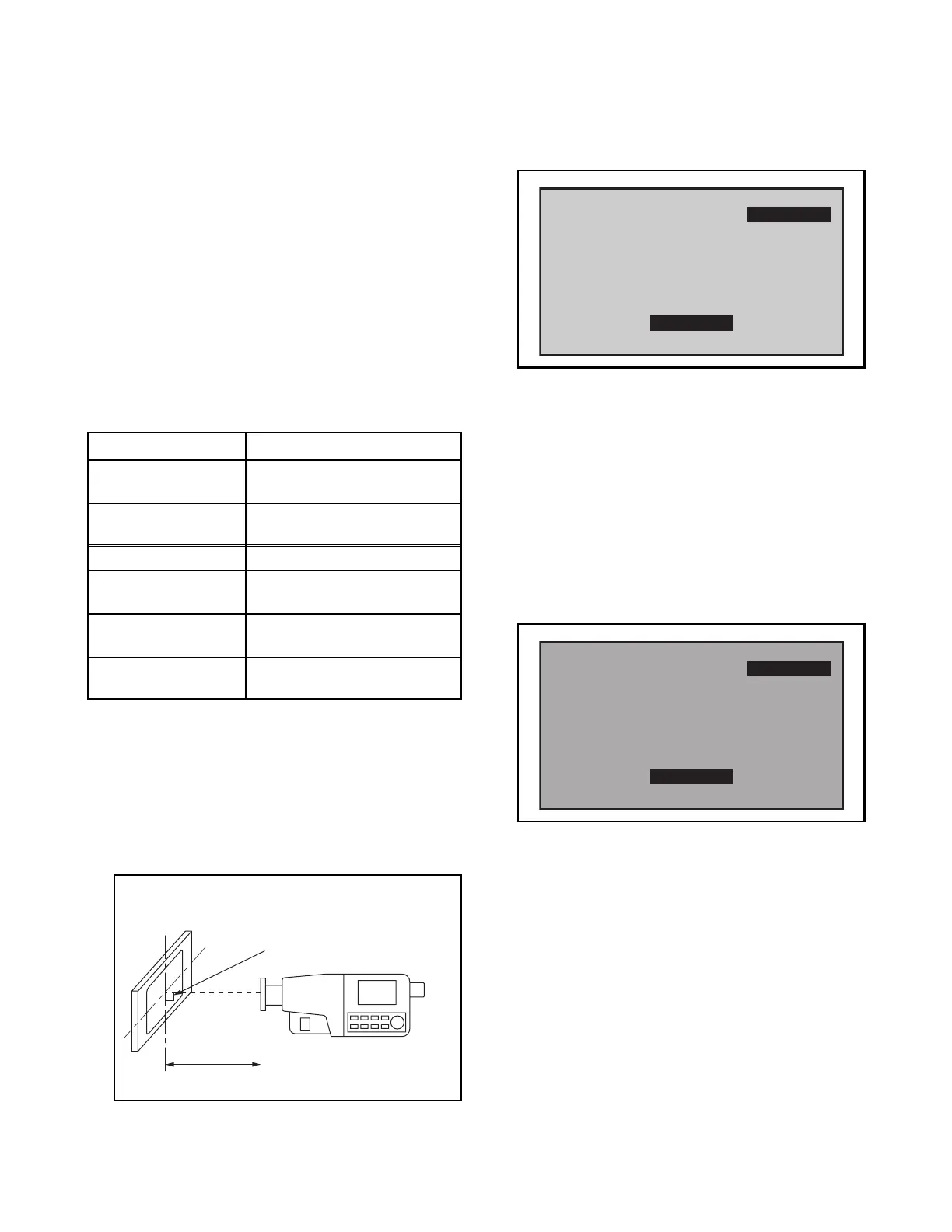

4. Set the color meter or spectroradiometer as shown
below.
Note: The color meter or spectroradiometer must
be set perpendicularly to the LCD Panel surface.
5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears in the screen.)
6. Press [MENU] button. The internal Raster signal
appears in the screen. (“Internal(Single)” appears
in the upper right of the screen as shown below.)
7. Press [CH + or -] buttons to adjust the color
temperature becomes 12000°K
[x= 0.272 ± 0.010 (±4%)/ y= 0.278 ± 0.012 (±4.5%)]
.
8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears in the screen.)
and press [CH + or -] buttons to adjust the color
temperature.
9. If necessary, adjust the “HDB” or “HDR” again.
10. Press [6] button to select the “MDB” for Middle
Drive Blue adjustment (“MDB” appears in the
screen.) and press [CH + or -] buttons to adjust the
color temperature.
11. Press [4] button to select the “MDR” for Middle
Drive Red adjustment (“MDR” appears in the
screen.) and press [CH + or -] buttons to adjust the
color temperature.
12. If necessary, adjust the “MDB” or “MDR” again.
ITEM
SPECIFICATION
Color temperature
x= 0.272 ± 0.010 (±4%)
y= 0.278 ± 0.012 (±4.5%)
Input Signal
Internal pattern
(30/50/70% raster)
Measurement point Screen center
M. EQ.
Color meter or
Spectroradiometer
MODE setting of TV
Shipment setting/
Retail MODE
Ambient
temperature
25°C ± 5°C
Color Meter
L = 13.78 inches over
Perpendicularity
To avoid interference from ambient
light, this adjustment should be
performed in a dark room.
Internal(Single)
HDB 0
Internal(Single)
MDB 0
To Next Page
