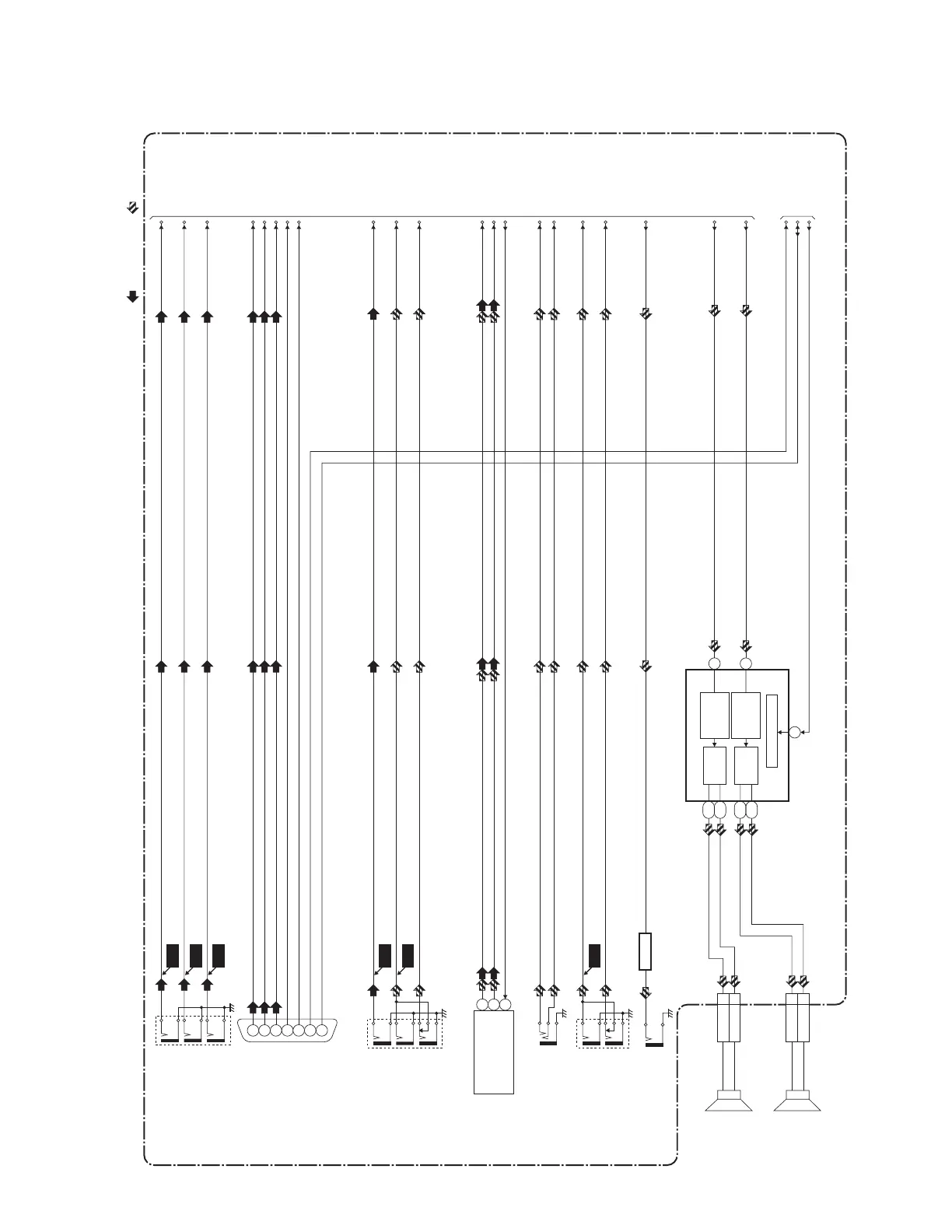

2. Video/Audio Block Diagram
COMPONENT- AUDIO(L)-IN COMPONENT- AUDIO(R)-IN
JK3704
HDMI/PC- AUDIO-IN JK3710
DIGITAL MAIN CBA UNIT
3
IC3801 (AUDIO AMP)
9
4
23,24 13,14 47,48 37,38
MUTE CONTROL
CN3801
SP3801 SPEAKER L-CH
CN3801
SP(R)-
1
SP3802 SPEAKER R-CH
PWM GENE. /GAIN CTL PWM GENE. /GAIN CTL
DRIVE1
JK3711 DIGITAL AUDIO-OUT (COAXIAL)
Q3001
BUFFER
SP(R)+
2
SP(L)-
3
SP(L)+
4
DRIVE2
SPDIF
TO SYSTEM CONTROL BLOCK DIAGRAM
COMP-AUDIO(L)-IN
HDMI/PC-AUDIO(L)-IN
HDMI/PC-AUDIO(R)-IN
COMP-AUDIO(R)-IN
AUDIO SIGNAL
WF1 WF2 WF3 WF4 WF5 WF5
AMP(R)
AMP-MUTE
AMP(L)
COMPONENT -Y-IN COMPONENT -Pb-IN COMPONENT -Pr-IN
VIDEO-IN AUDIO(L)-IN AUDIO(R)-IN
JK3701
TU3001
DIF-OUT1
6
DIF-OUT2
7
(TUNER UNIT)
IF-AGC
5
DIF-OUT1
CVBS-AUDIO(R)-IN
CVBS-AUDIO(L)-IN
CVBS-IN
DIF-OUT2
IF-AGC
COM-VIDEO-Y-IN
COM-VIDEO-Pr-IN
COM-VIDEO-Pb-IN
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
JK3713 PC-RGB IN
1 2 3
13 14 15 12
VGA-R-IN
VGA-G-IN
VGA-B-IN
VGA-HSYNC
VGA-VSYNC
VGA-SCL
VGA-SDA
VIDEO SIGNAL
JK3706
