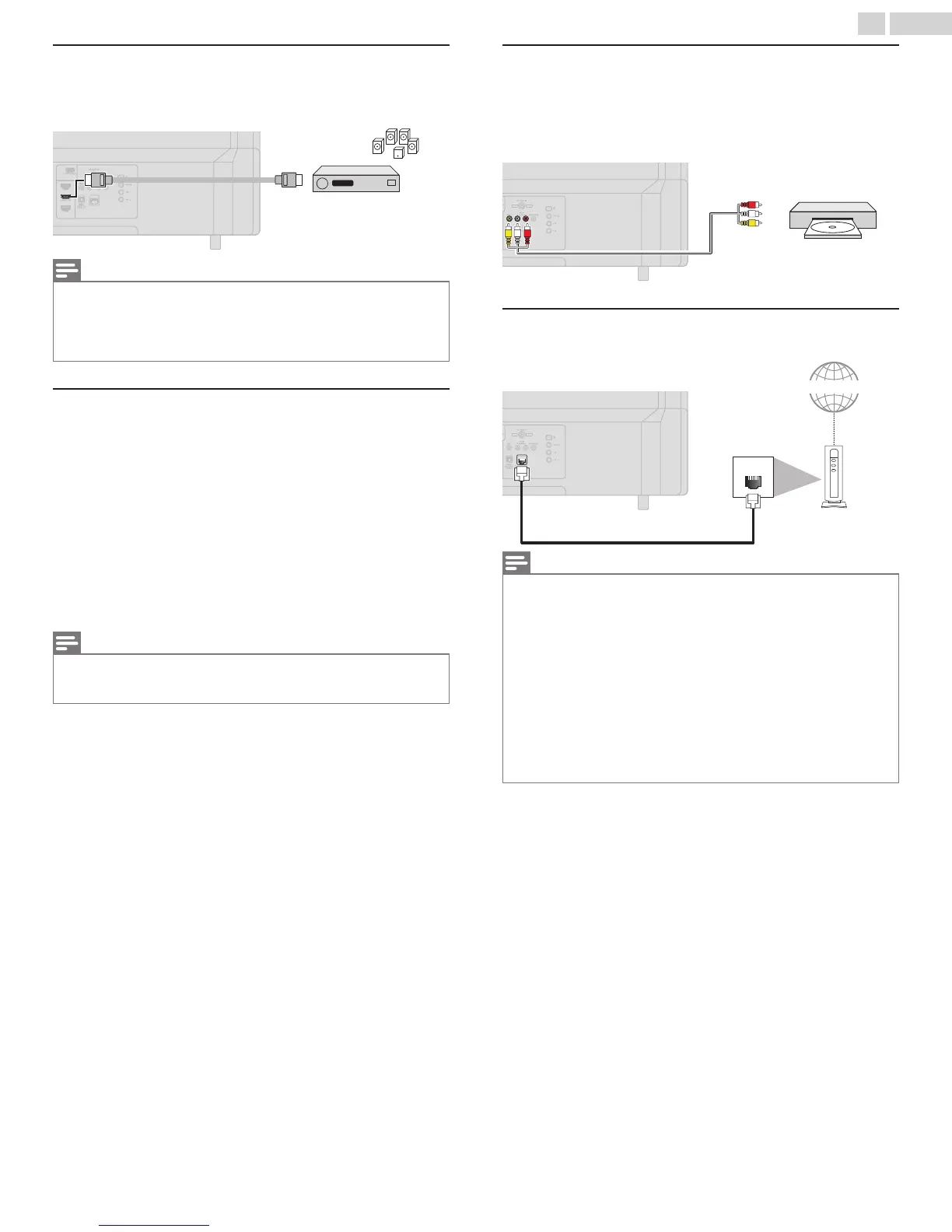

HDMI-ARC connection
HDMI-ARC allows you to use HDMI control to output TV audio directly
to a connected audio device, without the need for an additional digital
audio cable.
HDMI cable
Digital home theater
amplifier that supports
HDMI-ARC
HDMI 2 IN only OUT
Note(s)
●
The HDMI 2 connector is HDMI Audio Return Channel (ARC) compliant. Use
it to output digital audio to an HDMI home theater system.
●
Be sure that the device is HDMI CEC and ARC compliant and that the TV is
connected to the device using an HDMI cable attached to HDMI-ARC
connectors.
HDMI EDID Version
If there are issues with picture/color and/or sound when connecting
an external device using the HDMI port, please try switching the HDMI
mode following the instructions below.
1
Press x (HOME) to display the Home menu.
2
Use H I J K to select Settings, then press OK.
3
Use H I to select Inputs, then press OK.
4
Scroll down to HDMI EDID Version and select HDMI1, HDMI2
(ARC) or HDMI3, then press OK.
5
Select EDID 2.0 for 4K@60 Hz or HDR signals. Select EDID 1.4 for
legacy devices that output 4K@30HZ or less with no HDR.
Note(s)
●
EDID 1.4 is used for legacy devices that can output in 2K or 4K @30Hz.
EDID 2.0 is used for modern devices that can output 4K @ 60Hz and 4K
with HDR 10.
Composite analog video connection
Composite analog video connection offers standard picture quality
for video devices connected to the unit.
If you connect to the unit’s composite video (VIDEO) input jack,
connect audio cables to the audio (L/R) input jacks. When the audio
is monaural, then only connect to the audio L input jack.
Video + Audio (L/R)
cables
DVD player
IN
OUT
Connecting the TV to the internet using an Ethernet
cable
Internet
LAN
Ethernet cable
Network provisioning
equipment
Note(s)
●
Please purchase shielded Ethernet cables at your local store and use them
when you connect to network equipment.
●
After connecting an Ethernet cable, set up necessary network settings.
Network L p. 22
●
Do not insert any cable other than an Ethernet cable to the Ethernet port to
avoid damaging the unit.
●
If your telecommunications equipment (modem, etc.) does not have
broadband router functions, connect a broadband router.
●
If your telecommunications equipment (modem, etc.) has broadband router
functions but there is no vacant port, then add a hub.
●
For a broadband router, use a router which supports 10BASE-T / 100BASE-
TX.
●
Do not connect your PC directly to the Ethernet port of this unit.
15 .English
Continued on next page.
