Mechanical Instructions
EN 25QM15.2E LA 4.
2015-Sep-30
back to
div.table
4.5 Assembly/Panel Removal (for 65"PFx6520
series)
Instructions below apply to the 65PFH6520/88, but will be
similar for other 65"PFx6520 series models.
4.5.1 Stand
Refer to Figure 4-28
for details.
1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-28
for details.
2. Take the stand bracket out from the set.

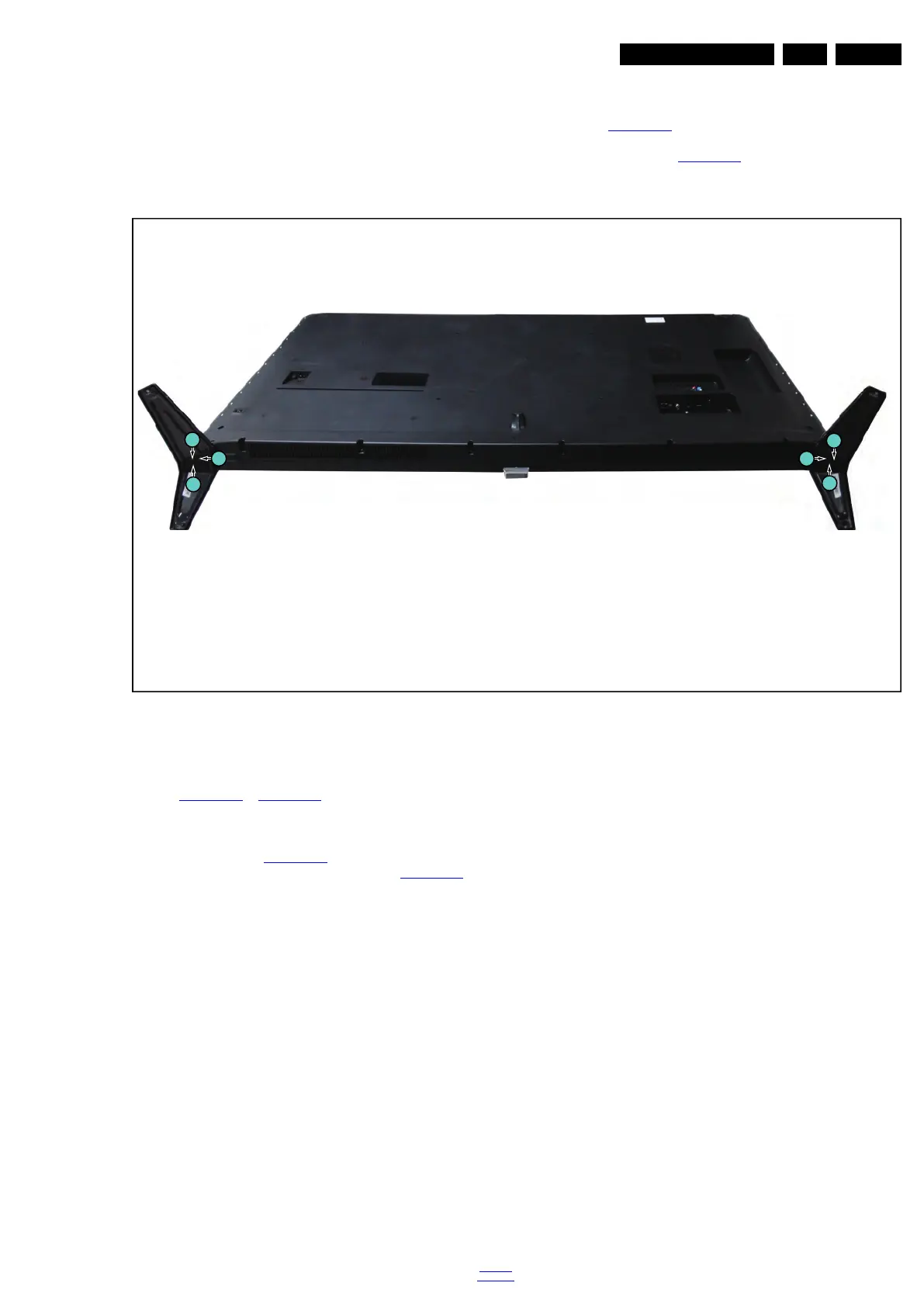

Figure 4-28 Stand removal
4.5.2 Rear Cover
Refer to Figure 4-29
& Figure 4-30 for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove the fixation screws [1], [2] and [3] that secure the
rear cover. Refer to Figure 4-29
for details.
2. Unplug the connector [4] from SSB. Refer to Figure 4-30
for details.
3. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.
19883_101.eps
1
1
1
1
1
1
