4.3.4 IR/LED Board
Refer to Figure 4-11
and Figure 4-12 for details.
1. Remove the fixation screws [1] from the stand bracket, pull
out the assy from the set. Refer to Figure 4-11
for details.
2. Carefully Releas the cover secured by clips, then unplug
the connector [2] from the IR/LED board. The IR/LED
Board can now be lifted and taken out from the cover. Refer
to Figure 4-12
for details.

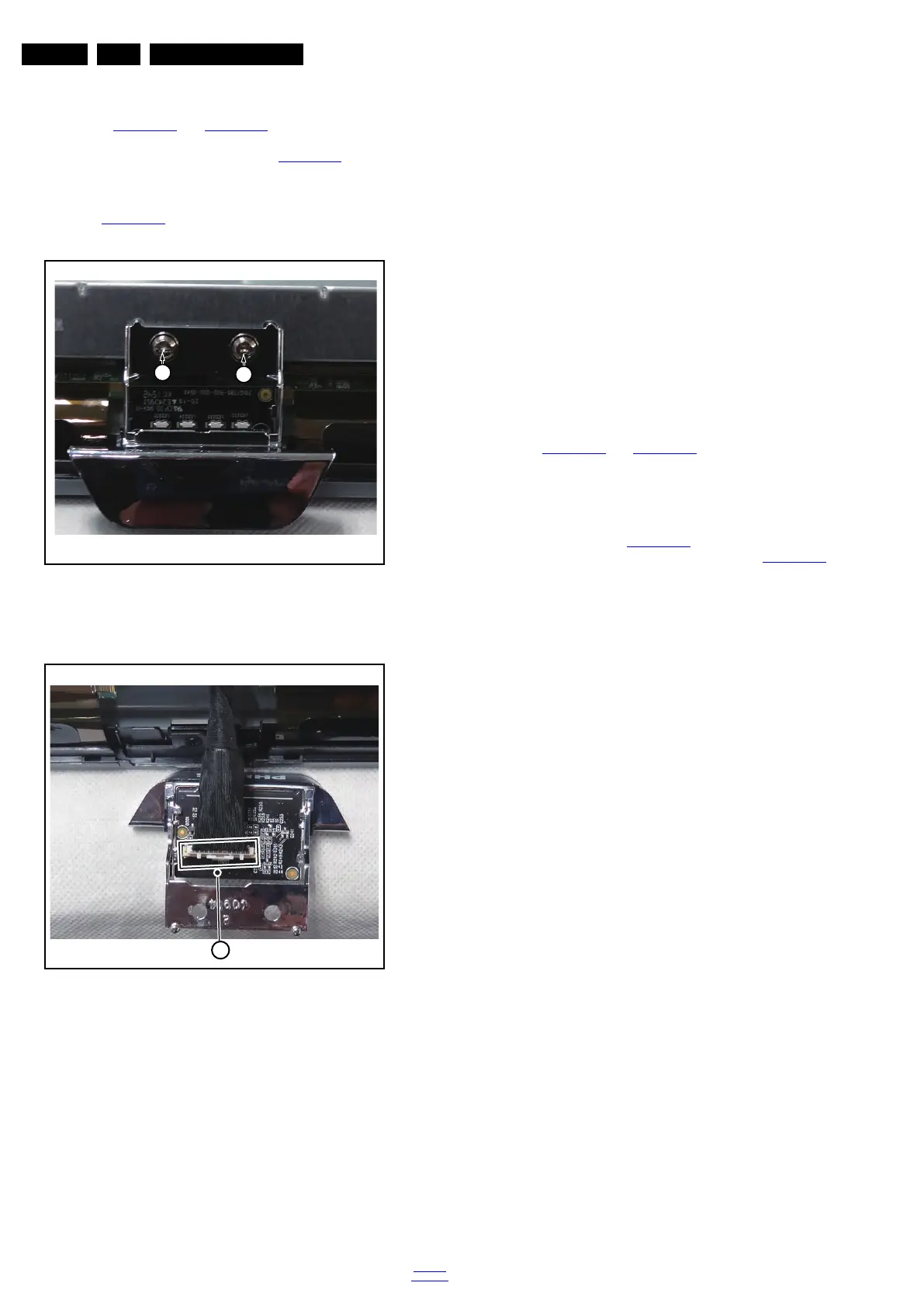

Figure 4-11 IR/LED Board removal[1]
Figure 4-12 IR/LED Board removal[2]
4.3.5 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
4.3.6 Speakers
1. Gently release the tapes that secure the speaker cables.
2. Unplug the speaker connector from the SSB.
3. Take the speakers out.
When defective, replace the both units.
4.3.7 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the keyboard control panel as described earlier.
4. Remove the stand bracket as described earlier.
5. Remove the IR/LED as described earlier.
6. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.
7. Remove all other metal parts not belonging to the panel.
8. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
4.4 Assembly/Panel Removal(for 6201series)
Instructions below apply to the 43PUS6201/12, but will be
similar for other 43"/55"PUx6201 series models.
4.4.1 Rear Cover
Refer to Figure 4-13
and Figure 4-14 for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull
out the base assy from the set.
2. Remove the fixation screws [2], [3] and [4] that secure the
rear cover. Refer to Figure 4-13
for details.
3. Unplug the connector [5] from SSB. Refer to Figure 4-14
for details.
4. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.
