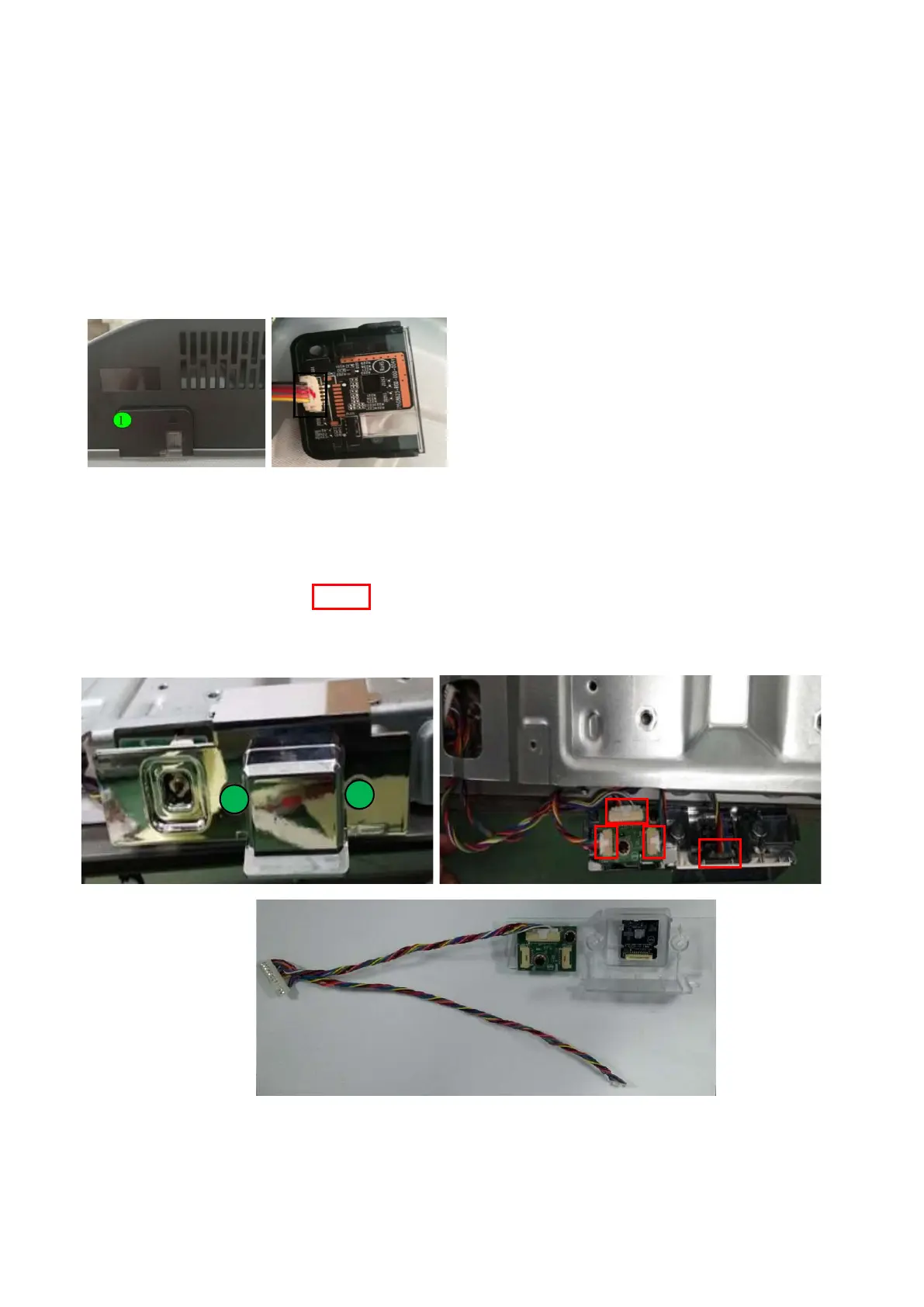

3.2.2 IR board Control Unit
Common:
1. Unplug the connector from the SSB.
Caution: be careful, as these are very fragile connectors!
2. Remove all the fixation screws [1] and connector from the IR board control unit.
3. Remove the IR lens, IR board from the DECO_REAR_COVER.
When defective, replace the whole unit.
OLED 973 Series:
1. Remove all the fixation screws [1] and connector from the DECO ASS’Y.
2. Remove lens, take out IR board & Key board.
When defective, replace the whole unit.
