Philips 55PUS7303/12

7.2 Power Supply

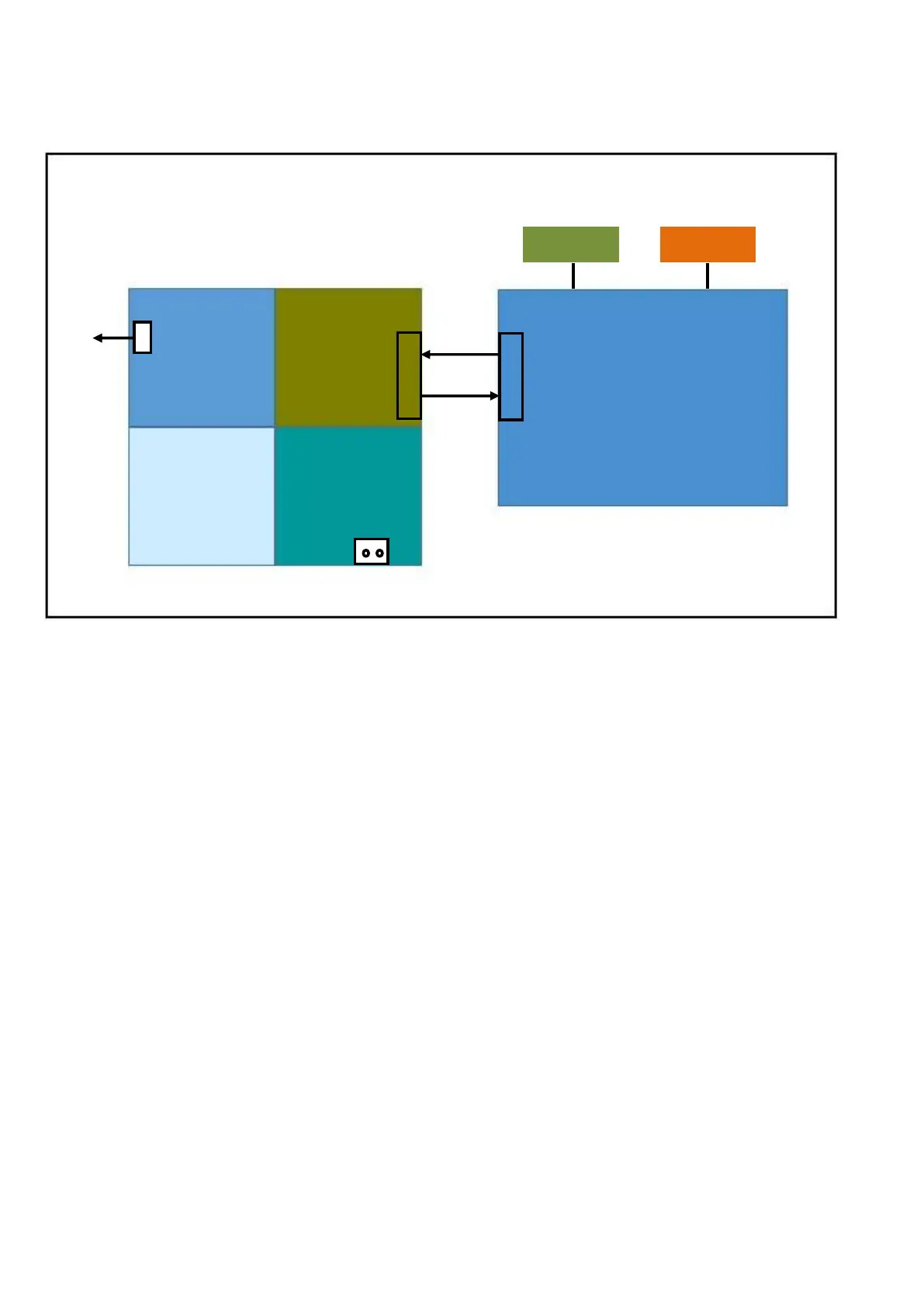

Power architecture of this platform.
Platform
MT5596
CN1190
12V
24V for 715G9058M
12V
AUDIO
AMP
LVDS
Display power
CN8601
CN8603 for 715G9324P
CN9201 & CN9102 for
715G8886P/715G9106P
Platform power
DIM
ON/OFF
PS_ON
12V
12V_A
24V_A
3.5_STB
PFC
AC-input +
Main filter
AC IN
