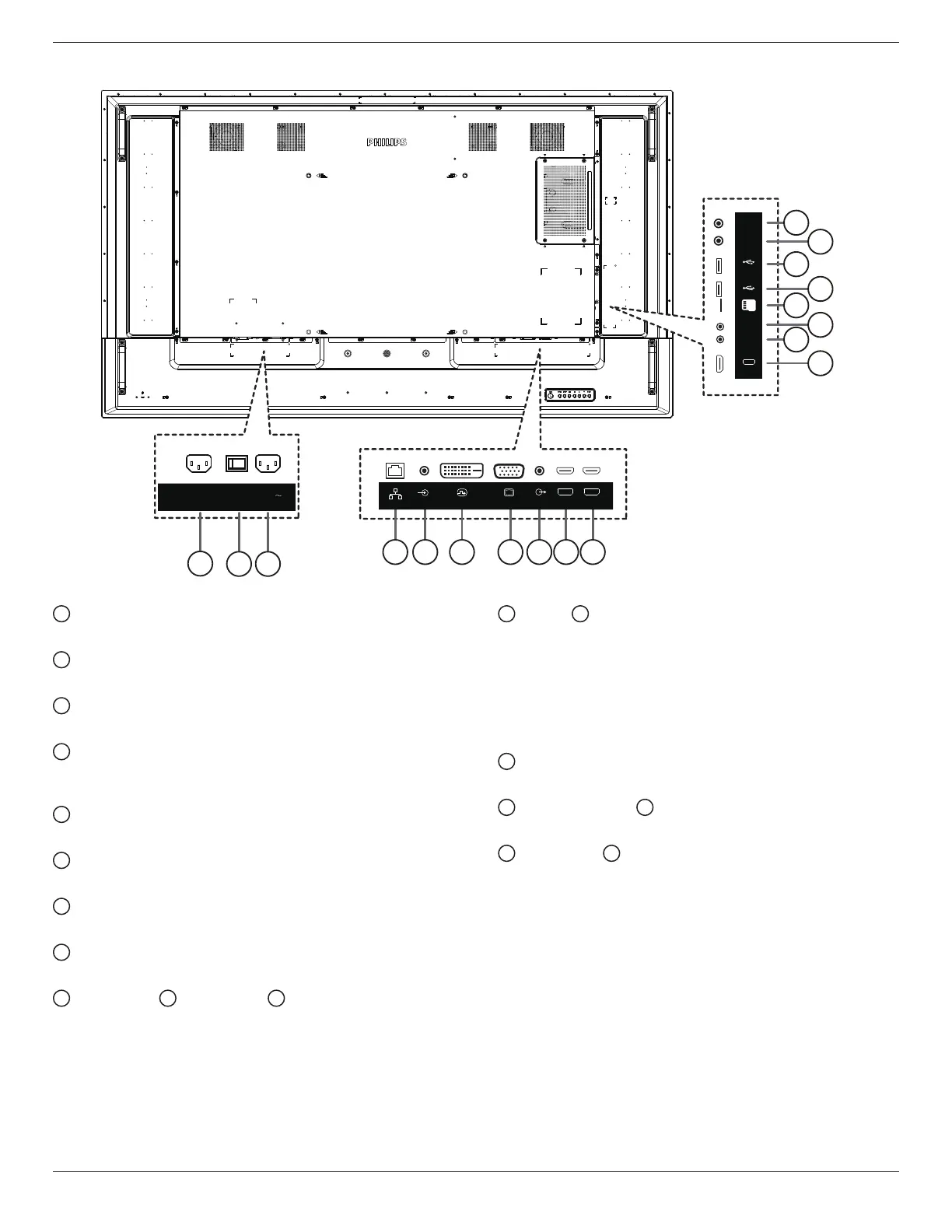

2.2. Input/Output Terminals
4
5
6 7 98 10
HDMI1 IN
HDMI2 IN
AUDIO OUT
DVI-D IN
RJ45
PC LINE IN
VGA IN
11
12
14
16
18
13
15
17
HDM3 IN
USB2.0
USB2.0
MICRO SD
RS232
OUT
RS232
IN
IR-IN
IR-OUT
100-240V
50/60Hz 2.5A
1
32
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
AC OUT
AC power supply to the AC IN jack of a media player.
4
RJ-45 IN
LAN control function for the use of remote control signal
from control center.
5
PC LINE IN
Audio input for VGA source (3.5mm stereo phone).
6
DVI IN
DVI-D video input.
7
VGA IN
VGA video input.
8
AUDIO OUT
Audio output to external AV device.
9
HDMI1 IN /
10
HDMI2 IN /
11
HDMI3 IN
HDMI video/audio input.
12
IR IN /
13
IR OUT
IR signal input / output for the loop-through function.
NOTES:
• This display’s remote control sensor will stop working
if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 14 for IR Pass Through connection.
14
Micro SD card slot
Insert a micro SD card.
15
USB 2.0 PORT/
16
USB 2.0 PORT
Connect your USB storage device and service port.
17
RS232 IN /
18
RS232 OUT
RS232 network input / output for the loop-through
function.
